Moog 513267 - Honda Pilot Front Wheel Bearing Hub Assembly 2009-2015

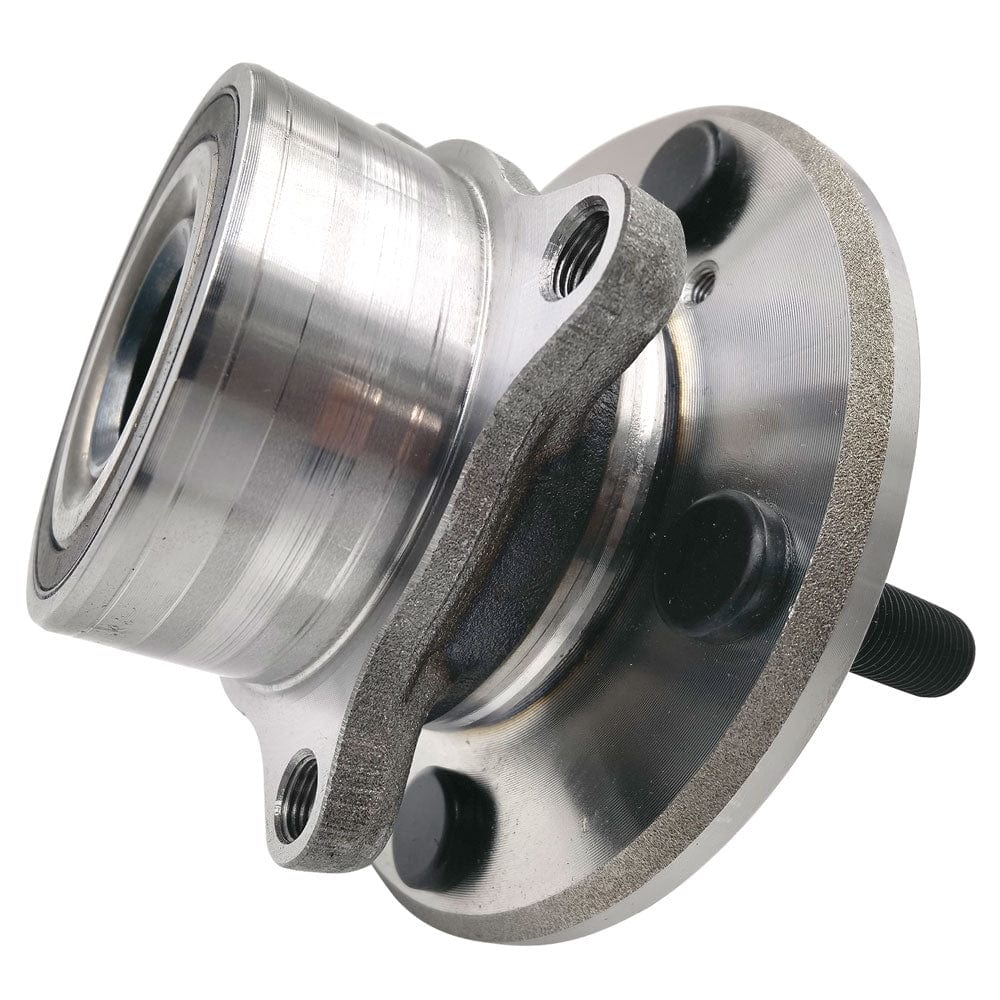

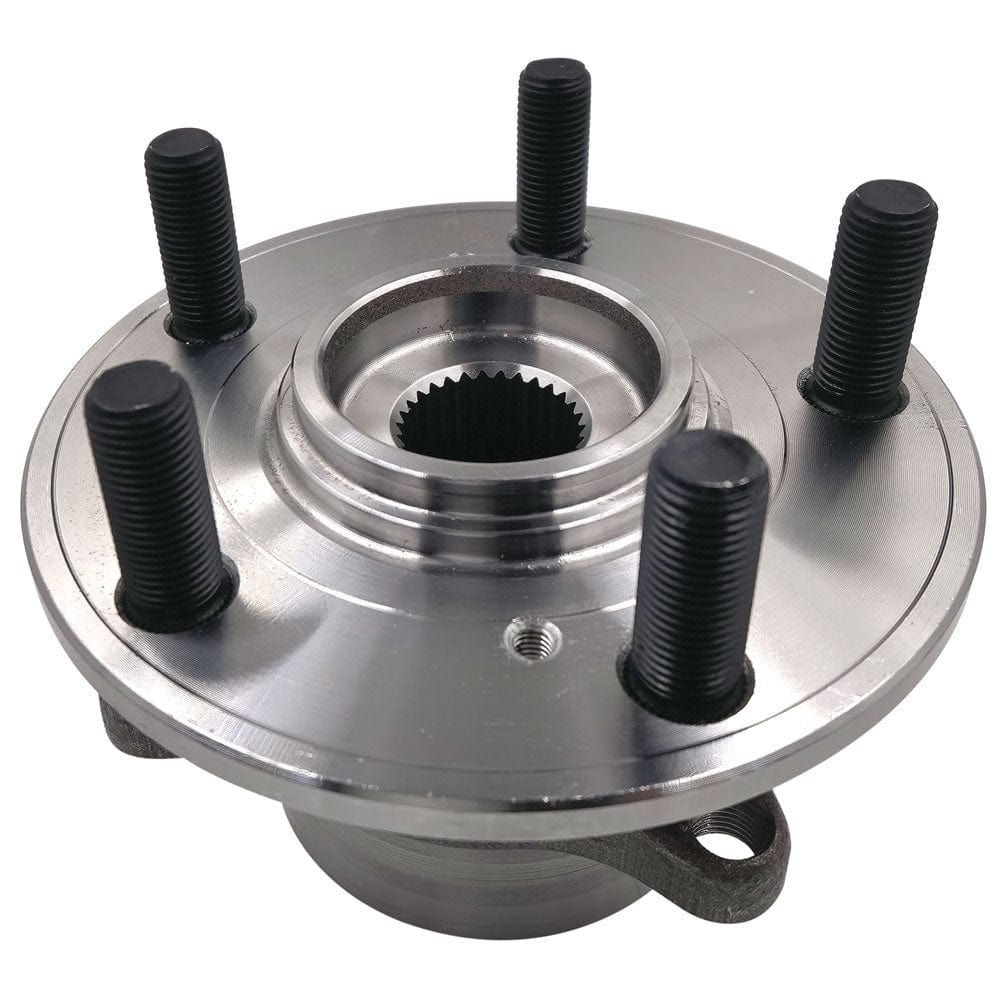

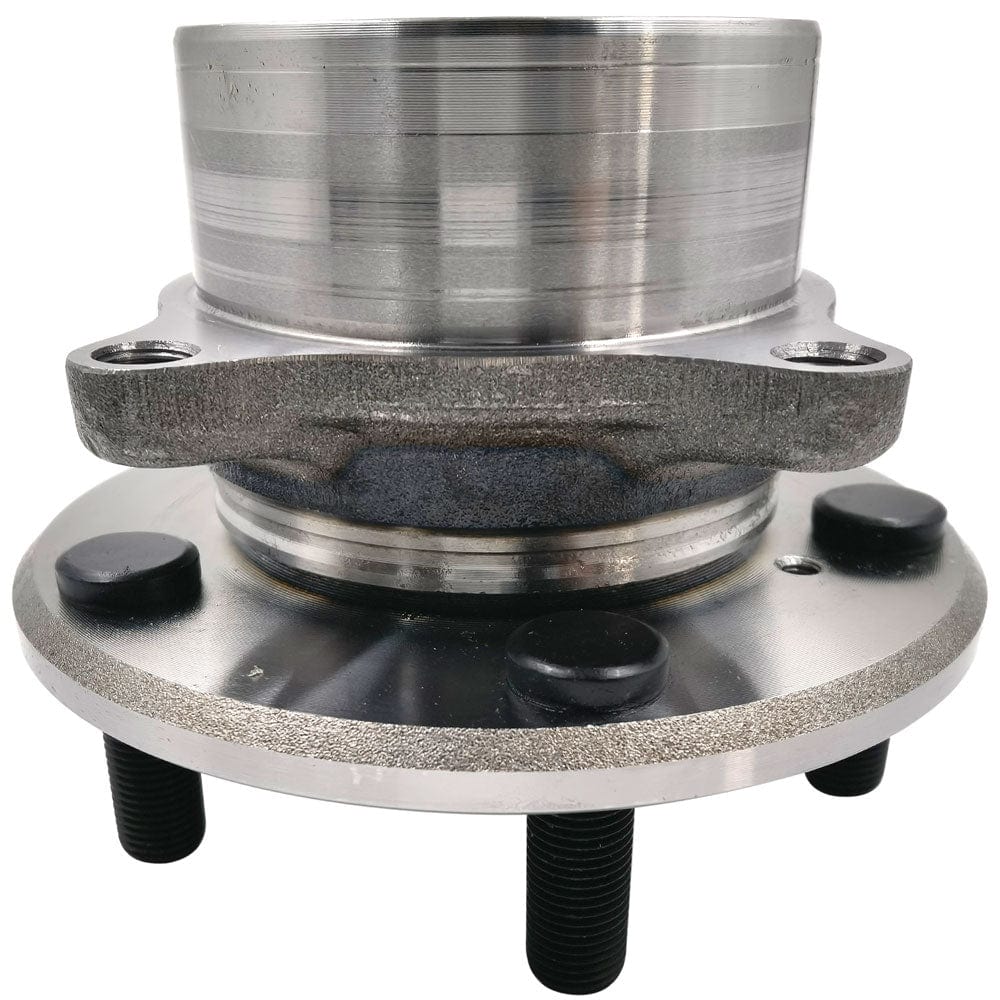

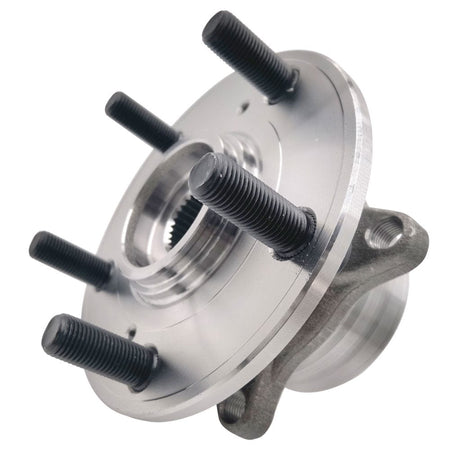

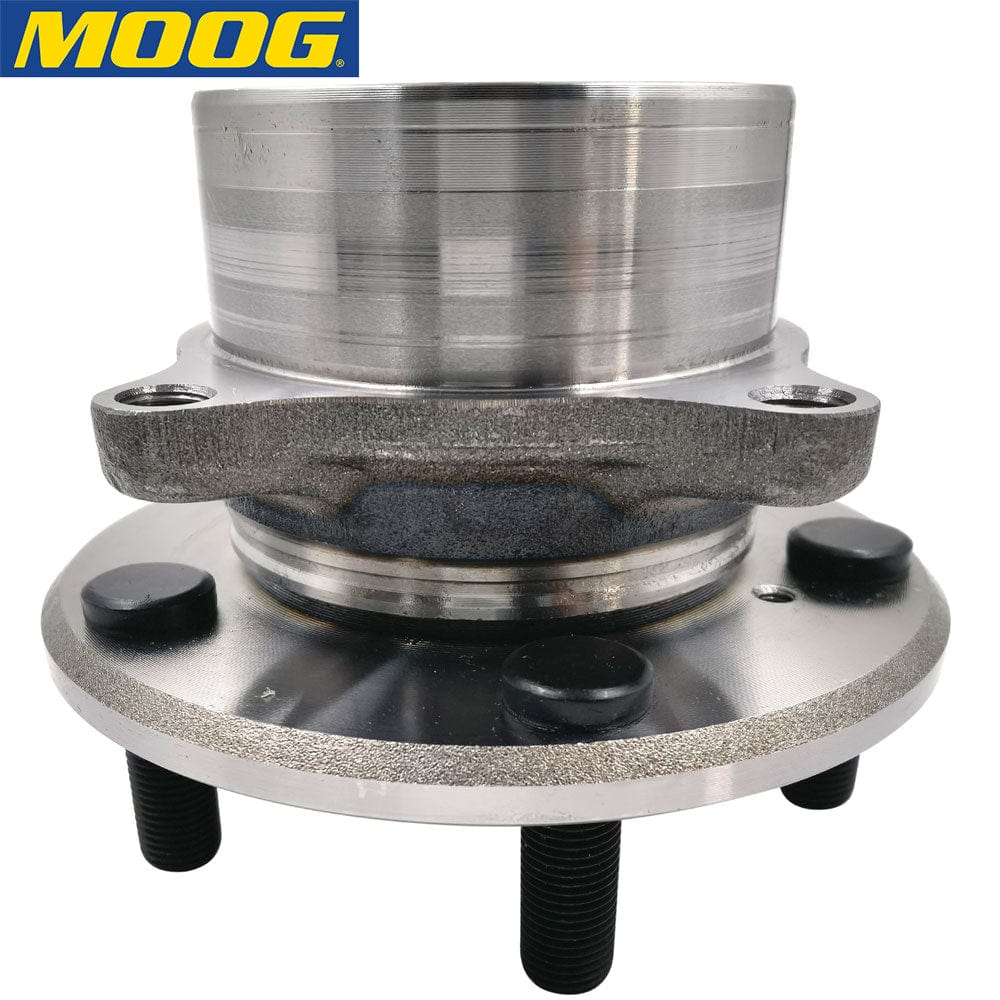

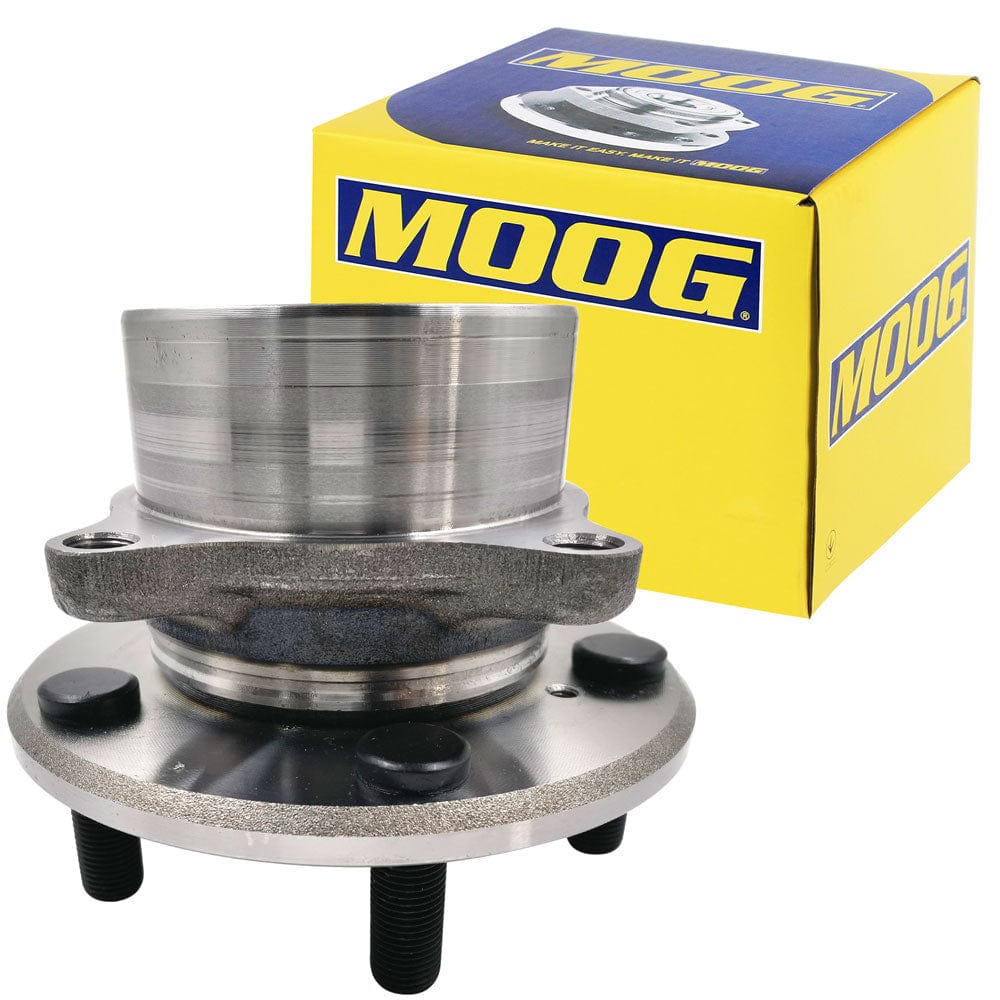

Moog 513267 Front Wheel Bearing Hub Assembly

Front wheel bearing hub assembly with magnetic ABS ring. Designed for driven wheels with 30 splines and steel ball bearing for durability and performance.

What's Included

• 1 x Front Wheel Bearing Hub Assembly (Part Number: 513267)

Product Specifications

• Number Of Mounting Bolts To Knuckle: 4
• Number Of Lug Bolts Included: 5
• Driven Or Non-Driven: Driven
• Number Of Splines: 30
• ABS Ring Type: Magnetic
• Lug Bolt Thread Size: M14-1.50
• Total Hub Diameter (in): 5.971 Inch
• Total Hub Diameter (mm): 151.663 mm
• Total Hub Height (in): 4.65 Inch
• Total Hub Height (mm): 118.11 mm
• Flange Diameter (in): 5.971 Inch
• Flange Diameter (mm): 151.66 mm
• Flange Offset (in): 1.862 Inch
• Flange Offset (mm): 47.295 mm
• Hub Pilot Diameter (in): 3.493 Inch
• Hub Pilot Diameter (mm): 88.722 mm
• Flange Shape: Rectangle
• Flange Bolt Thread Size: M12-1.25
• Material: Steel
• Bearing Type: Ball

Vehicle Compatibility
