Moog 513267 - Honda Pilot Front Wheel Bearing Hub Assembly 2009-2015
Regular price
$56.95
Regular price
$66.95
-15%
Sale price
$56.95

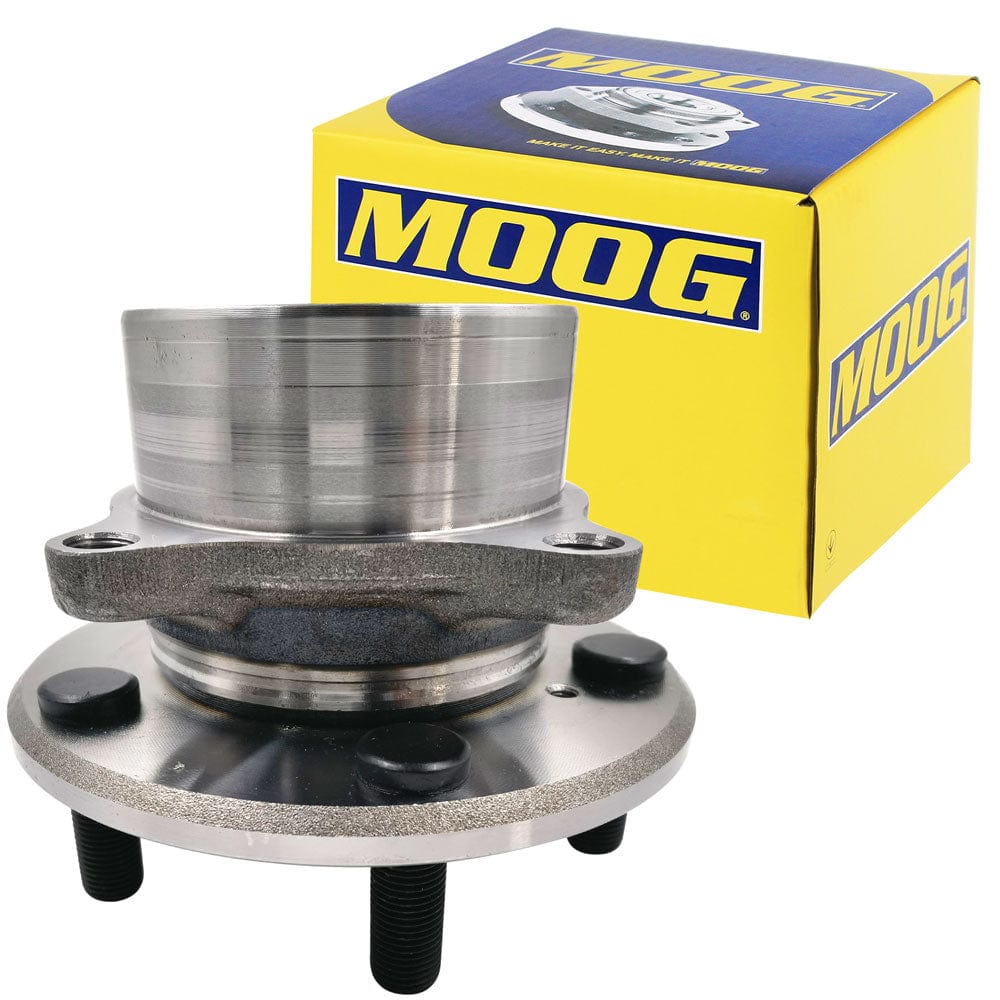

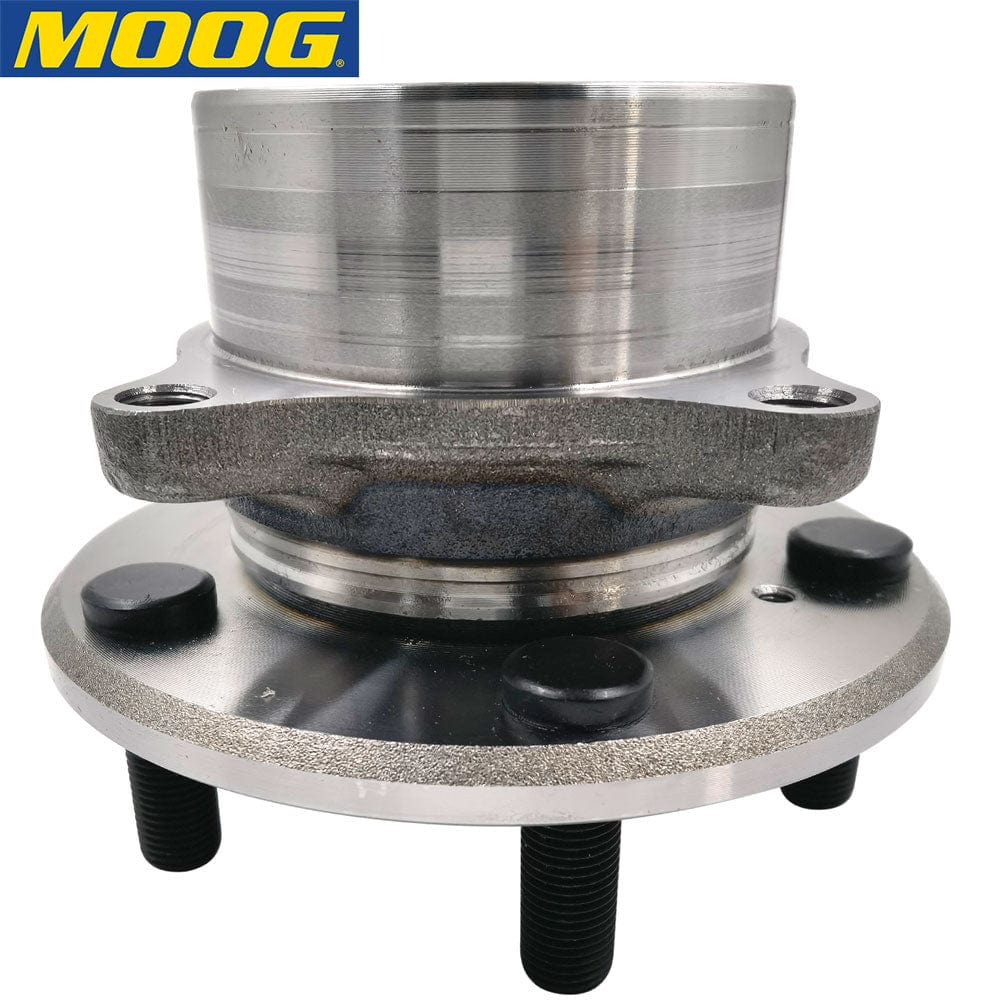

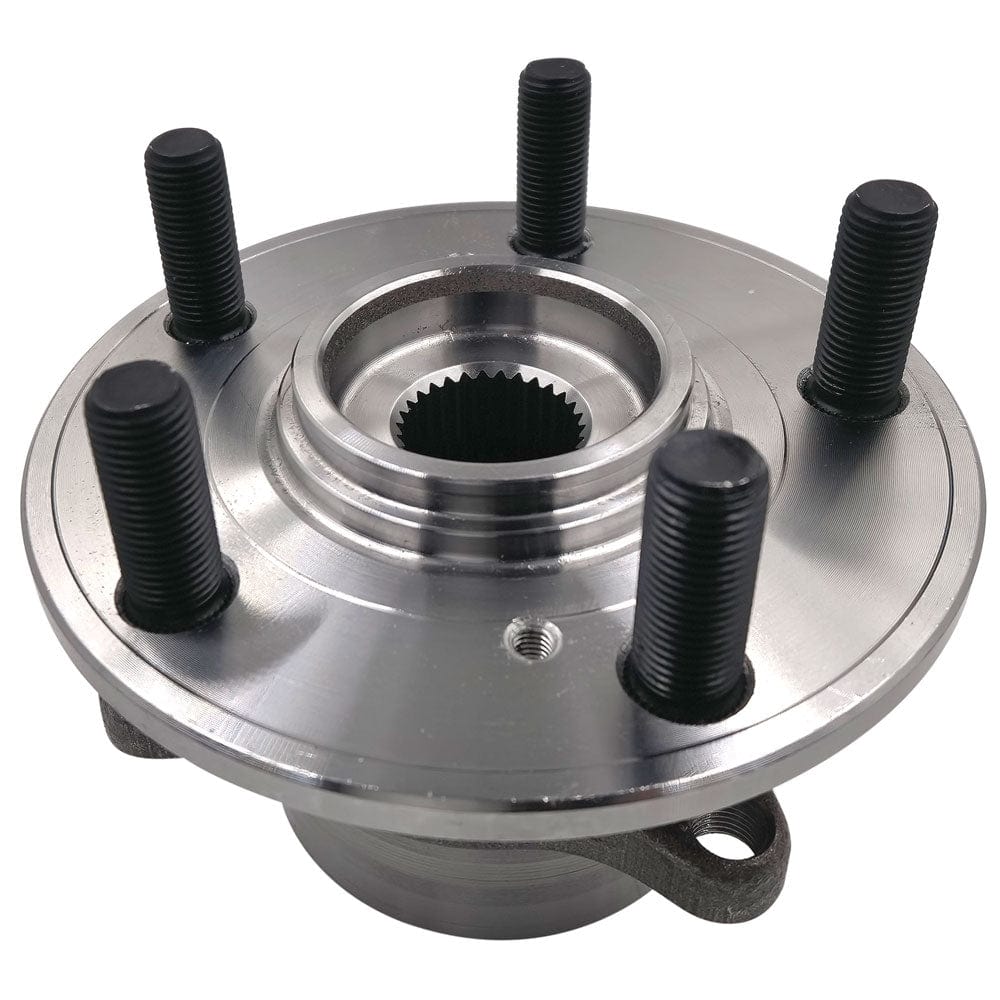

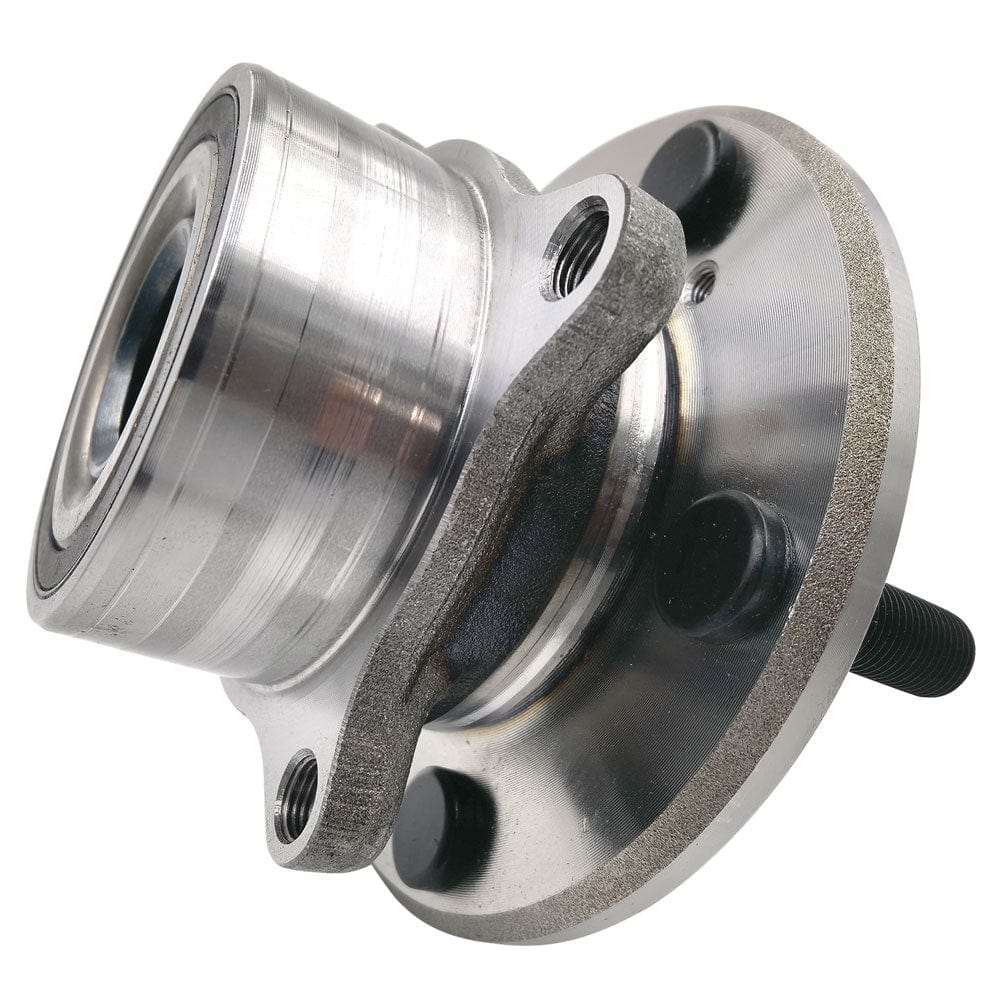

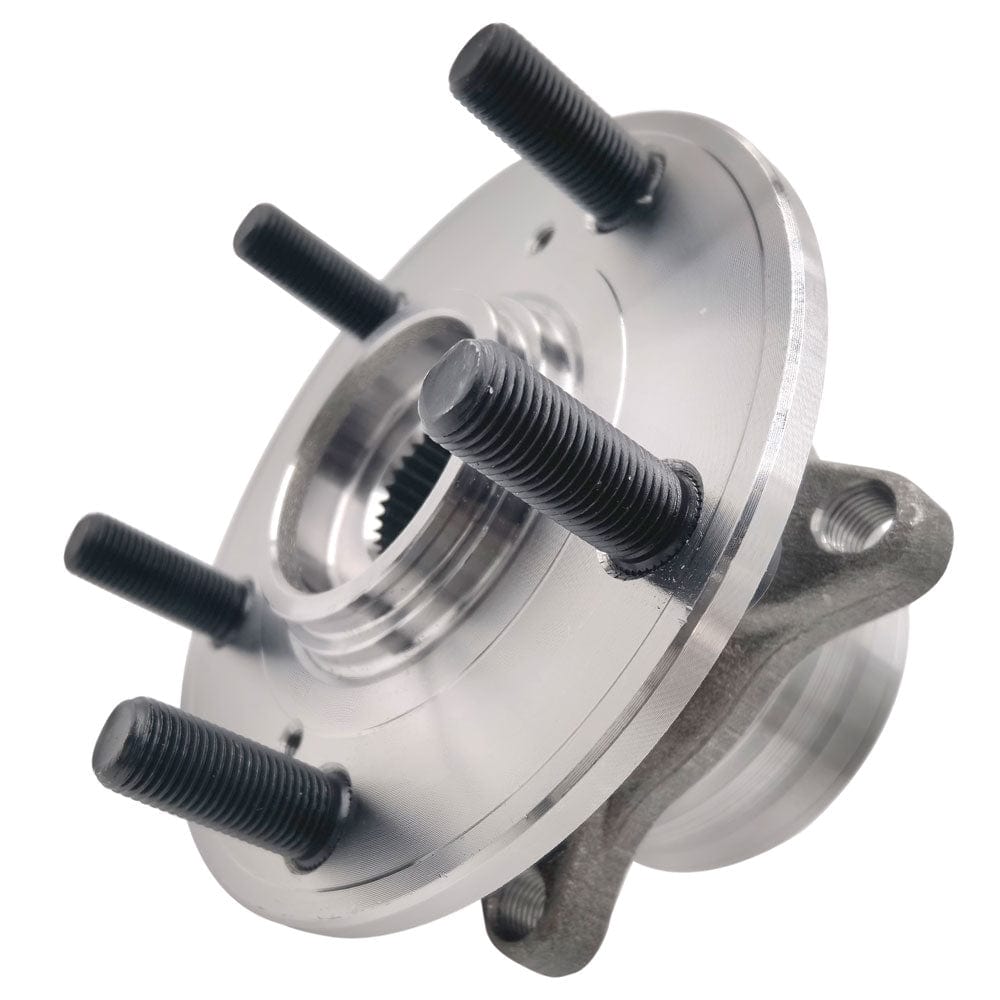

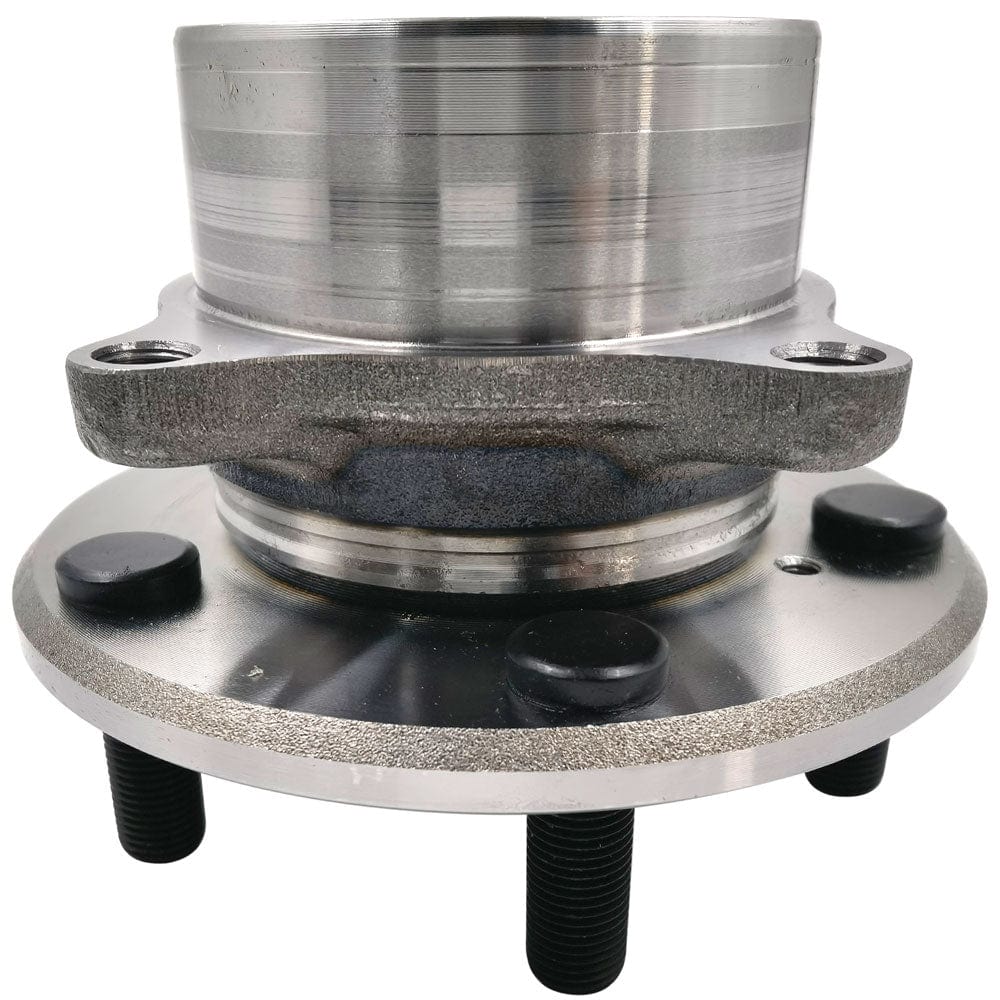

Moog 513267 Front Wheel Bearing Hub Assembly
specifications:
| Number Of Mounting Bolts To Knuckle | 4 |
| Number Of Lug Bolts Included | 5 |
| Driven Or Non-Driven | Driven |
| Number Of Splines | 30 |
| ABS Ring Type | Magnetic |
| Lug Bolt Thread Size | M14-1.50 |
| Total Hub Diameter (in) | 5.971 Inch |
| Total Hub Diameter (mm) | 151.663mm |
| Total Hub Height (in) | 4.65 Inch |
| Total Hub Height (mm) | 118.11mm |
| Flange Diameter (in) | 5.971 Inch |
| Flange Diameter (mm) | 151.66mm |
| Flange Offset (in) | 1.862 Inch |
| Flange Offset (mm) | 47.295mm |
| Hub Pilot Diameter (in) | 3.493 Inch |
| Hub Pilot Diameter (mm) | 88.722mm |
| Flange Shape | Rectangle |
| Flange Bolt Thread Size | M12-1.25 |
| Material | Steel |
| Bearing Type | Ball |
fitment for moog - 513267
ACURA MDX 2007 - 2013 All Models
- Acura Mdx 2007
- Acura Mdx 2008
- Acura Mdx 2009
- Acura Mdx 2010
- Acura Mdx 2011
- Acura Mdx 2012
- Acura Mdx 2013
ACURA ZDX 2010 - 2013 All Models
- Acura Zdx 2010
- Acura Zdx 2011
- Acura Zdx 2012
- Acura Zdx 2013
HONDA PILOT 2009 - 2015 All Models
- Honda Pilot 2009
- Honda Pilot 2010
- Honda Pilot 2011
- Honda Pilot 2012
- Honda Pilot 2013
- Honda Pilot 2014
- Honda Pilot 2015
