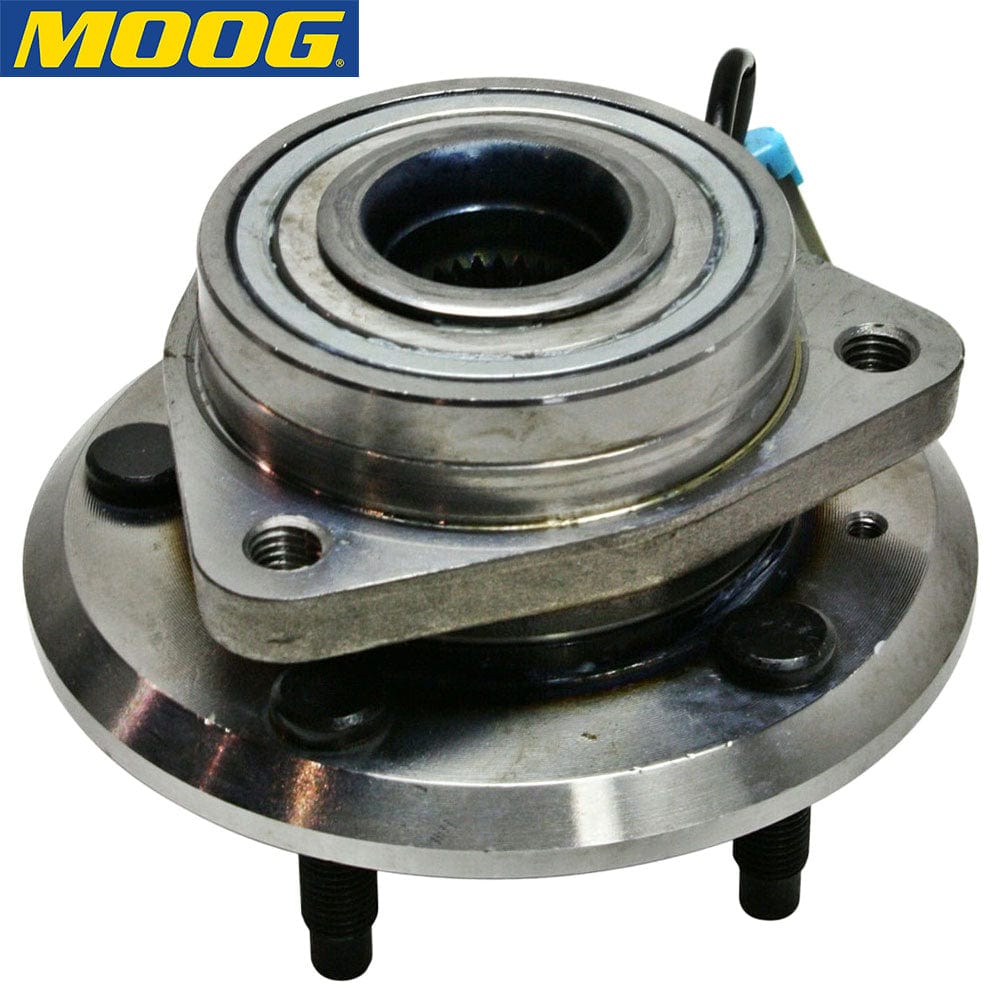

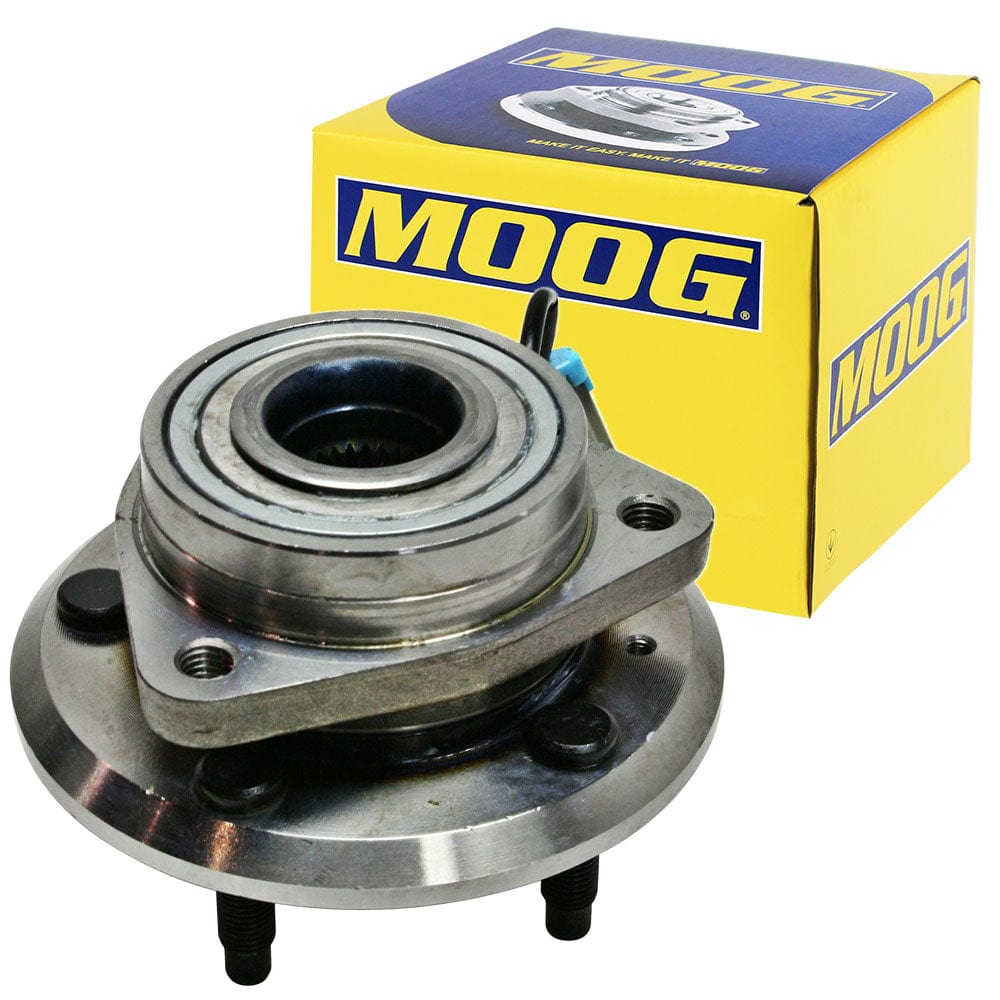

Moog 513276 Wheel Bearing & Hub Assembly
OE-style front hub & bearing with integrated ABS tone ring for a precise fit and long service life.
Includes
- 1 × Wheel Bearing & Hub Assembly — Moog 513276
- Pre-installed wheel studs (5)
Specifications
- Anti-Lock Brake Sensor Included: Yes
- Bolt Circle Diameter: 4.500 in (115.0 mm)
- Brake Pilot Diameter: 70.6 mm
- Flange Bolt Hole Quantity: 3
- Flange Diameter: 151.0 mm
- Flange Offset: 42.1 mm
- Flange Shape: Modified
- Hub Pilot Diameter: 91.3 mm
- Spline Quantity: 30
- Wheel Pilot Diameter: 70.1 mm
- Wheel Stud Quantity: 5
Vehicle Fitment
| MAKE | MODEL | YEAR RANGE | SPECIFIC DETAILS |
|---|---|---|---|
| CHEVROLET | Equinox | 2007 – 2009 | — |
| CHEVROLET | Captiva Sport | 2012 – 2015 | — |
| PONTIAC | Torrent | 2007 – 2009 | — |
| SATURN | Vue | 2008 – 2010 | — |
| SUZUKI | XL-7 | 2007 – 2009 | — |
Install Notes
Fits front position; verify spline count (30), 5-lug hub, and 115 mm bolt circle before purchase.
Fits front position; verify spline count (30), 5-lug hub, and 115 mm bolt circle before purchase.
