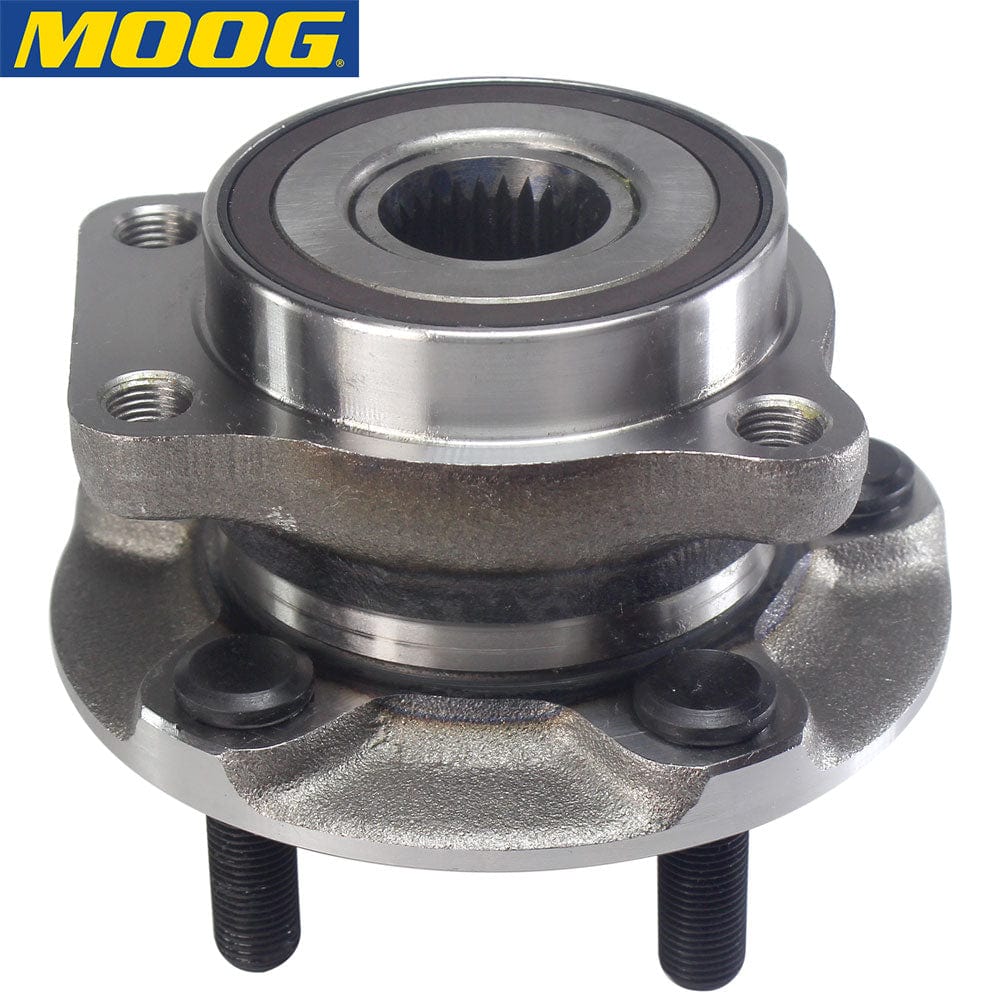

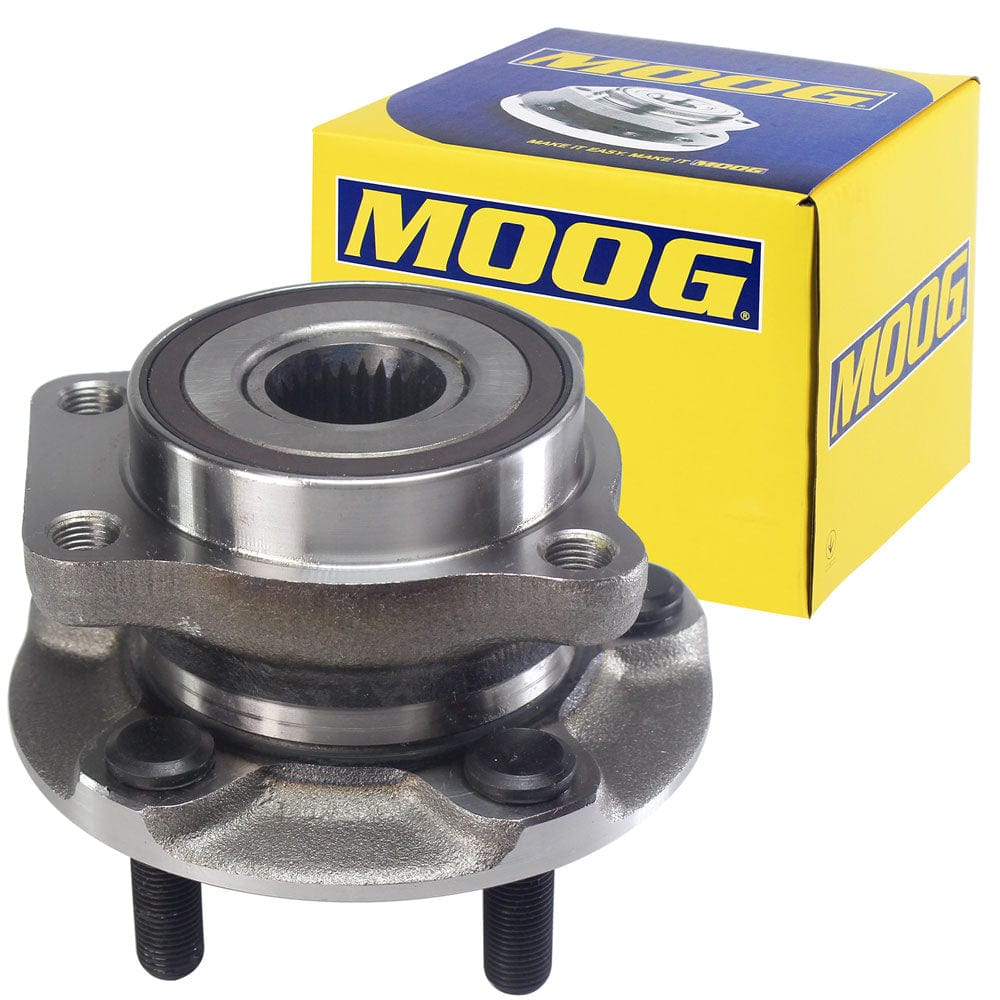

MOOG 513413 Front Wheel Bearing Hub Assembly
Front wheel hub assembly for AWD Subaru models. Steel construction with ball bearing and magnetic ABS ring.
What's Included
- Front Wheel Bearing Hub Assembly (moog 513413)
Product Specifications
- ABS Sensor Included: No
- Wiring Harness Included: No
- Number Of Mounting Bolts To Knuckle: 4
- Number Of Flange Bolts Included: 5
- Driven Or Non-Driven: Driven
- Number Of Splines: 27
- ABS Ring Type: Magnetic
- Number Of ABS Sensor Ring Teeth: 48
- Total Hub Diameter (in): 4.9 Inch
- Hub Centerbore Diameter (in): 3.93 Inch
- Total Hub Height (in): 3.68 Inch
- Flange Diameter (in): 4.9 Inch
- Flange Offset (in): 1.92 Inch
- Flange Shape: Circle
- Material: Steel
- Hub Pilot Diameter (in): 2.99 Inch
- Flange Bolt Size (in): 1.18 Inch
- Flange Bolt Thread Size: M12-1.25
- Bearing Type: Ball
Vehicle Compatibility
| Year | Make | Model | Details |
|---|---|---|---|
| 2016-2021 | Subaru | Crosstrek | AWD Only |
| 2014-2018 | Subaru | Forester | AWD Only |
| 2014-2019 | Subaru | Impreza | AWD Only |
| 2014-2015 | Subaru | XV Crosstrek | AWD Only |
10-year warranty included.
