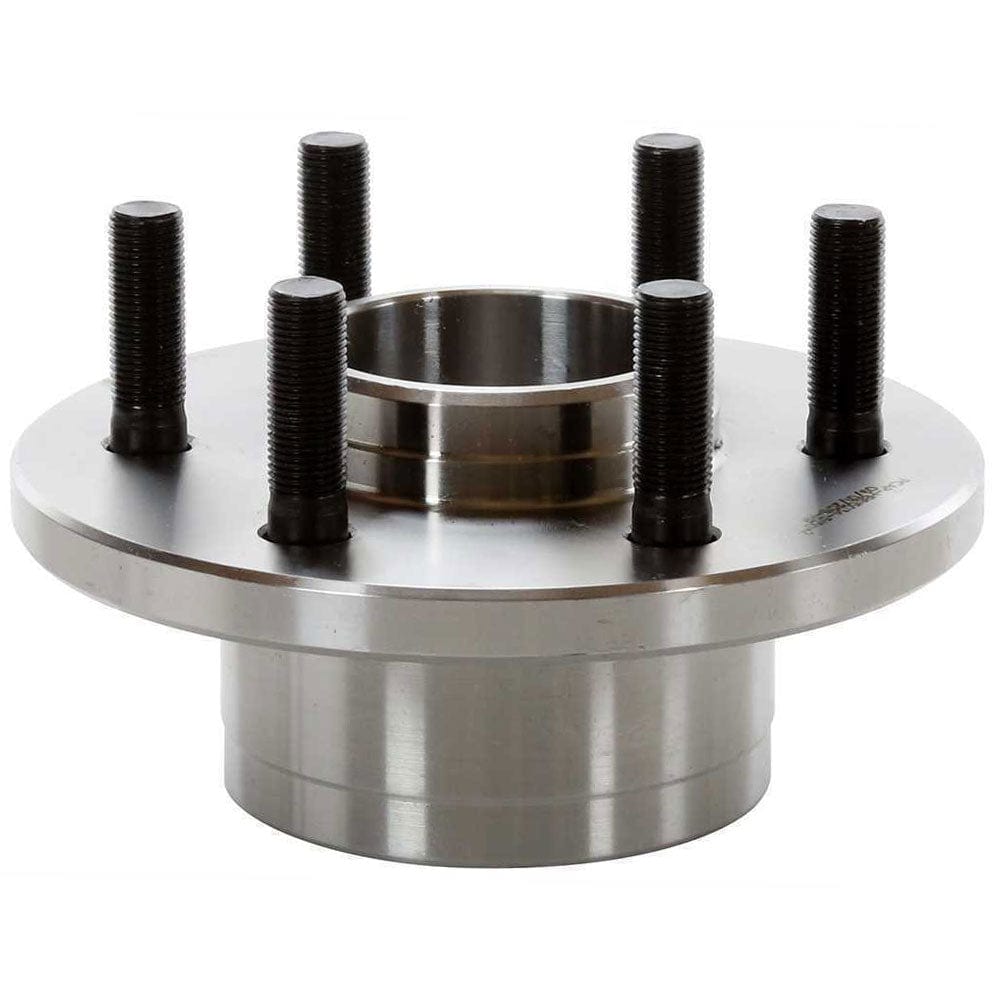

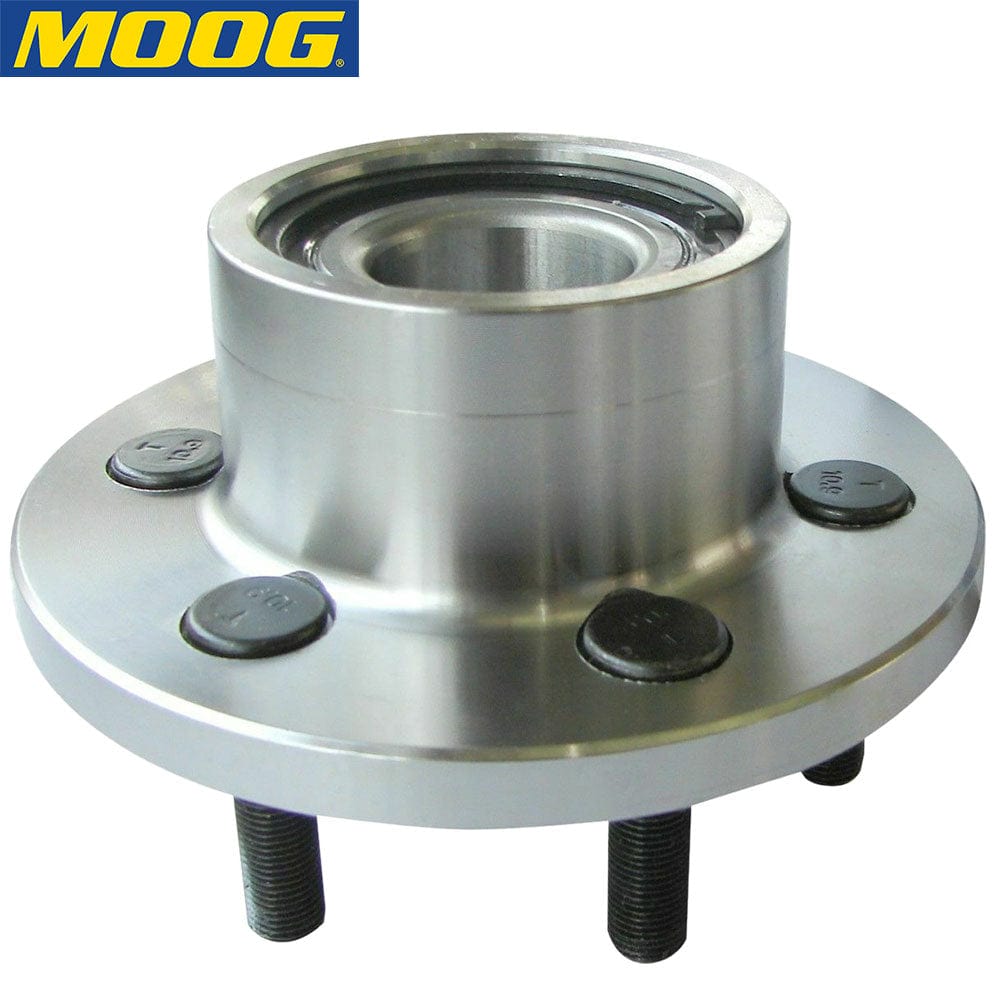

MOOG 515032 - Dodge Durango Front Wheel Bearing Hub Assembly 1999-2003

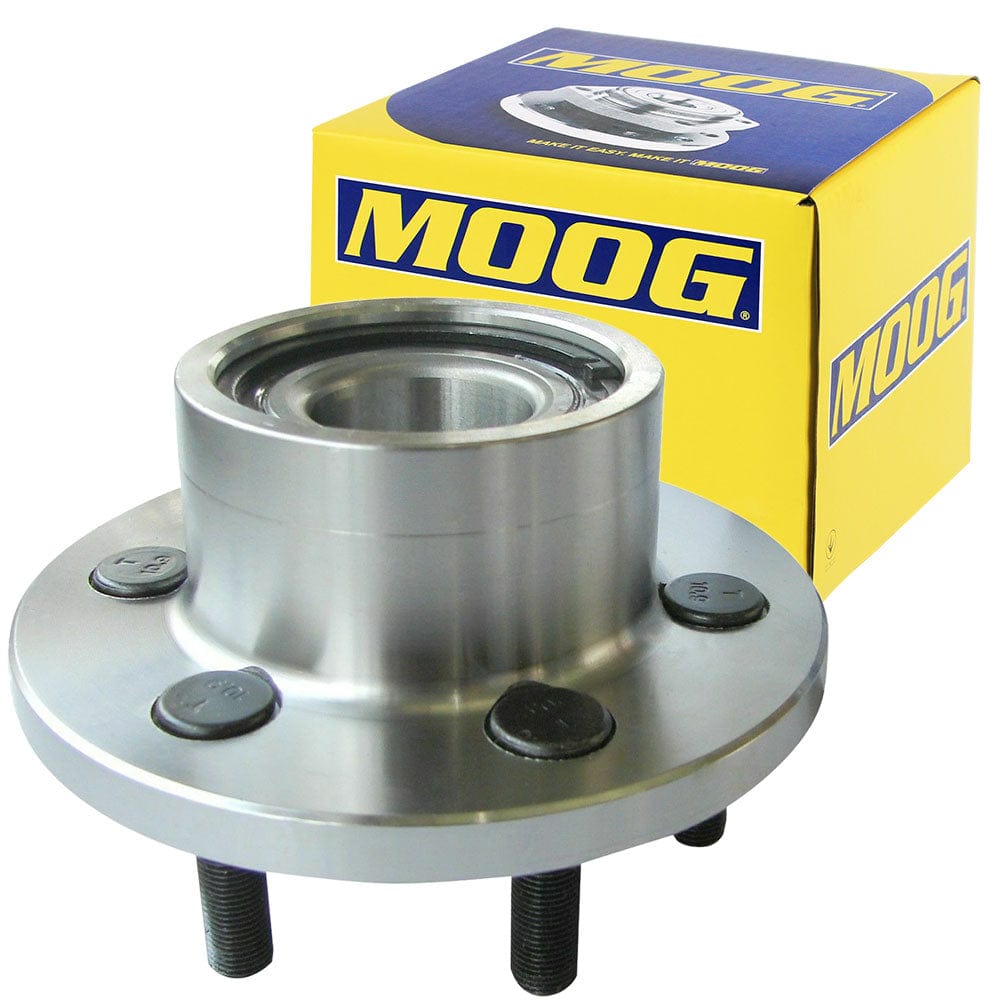

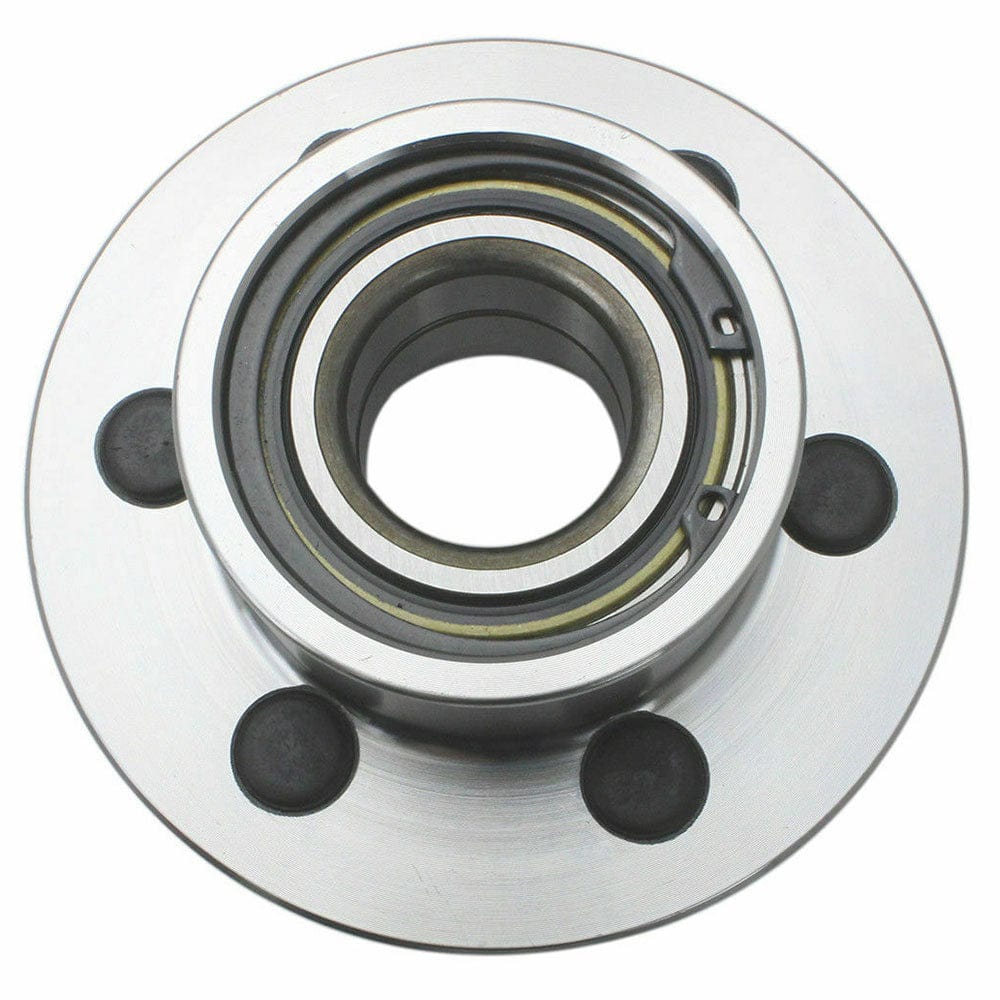

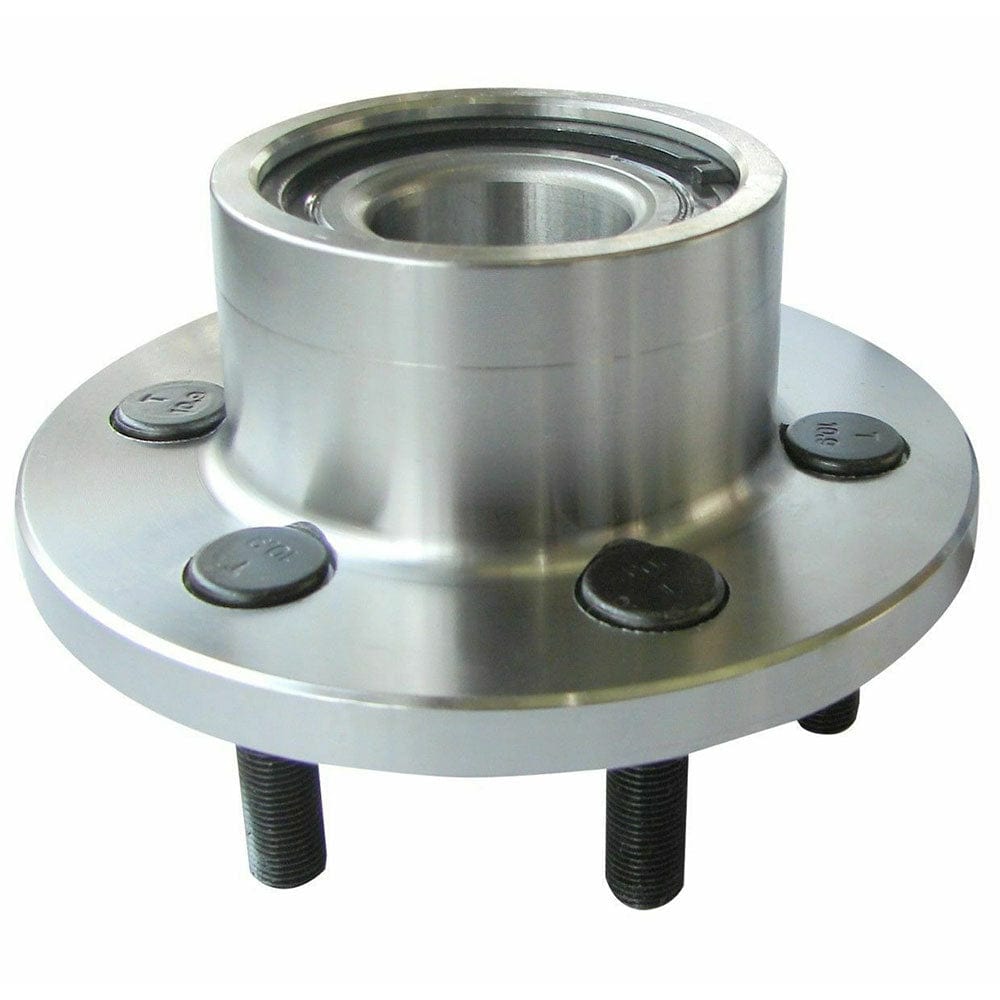

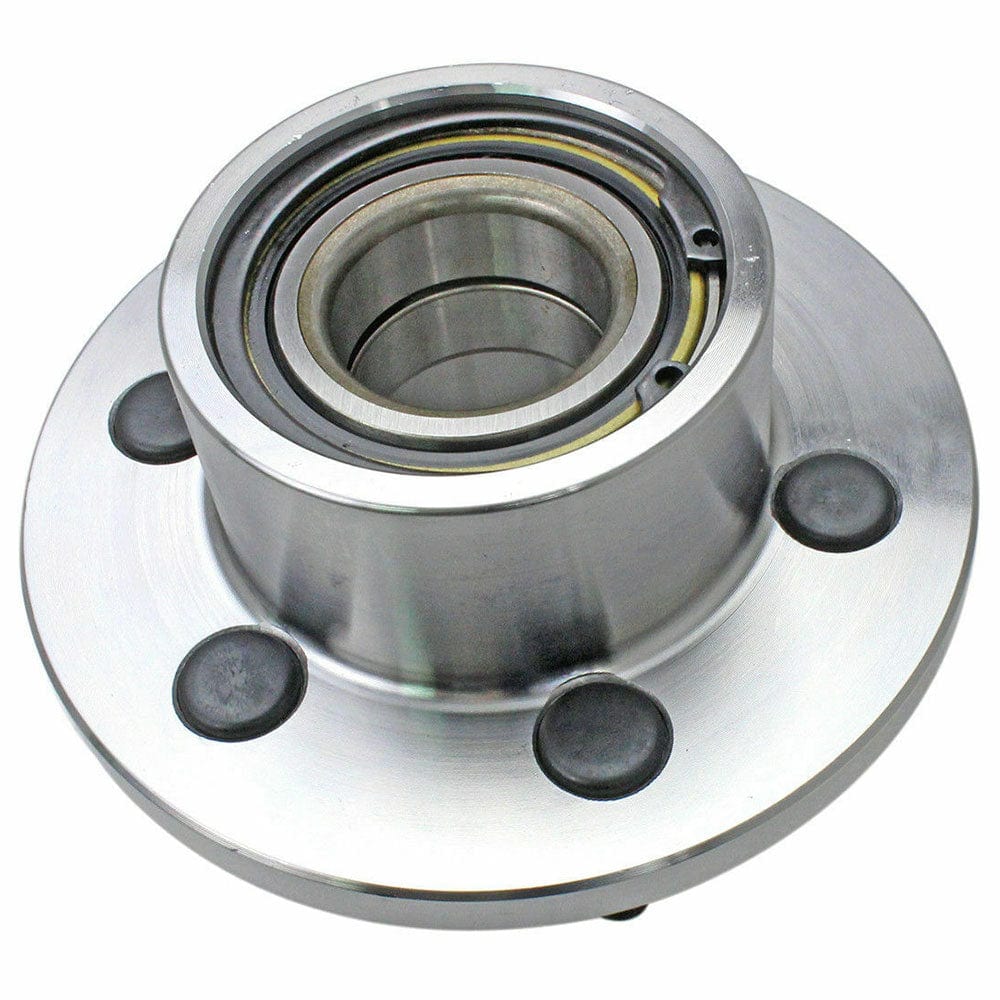

Moog 515032 Front Wheel Bearing Hub Assembly

OE-style front hub & bearing for precise fit and long service life. Built to handle 2-wheel ABS systems on 2WD applications.

Includes

• 1 × Front Wheel Bearing & Hub Assembly — Moog 515032
• Pre-installed wheel studs (6) — 1/2-20 thread

Specifications

• ABS Sensor Included: 2-Wheel ABS
• Wiring Harness Included: No
• Driven or Non-Driven: Non-Driven (Front 2WD)
• Mounting Bolts to Knuckle: 6
• Lug Bolts / Studs: 6, thread size 1/2-20
• Bearing Type: Tapered
• Total Hub Diameter: 6.299 in (160 mm)
• Hub Centerbore Diameter: 4.50 in (114.3 mm)
• Total Hub Height: 3.637 in (92.4 mm)
• Flange Diameter: 6.299 in (160 mm) — Circle
• Flange Offset: 2.270 in (57.683 mm)
• Flange Bolt Size (length): 1.618 in (41.1 mm)
• Flange Bolt Thread Size: 1/2-20 in
• Hub Pilot Diameter: 2.885 in (73.3 mm)
• Outer Ring Width: 2.98 in
• Inner Ring Width: 1.54 in
• Material: Steel

Vehicle Fitment
