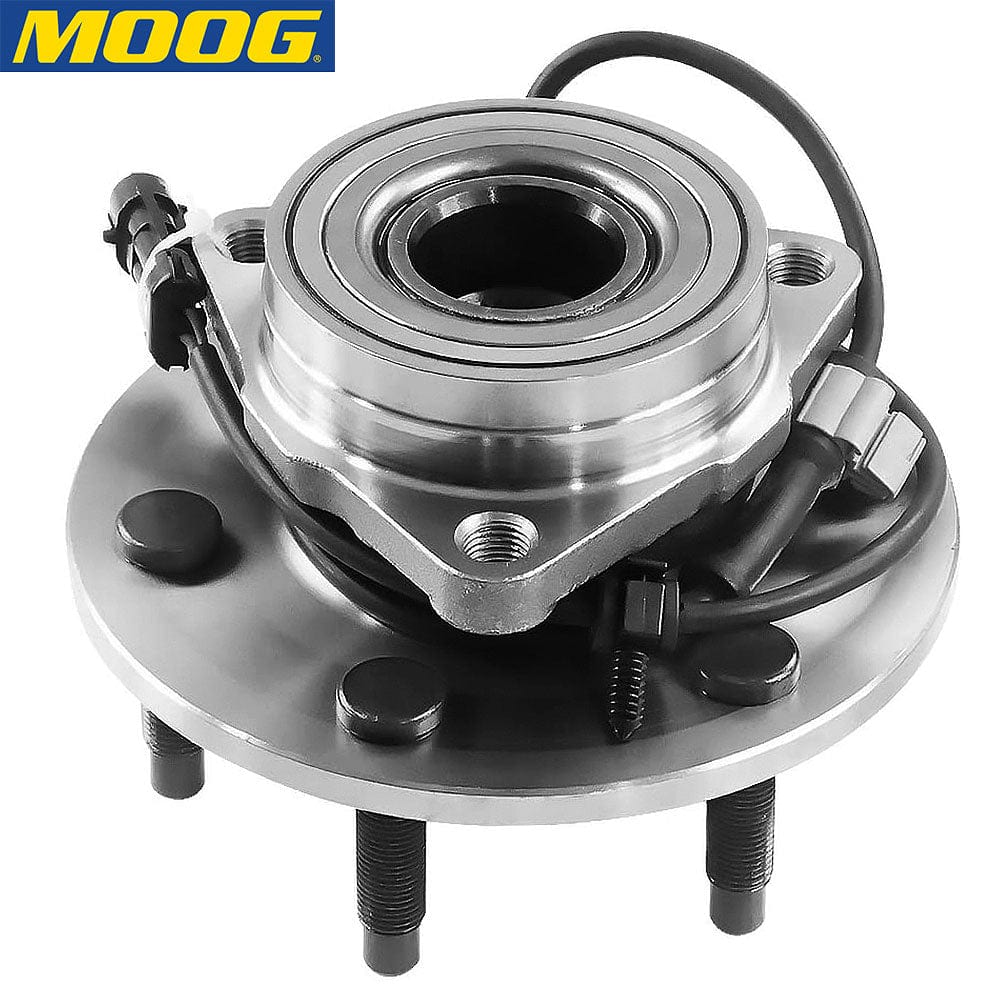

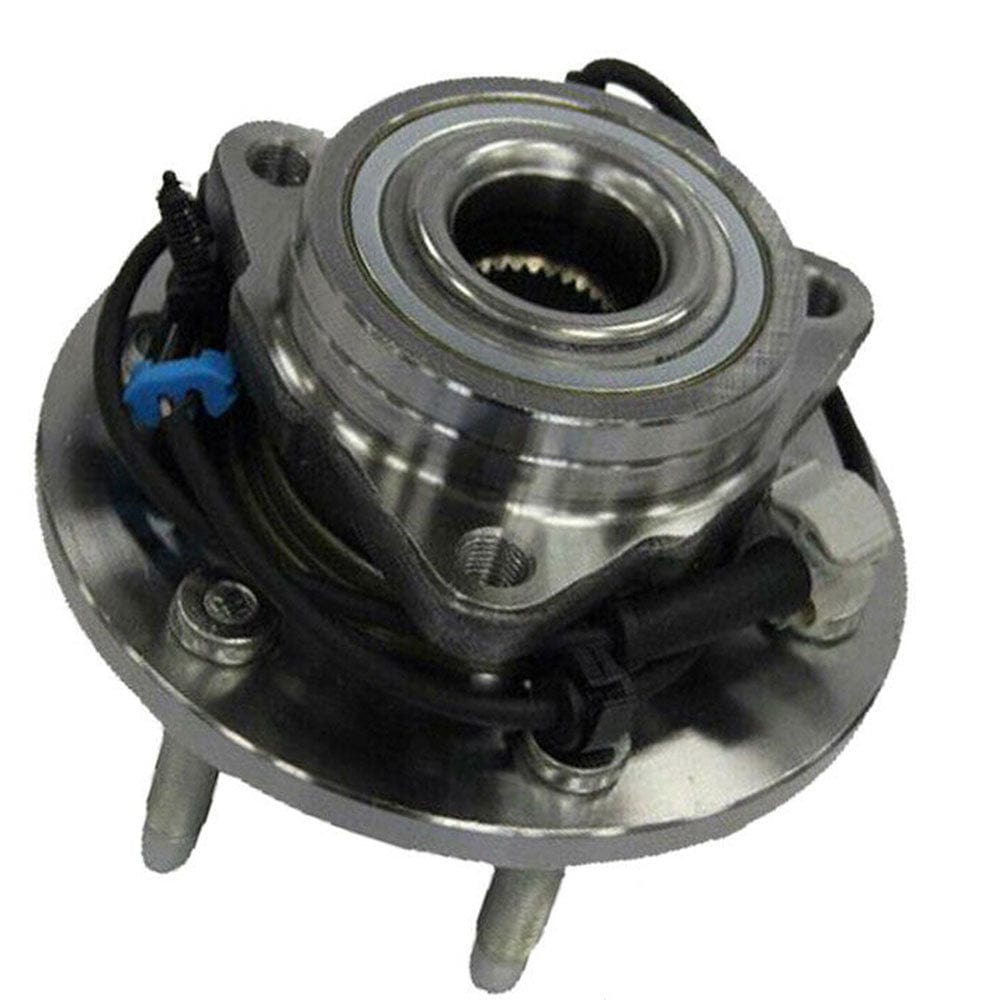

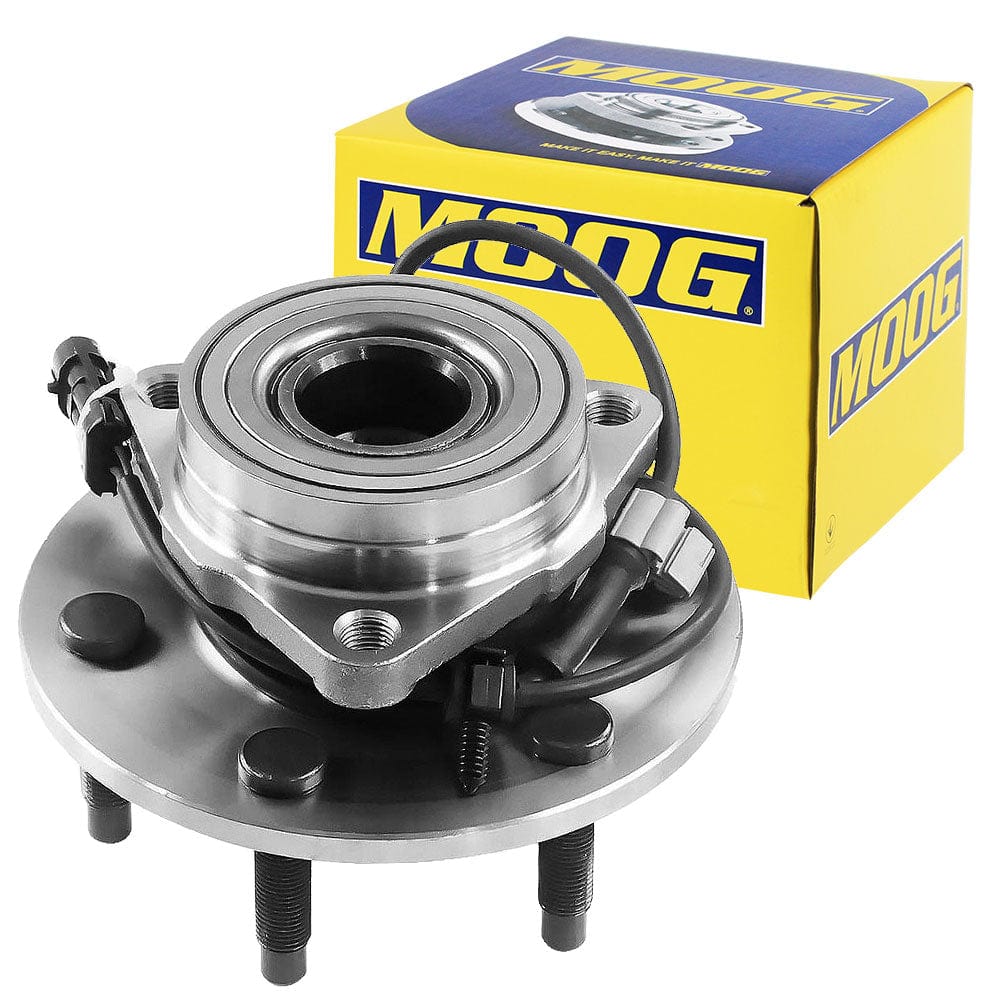

Moog 515036 Front Wheel Bearing Hub Assembly
Premium front hub assembly with integrated ABS encoder. Engineered for 4WD/AWD applications for a precise fit, smooth rotation, and dependable stopping performance.
10-Year Warranty ?|? Next-Business-Day Processing ?|? Typical Delivery 3®C7 Business Days
What's Included
- 1 °¡ Front Wheel Bearing & Hub Assembly (Part No. 515036)
Product Specifications
- ABS Sensor: Integrated (Yes)
- Bolt Circle: 4.961 in (126.000 mm)
- Brake Pilot Diameter: 3.085 in
- Flange Bolt Holes: 3
- Flange Diameter: 7.087 in
- Flange Offset: 1.961 in
- Hub Pilot Diameter: 3.910 in
- Spline Count: 33
- Wheel Pilot Diameter: 3.064 in
- Wheel Studs: 6
Vehicle Compatibility
| Year Range | Make | Model | Specific Details |
|---|---|---|---|
| 2002®C2006 | Cadillac | Escalade | AWD / 4x4 only |
| 2003®C2006 | Cadillac | Escalade ESV | AWD / 4x4 only |
| 2002®C2006 | Cadillac | Escalade EXT | AWD / 4x4 only |
| 2002®C2006 | Chevrolet | Avalanche 1500 | 4WD / 4x4 only |
| 2003®C2014 | Chevrolet | Express 1500 | 4WD / 4x4 only |
| 2003®C2005 | Chevrolet | Express 2500 | 4WD / 4x4 models only |
| 1999®C2006 | Chevrolet | Silverado 1500 | 4WD / 4x4 only |
| 2007 | Chevrolet | Silverado 1500 Classic | 4WD / 4x4 only |
| 2000®C2006 | Chevrolet | Suburban 1500 | 4WD / 4x4 only |
| 2000®C2006 | Chevrolet | Tahoe | 4WD / 4x4 only (2000 base/LS/LT 4.8L/5.3L) |
| 2003®C2014 | GMC | Savana 1500 | 4WD / 4x4 only |
| 2003®C2005 | GMC | Savana 2500 | 4WD / 4x4 only |
| 1999®C2006 | GMC | Sierra 1500 | 4WD / 4x4 only |
Install Tip: Replace in axle pairs when possible for best performance. Verify drivetrain (4WD/AWD), wheel stud count (6-lug), and trim/engine notes before purchase.
