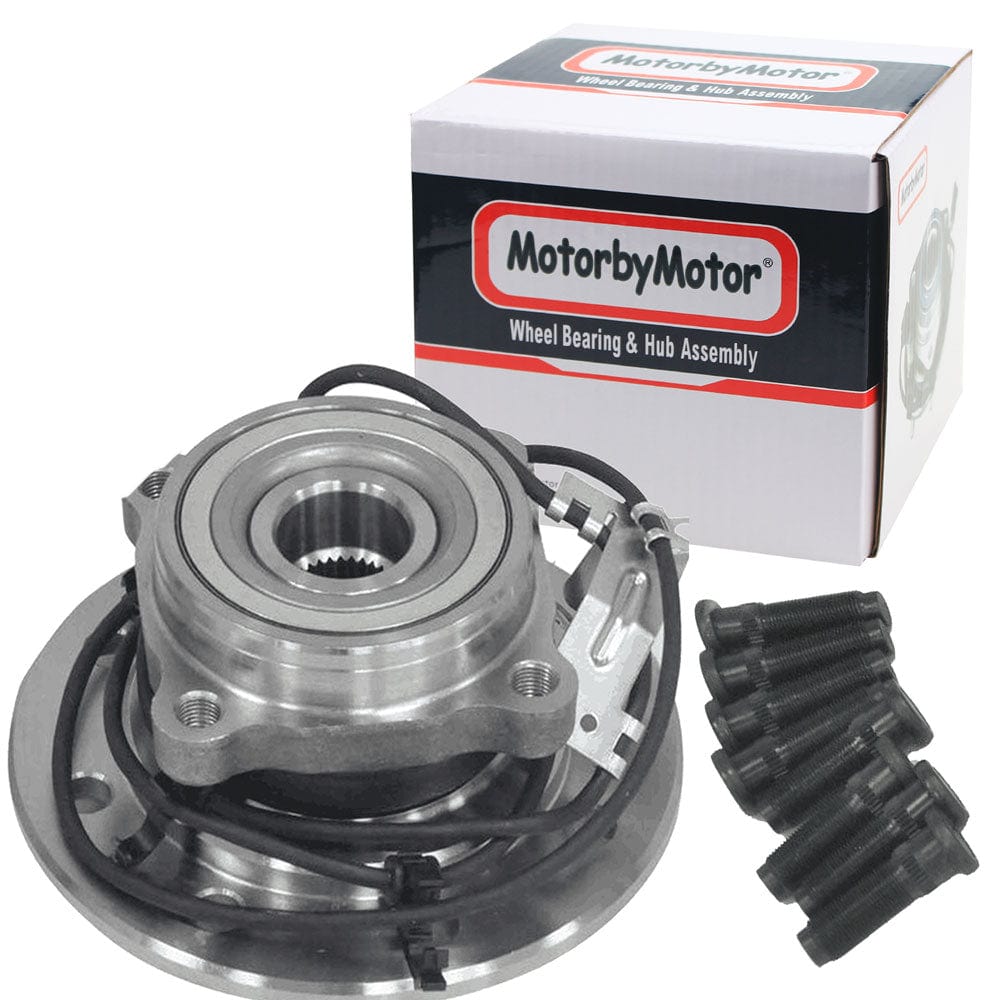

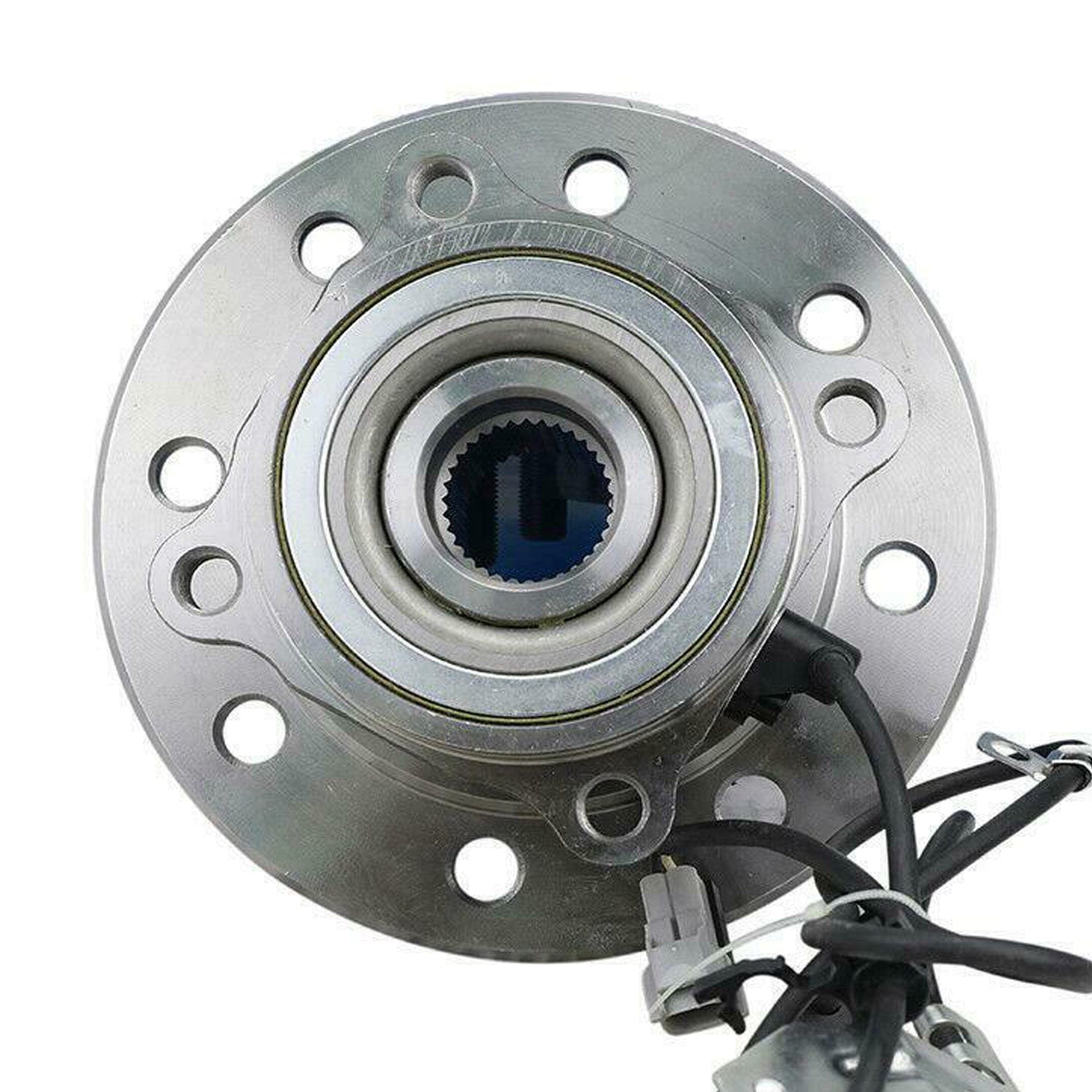

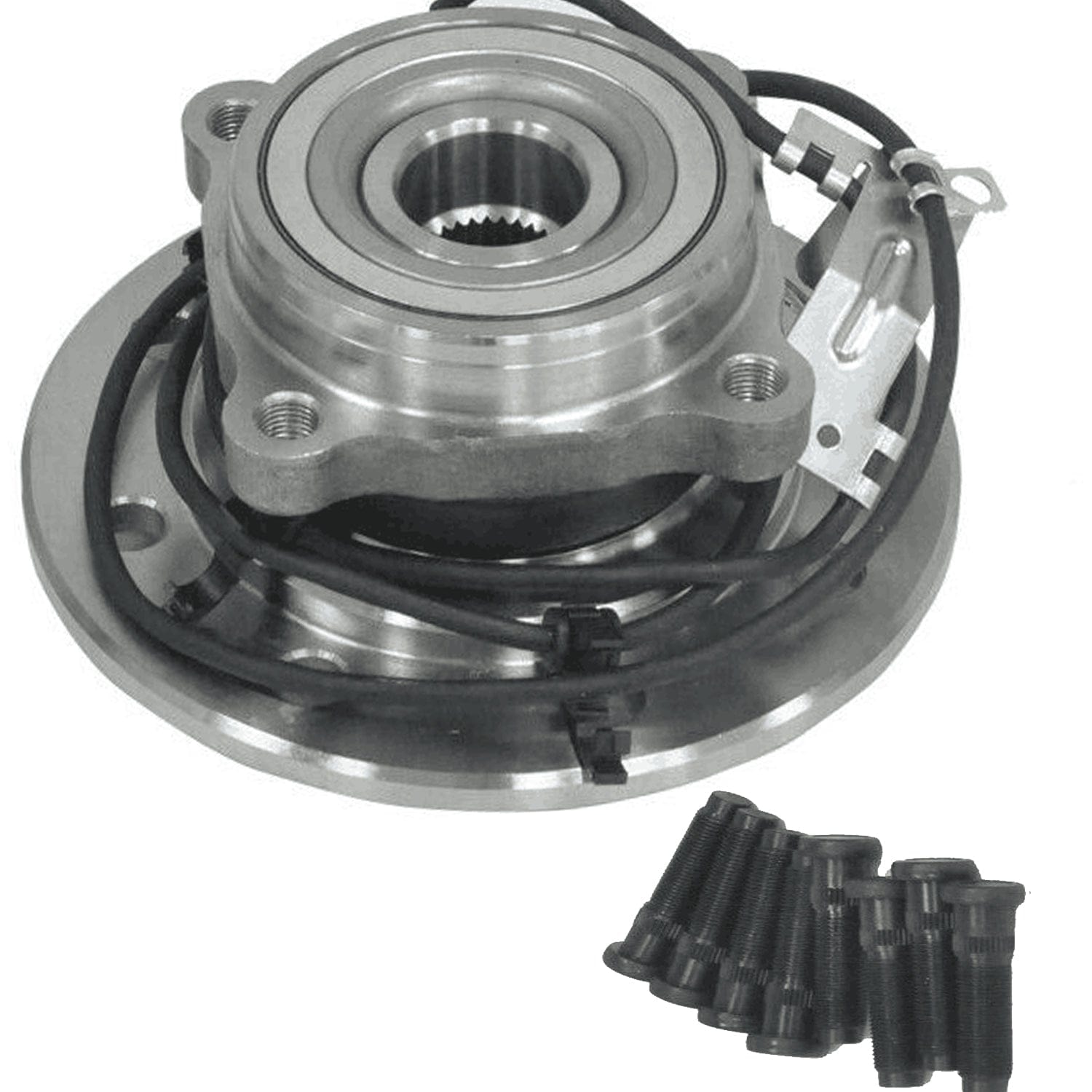

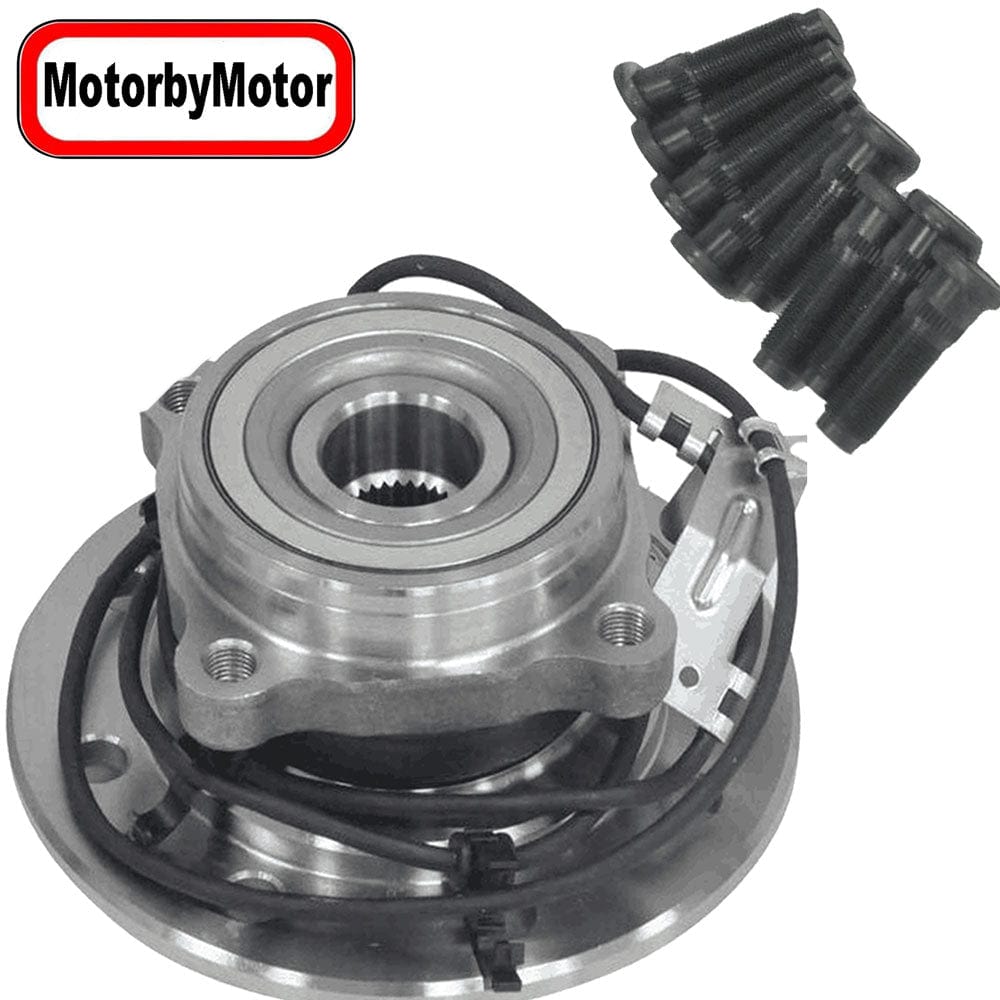

Dodge Ram 3500 Wheel Bearing Hub Assembly 1998 1999 Front Left 515068
MotorbyMotor Front Left Wheel Bearing Fit 1998 1999 Dodge Ram 3500 Pickup Wheel Hub w/ABS 8 Lugs, Driver LH Side, 4WD, 515068
Fit:
1998 1999 Dodge Ram 3500 Pickup (4WD Super Duty Models; Dual Rear Wheel; 4 wheel ABS)
Description:
Position: Driver(LH Left) Side Front
ABS Sensor Included: Yes

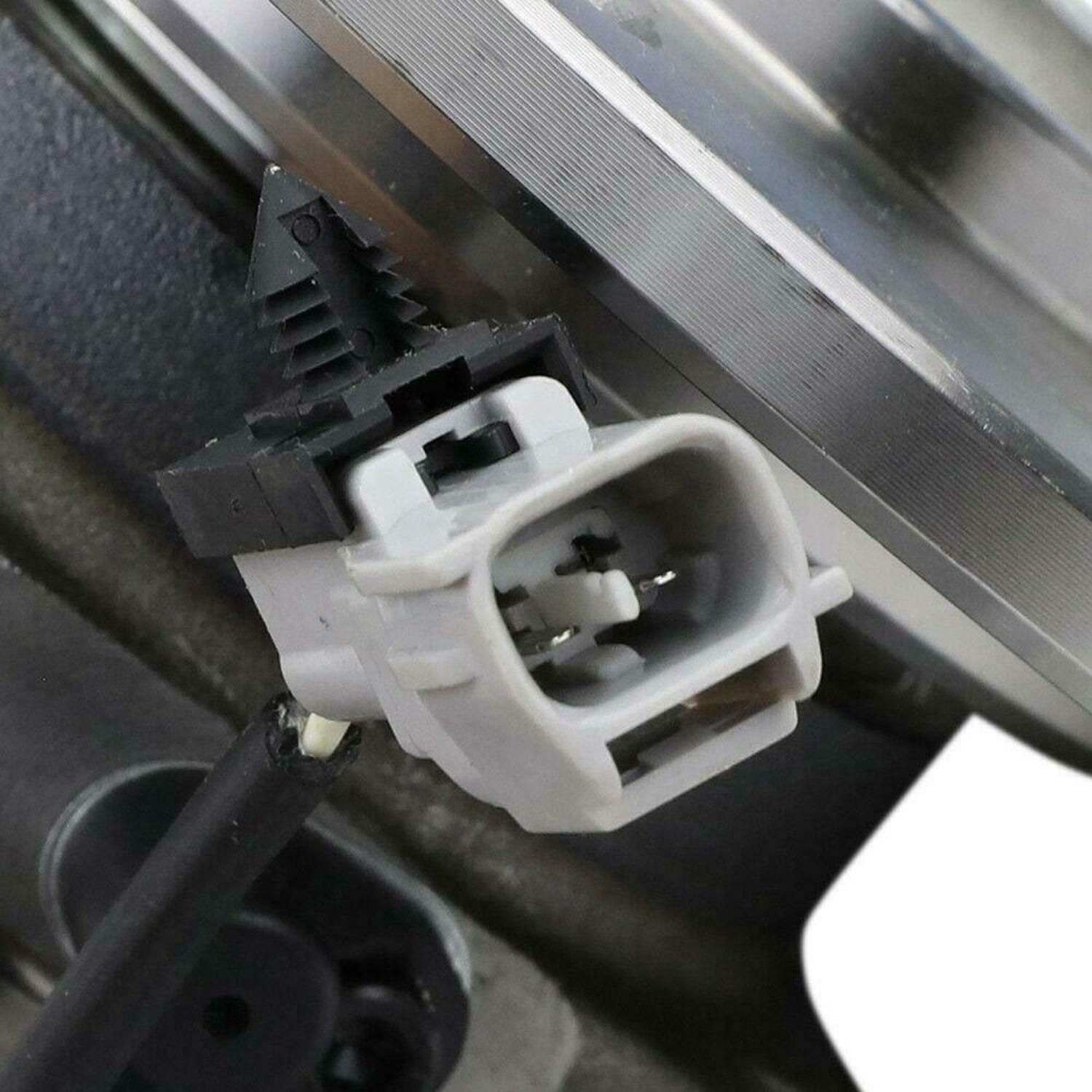

ABS Connector Shape: Round
Wiring Harness Included: Yes
Wiring Harness Length (in): 56.61 Inch
Number Of Mounting Bolts To Knuckle: 4

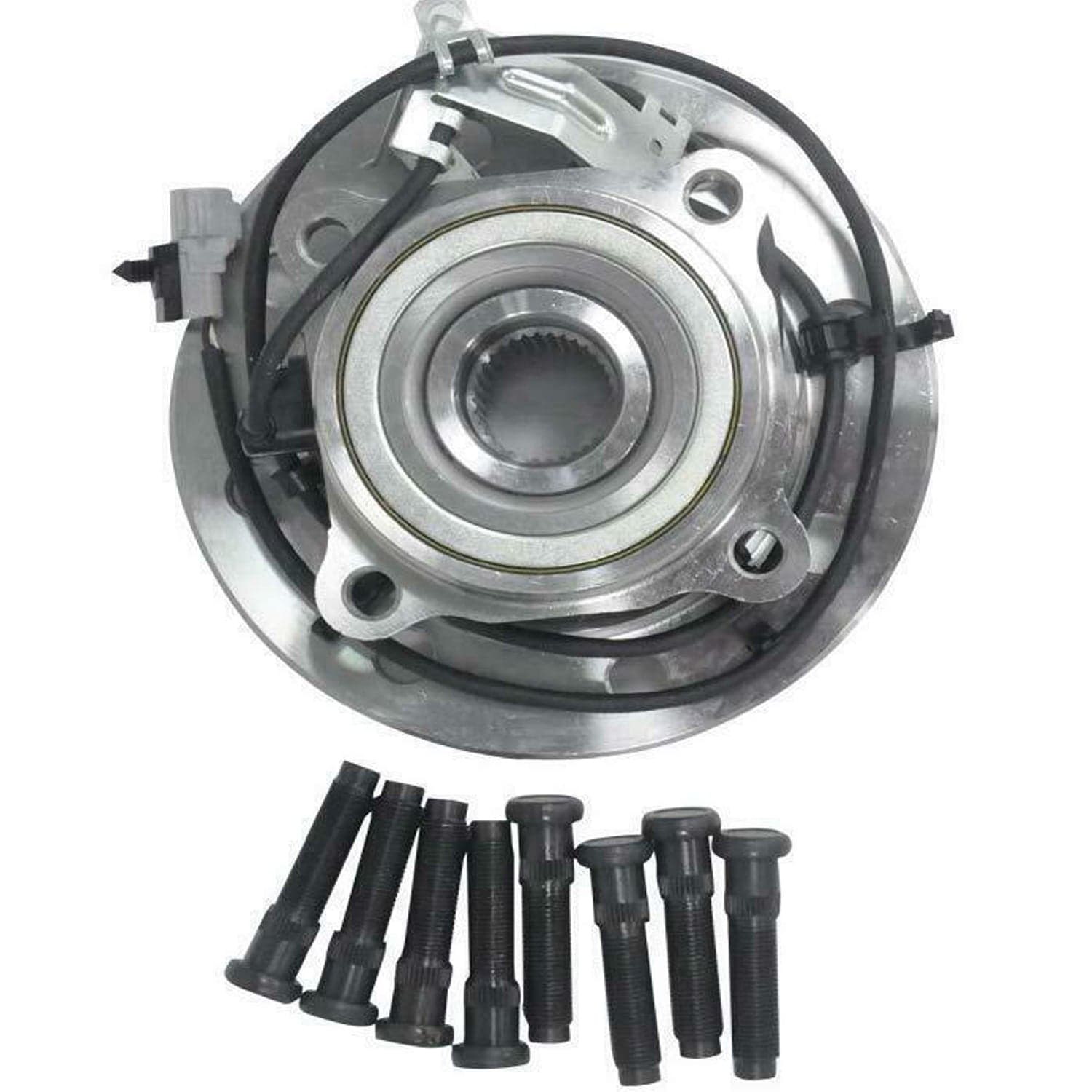

Number Of Lug Bolts Included: 8
Number Of Flange Bolts Included: 8
Driven Or Non-Driven: Driven
Number Of Splines: 33
ABS Ring Type: Tone
Number Of ABS Sensor Ring Teeth: 55
Total Hub Diameter (in): 8.188 Inch
Total Hub Diameter (mm): 208mm
Hub Centerbore Diameter (in): 6.496 Inch
Hub Centerbore Diameter (mm): 165mm
Total Hub Height (in): 3.909 Inch
Total Hub Height (mm): 99.3mm
Flange Diameter (in): 8.188 Inch
Flange Diameter (mm): 208mm
Flange Offset (in): 2.688 Inch
Flange Offset (mm): 68.3mm
Flange Shape: Square
Flange Bolt Thread Size: M14-1.50
Material: Steel
Bearing Type: Tapered
Outer Ring Width (in): 2.44 Inch
Inner Ring Width (in): 1.17 Inch
Hub Pilot Diameter (in): 4.590 Inch
Hub Pilot Diameter (mm): 116.6mm
