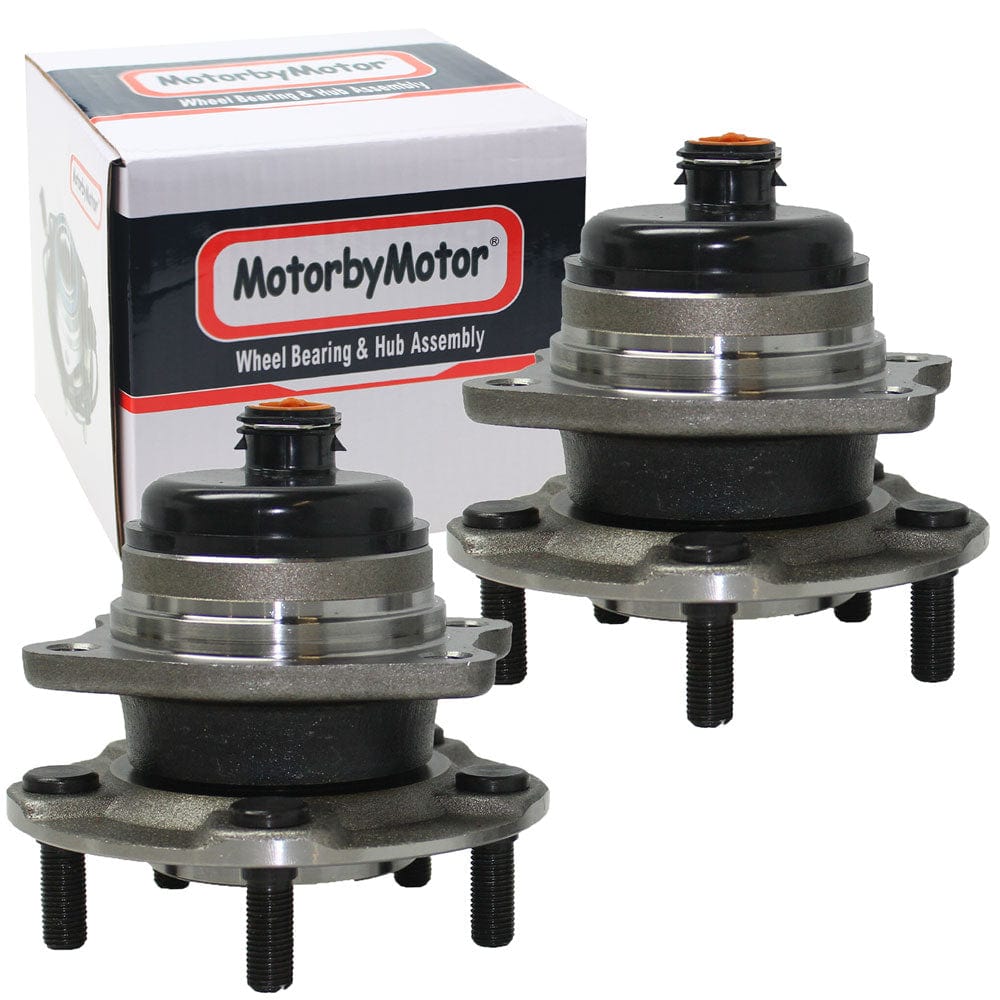

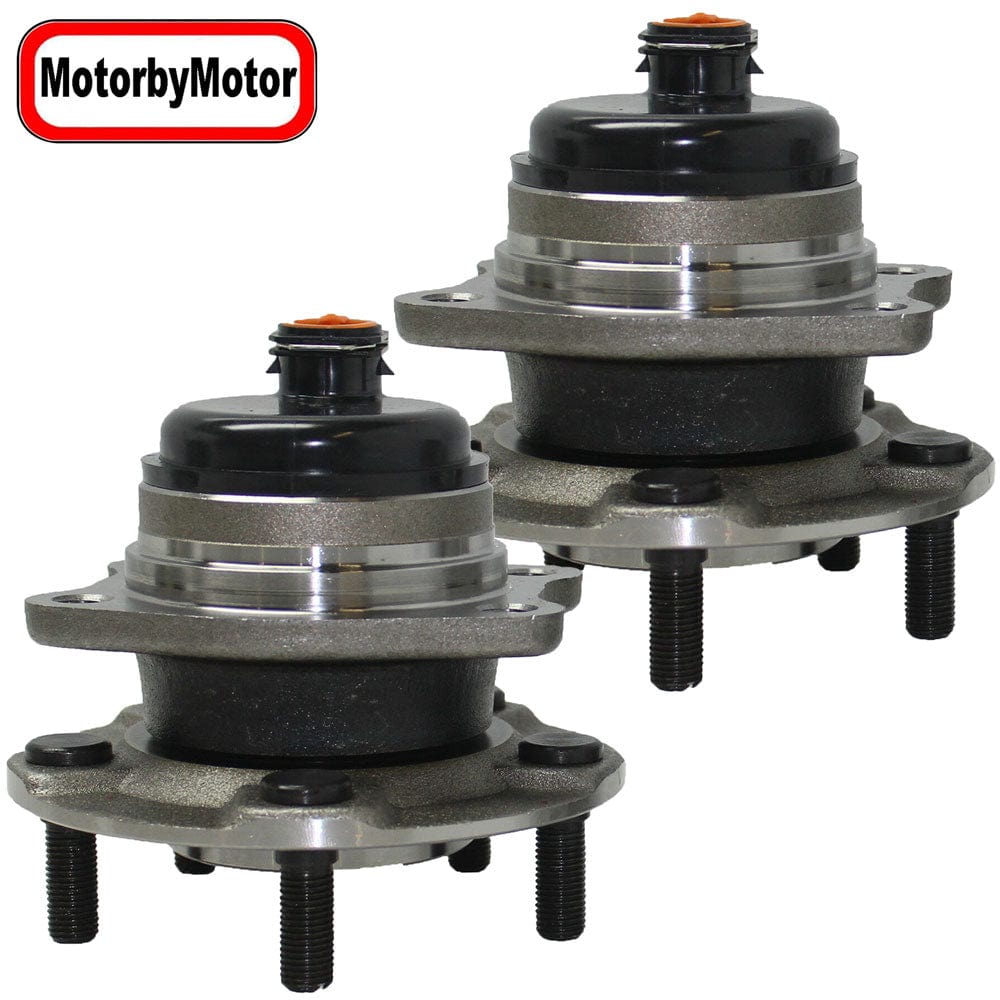

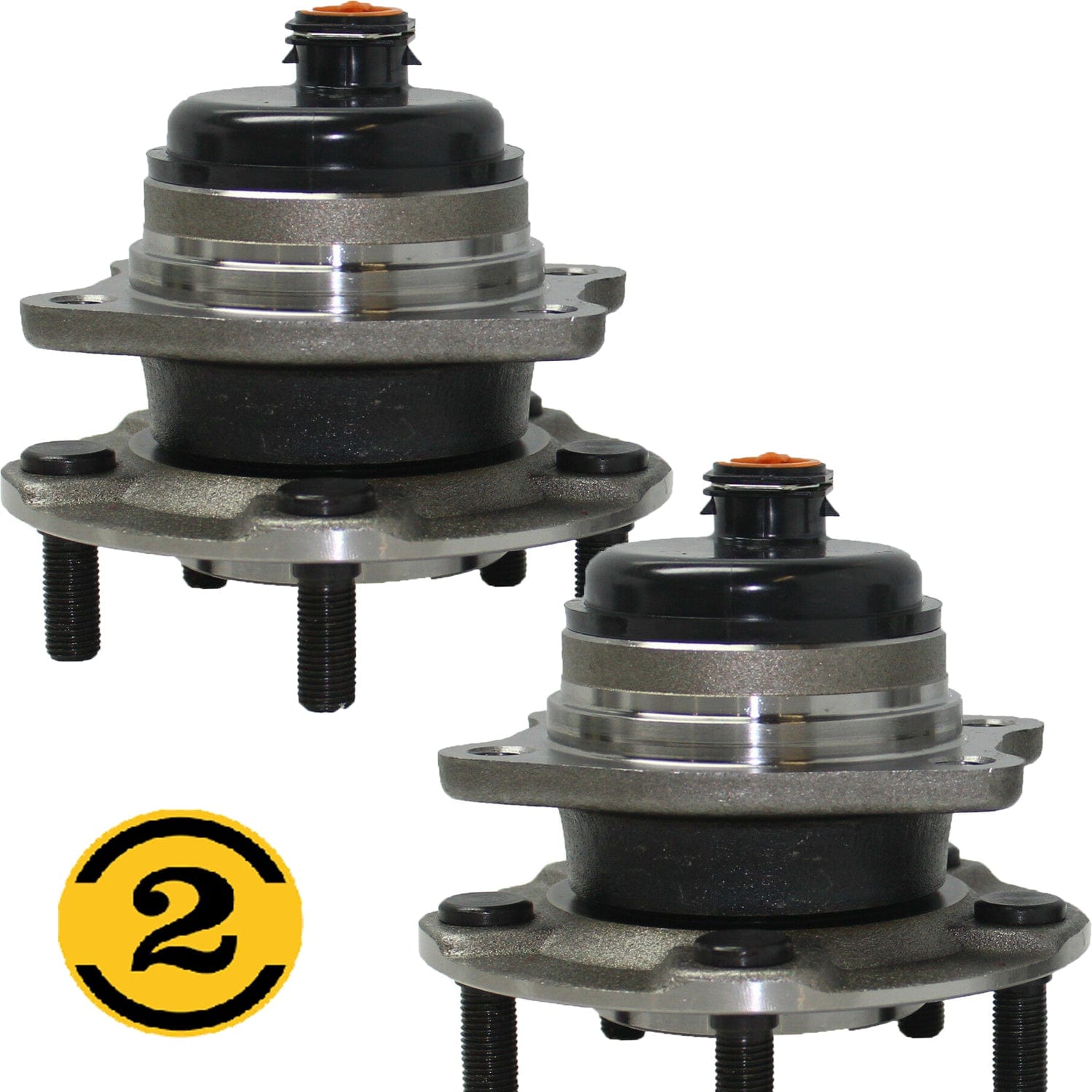

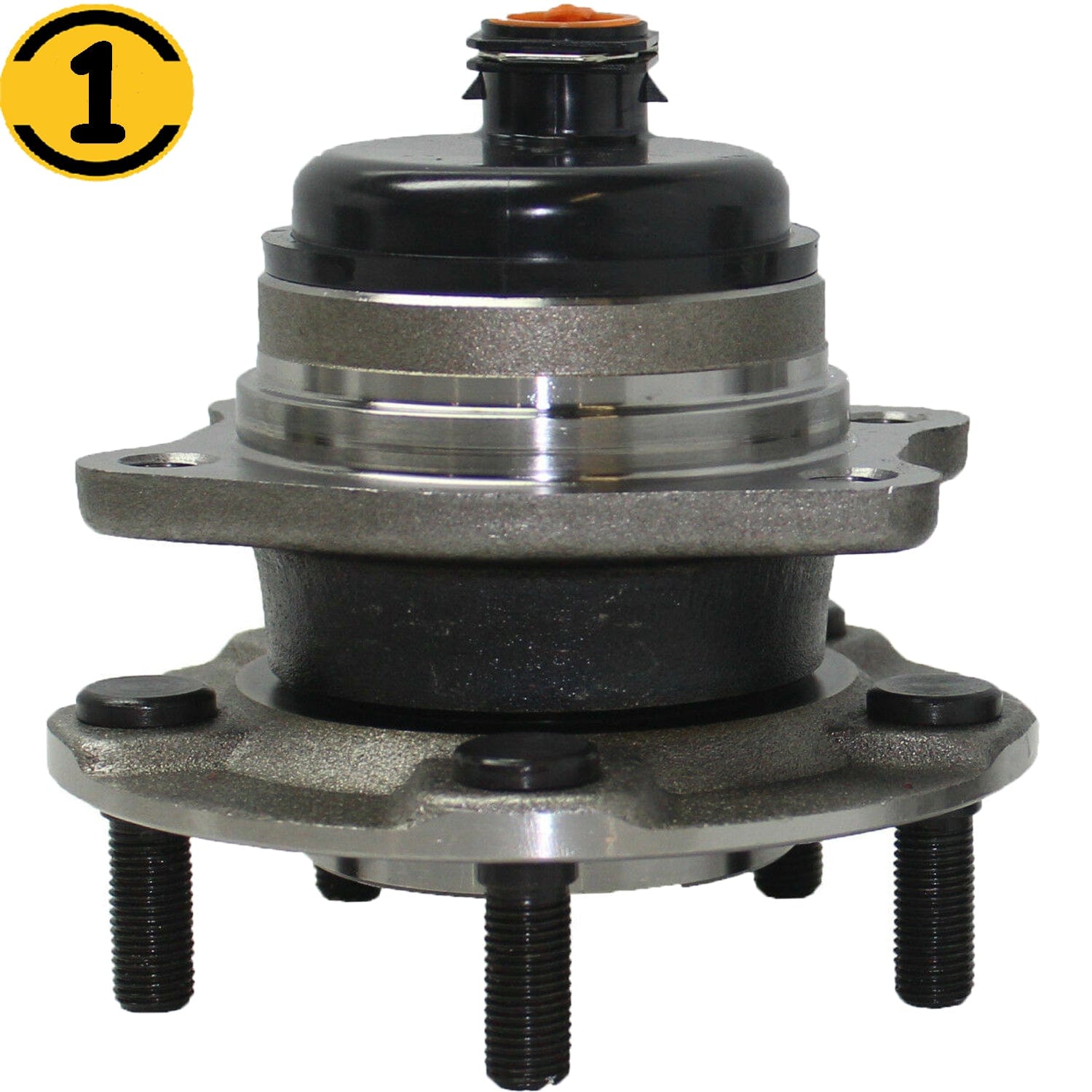

Rear Wheel Bearing Fit Chrysler Voyager, Chrysler Town & Country Dodge Grand Caravan Wheel Hub-5 Lugs w/ABS 2WD FWD-512169 (2 Pack)
2001 2002 2003 2004 2005 2006 2007 Chrysler Town & Country 2WD
2001 2002 2003 Chrysler Voyager
2001 2002 2003 2004 2005 2006 2007 Dodge Caravan 2WD
2001 2002 2003 2004 2005 2006 2007 Dodge Grand Caravan 2WD
Position:Driver(LH Left) or Passenger(RH Right) Side Rear
ABS Sensor Included: Yes
ABS Connector Shape: Round
Wiring Harness Included: No
Number Of Mounting Bolts To Knuckle: 4
Number Of Lug Bolts Included: 5
Number Of Flange Bolts Included: 4
Driven Or Non-Driven: Non-Driven
ABS Ring Type: Tone
Number Of ABS Sensor Ring Teeth: 47
Lug Bolt Thread Size: M12-1.50
Total Hub Diameter (in): 5.511 Inch
Total Hub Diameter (mm): 140mm
Hub Centerbore Diameter (in): 4.5 Inch
Hub Centerbore Diameter (mm): 114.3mm
Total Hub Height (in): 5.681 Inch
Total Hub Height (mm): 144.3mm
Flange Diameter (in): 5.511 Inch
Flange Diameter (mm): 140mm
Flange Offset (in): 1.889 Inch
Flange Offset (mm): 48mm
Flange Shape: Rectangle
Flange Bolt Size (in): 1.381 Inch
Flange Bolt Size (mm): 35.1mm
Flange Bolt Thread Size: M12-1.50
Bearing Type: Ball
Outer Ring Width (in): 2.38 Inch
Inner Ring Width (in): 1.03 Inch
Hub Pilot Diameter (in): 3.15 Inch
Hub Pilot Diameter (mm): 80mm
