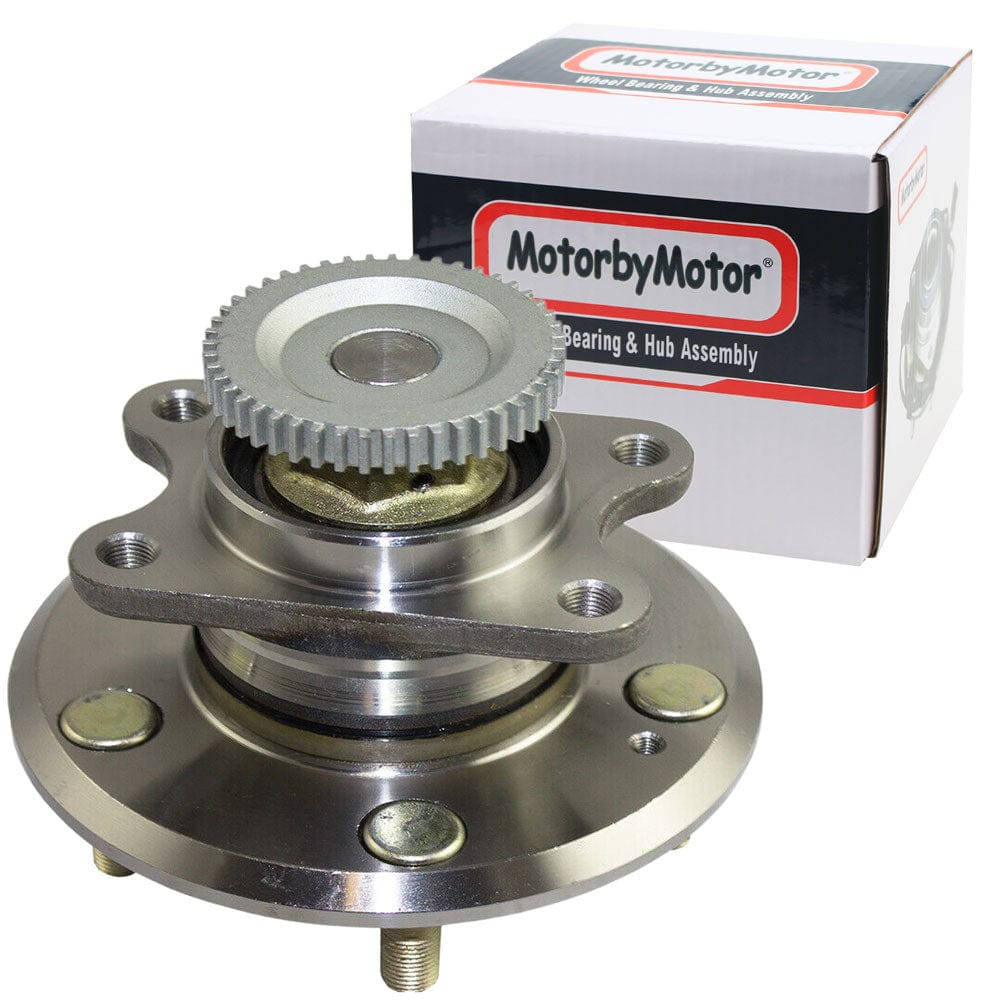

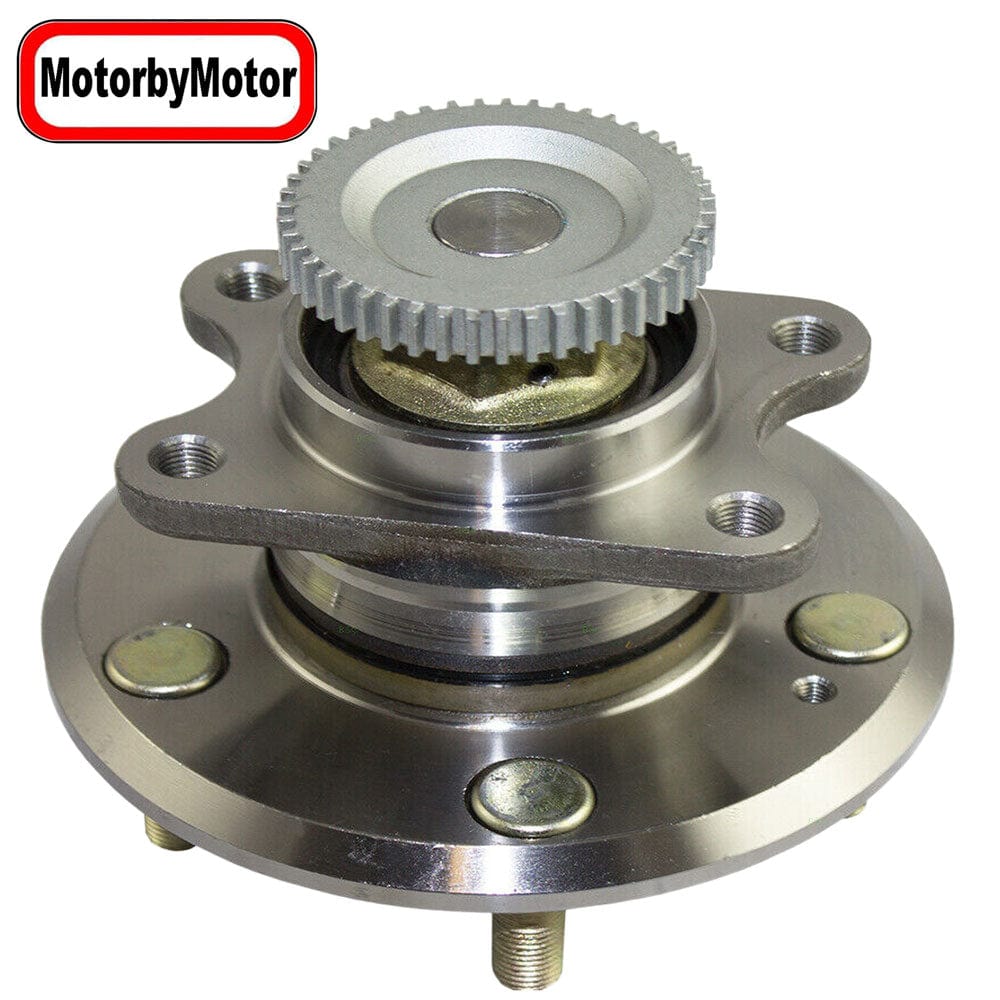

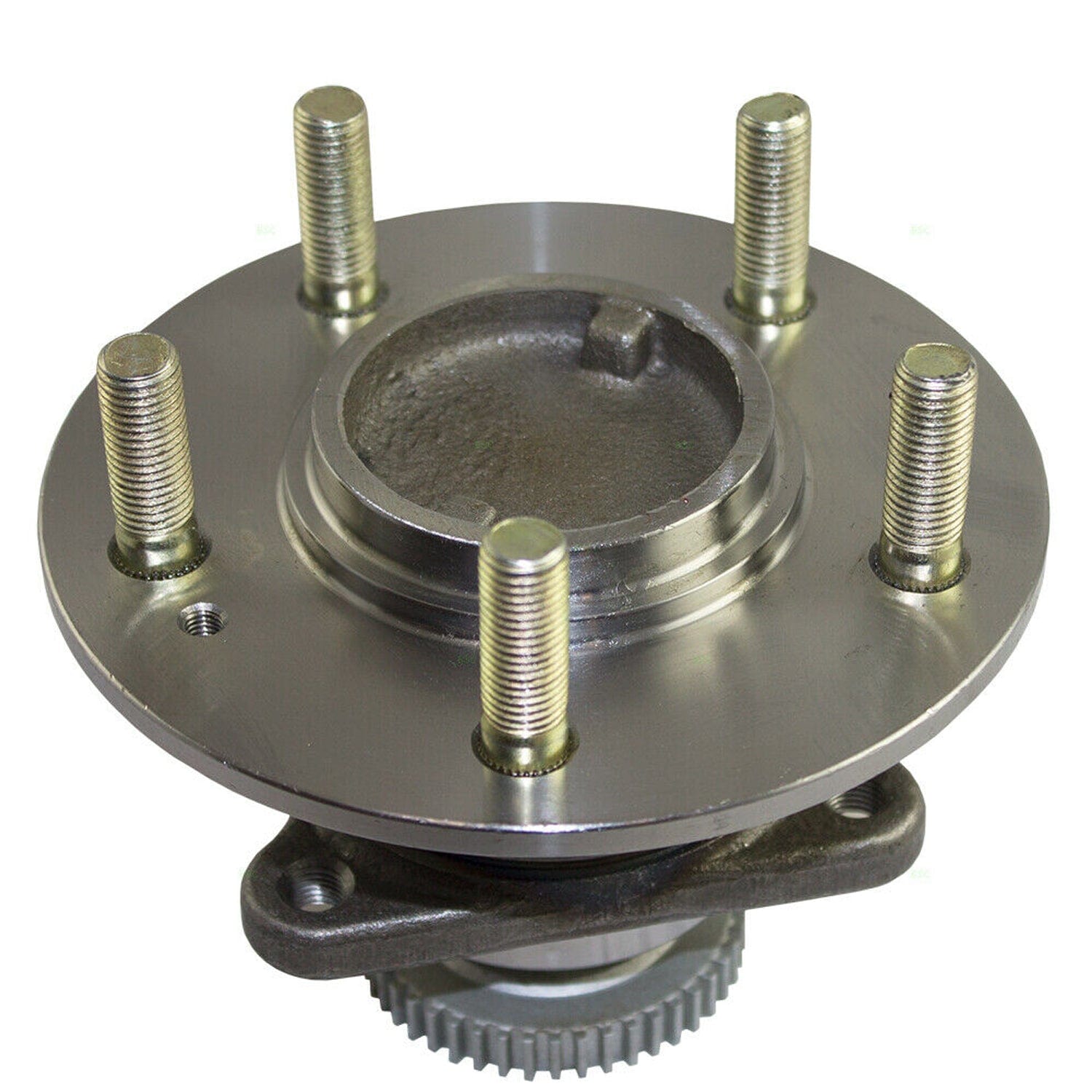

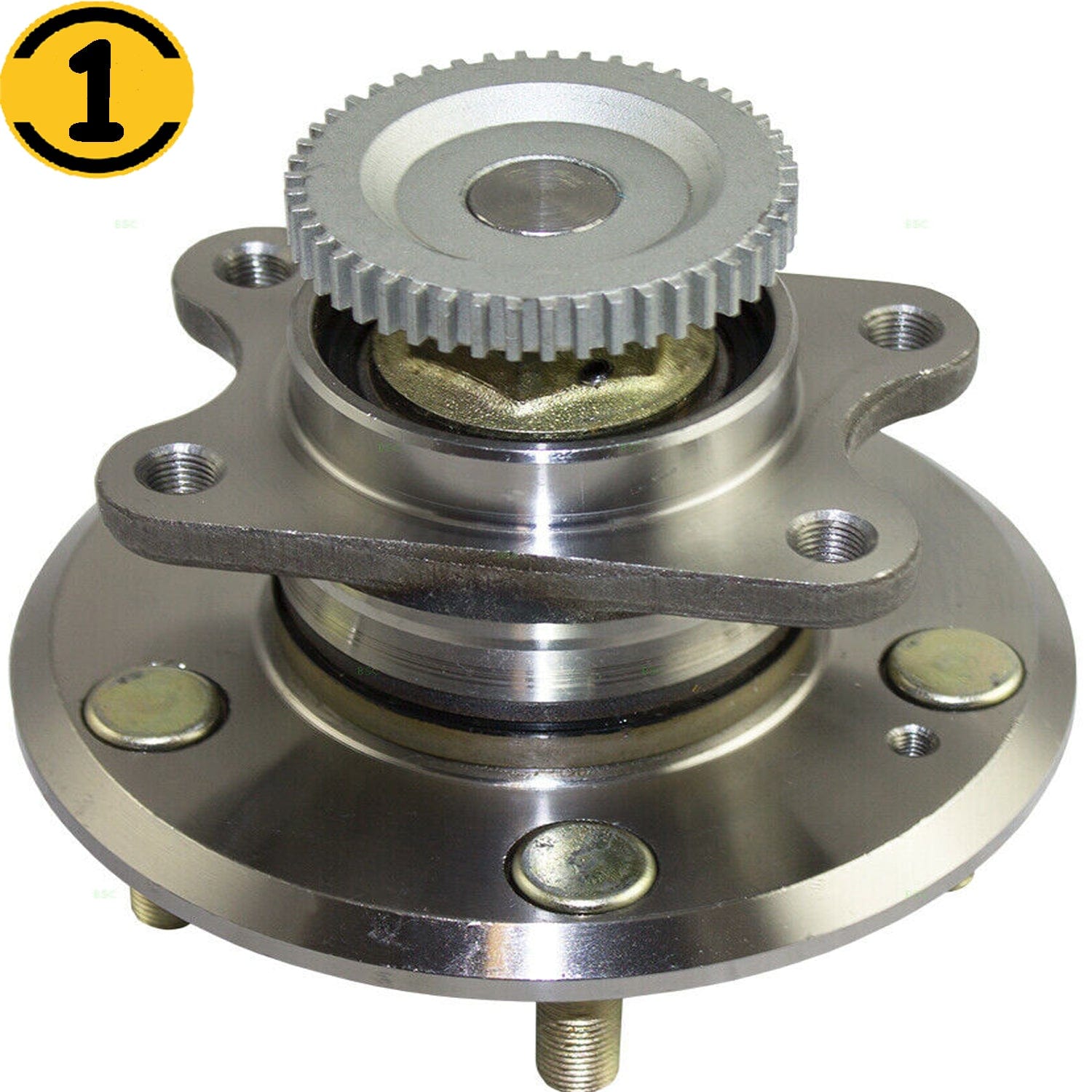

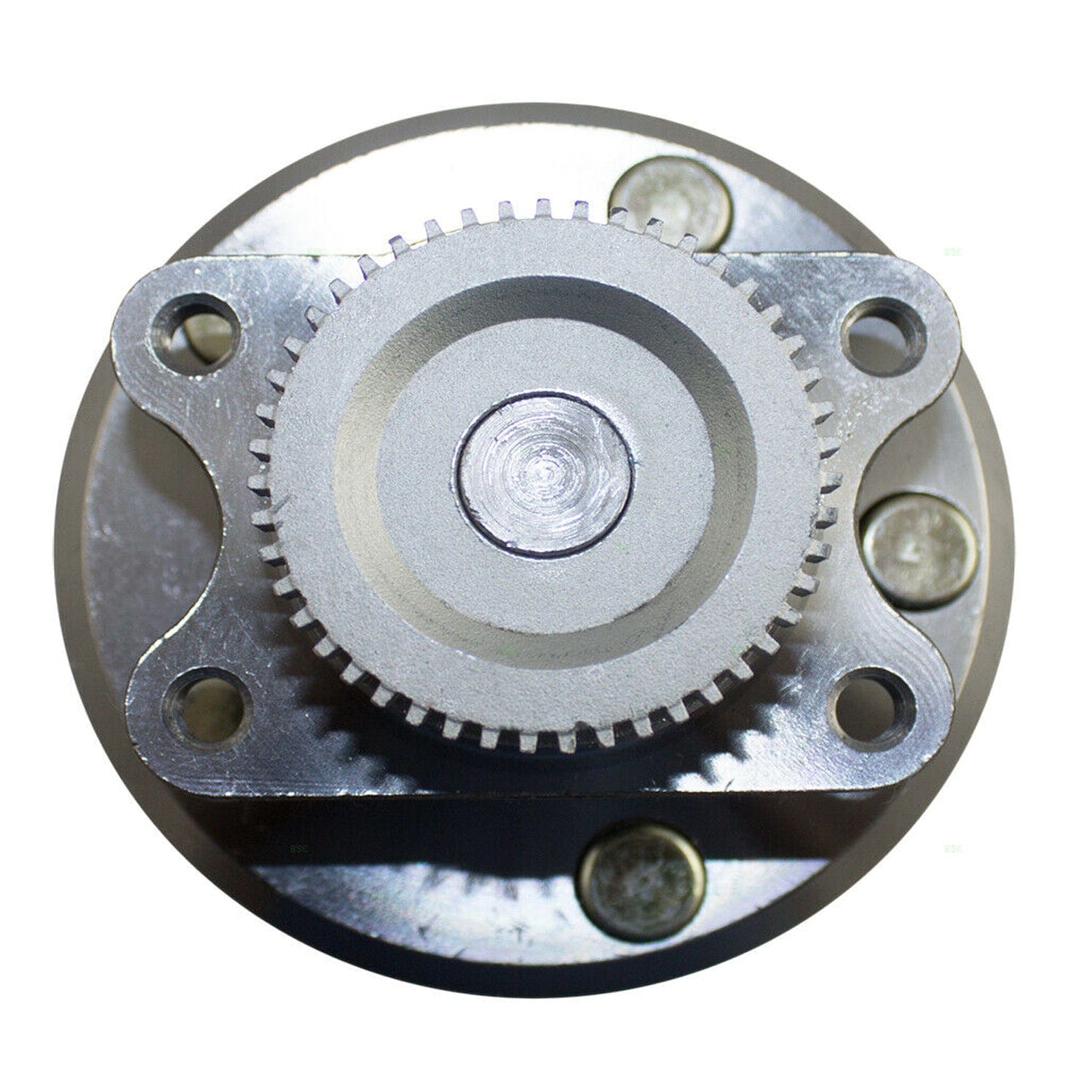

MotorbyMotor Rear Wheel Bearing Fit 2001 Hyundai XG300, 2002-2005 Hyundai XG350 Hub Bearing w/ABS 5 Lugs, 512189

MotorbyMotor Rear Wheel Bearing 512189 for 2001 Hyundai XG300 & 2002-2005 Hyundai XG350

Rear wheel bearing with ABS sensor, fits driver or passenger side. Compatible with Hyundai XG300 (2001) and XG350 (2002-2005). Steel ball bearing design ensures durability.

What's Included

• Rear Wheel Bearing Assembly (Part #512189)
• ABS Sensor Included
• 5 Lug Bolts
• 4 Flange Bolts

Product Specifications

• Position: Driver (LH) or Passenger (RH) Side Rear
• ABS Sensor: Yes
• Mounting Bolts to Knuckle: 4
• Lug Bolts Included: 5 (M12-1.50 thread)
• Flange Bolts Included: 4 (M10-1.25 thread)
• Driven: Non-Driven
• ABS Ring Type: Tone, 29 Teeth
• Total Hub Diameter: 5.826 in (148 mm)
• Hub Centerbore Diameter: 4.5 in (114.3 mm)
• Total Hub Height: 5.334 in (135.5 mm)
• Flange Diameter: 5.826 in (148 mm)
• Flange Offset: 2.322 in (59 mm)
• Flange Shape: Rectangle
• Flange Bolt Size: 1.437 in (36.5 mm)
• Material: Steel
• Bearing Type: Ball
• Outer Ring Width: 2.3 in
• Inner Ring Width: 0.61 in
• Hub Pilot Diameter: 2.59 in (65.9 mm)

Vehicle Compatibility
