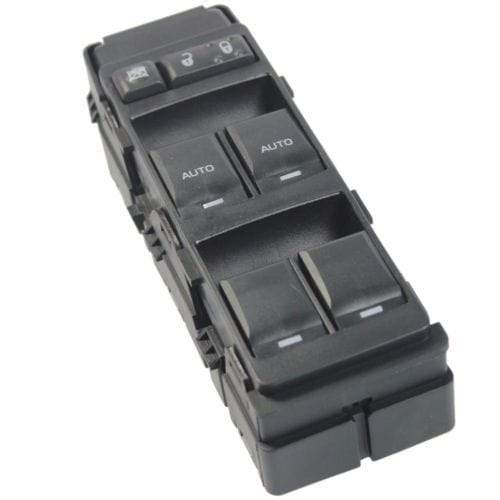

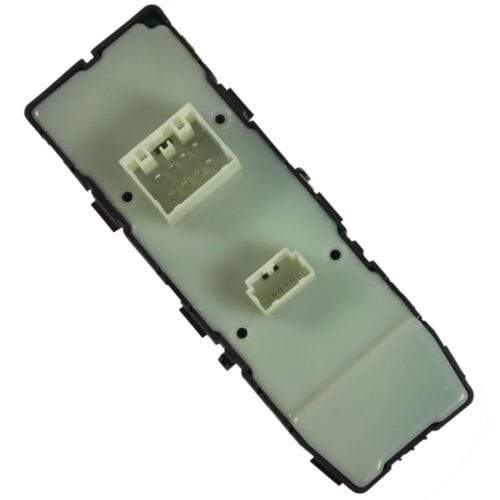

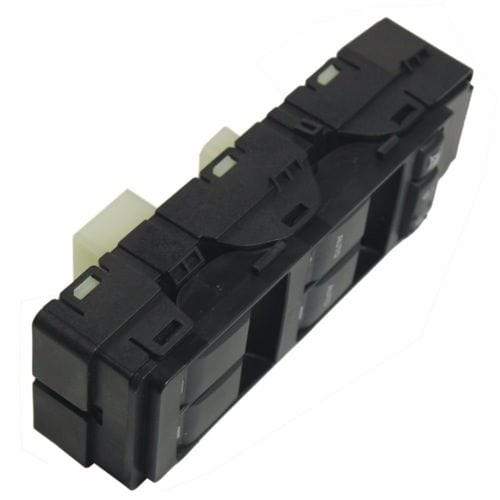

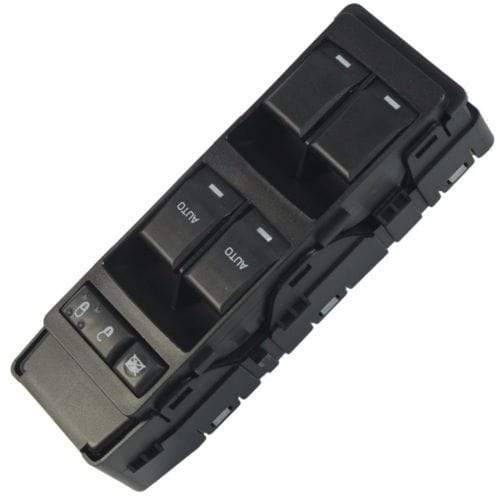

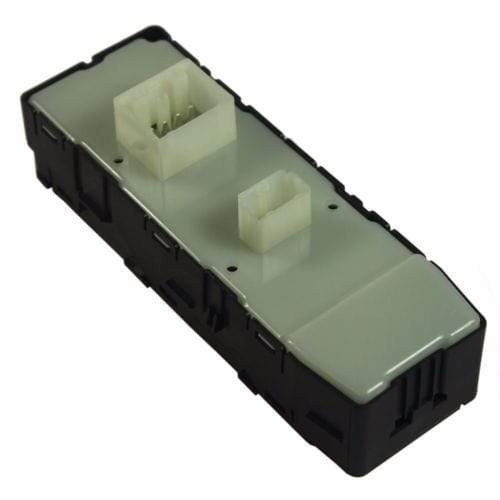

New Master Power Window Switch Driver Side Left LF LH For Chrysler Dodge Jeep
Regular price
$20.99
Product description:
Fits LH (Driver Side) FRONT
6 Button Switch
(4) - Power Window Buttons
FRONT with Auto Up/Down
(1) - Lockout Button
(1) - Door Lock Button
Direct replacement
Built to strict quality control standards
Correct for models with Auto Up/Down on BOTH front windows ONLY
Our electrical and electronic parts are subject to strict quality control testing . Once the item has been installed or plugged in, The item may be eligible for replacement, if it is found to have a manufacturing defect. Before purchasing, please ensure proper diagnosis of the failed original part is performed
Installation Instruction
STEP 1: REMOVING THE DOOR PANEL
Pry out the trim piece inside the door handle
Remove the Phillips screw behind the handle
Remove the tan circle clips by pressing in the center and prying out the clip
Remove the four Phillips head screws on the bottom of the panel
Pry out the panel below the door pull
Pry out the door panel with a door panel clip tool or putty knife
Release the door handle cable by popping the clip, rotating the handle, and popping the hook out
Disconnect the window switch wiring harnesses
Pop out the wire harness retainers
Unplug the courtesy light and its wire retainers
Lift the door panel up and off
STEP 2: REMOVING THE POWER WINDOW SWITCH
Push down on the master switch housing tabs
Pull the switches out of the door
Press the metal tab to release the switch
Remove the switch
STEP 3: REMOVING THE POWER WINDOW SWITCH
Insert the switch into the panel
Insert the switch housing into the door
Snap the window switch into the trim panel
Insert the window switch into the door panel
STEP 4: INSTALLING THE DOOR PANEL
Connect the courtesy light
Clip in the wire harness retainers
Connect the window switch wiring harnesses
Insert the latch rod into the door handle
Slide the clip over the latch rod
Lift the panel up over the door lock
Press the panel into place
Press the clips into the door panel
Tighten the four Phillips screws to the bottom of the panel
Tighten the Phillips screws beneath the door pull
Tighten the Phillips screw into the door handle
Press on the trim buttons
Tools needed for replacement:
General Tools
Pick
Screwdrivers & Related
Phillips Head Screwdriver
Specialty Tools
Trim Tool Set
