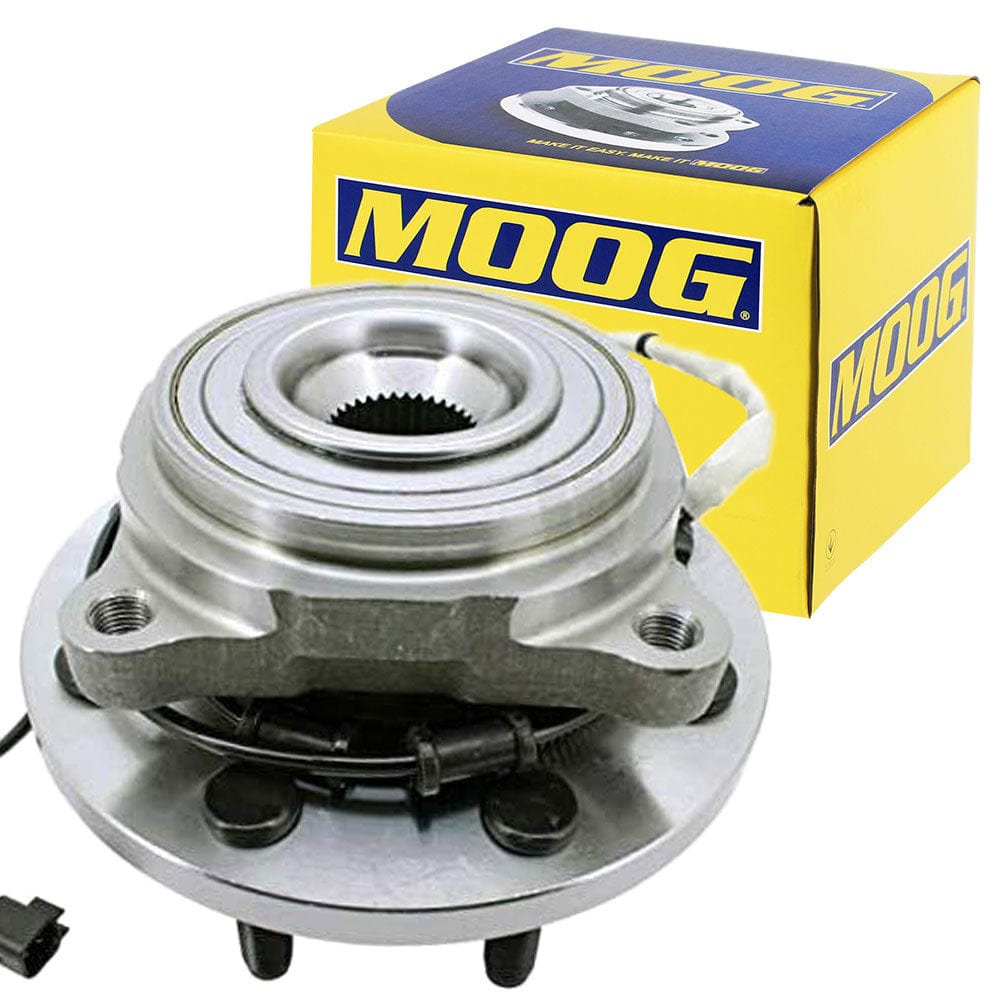

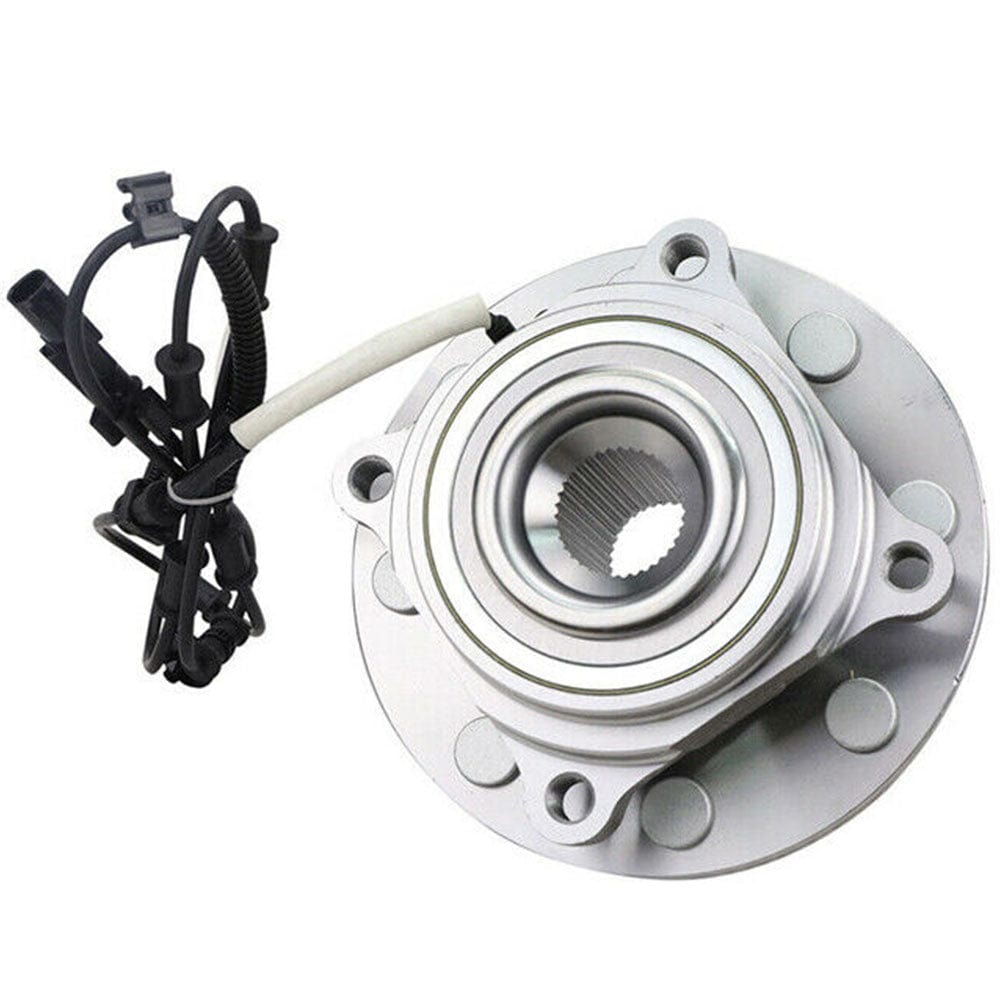

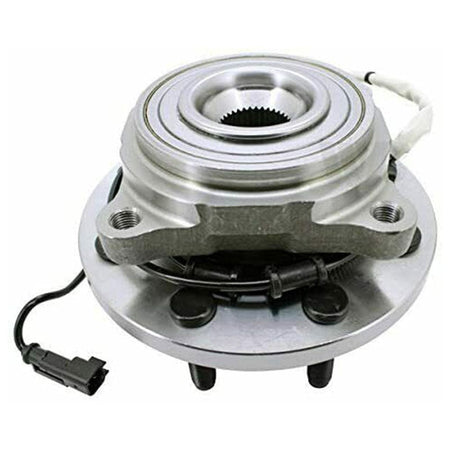

Moog 515162 Front Wheel Bearing Hub Assembly
Direct-fit front hub & bearing unit for late-model Ram heavy-duty trucks. Sealed design for quiet operation, long life, and proper ABS performance.

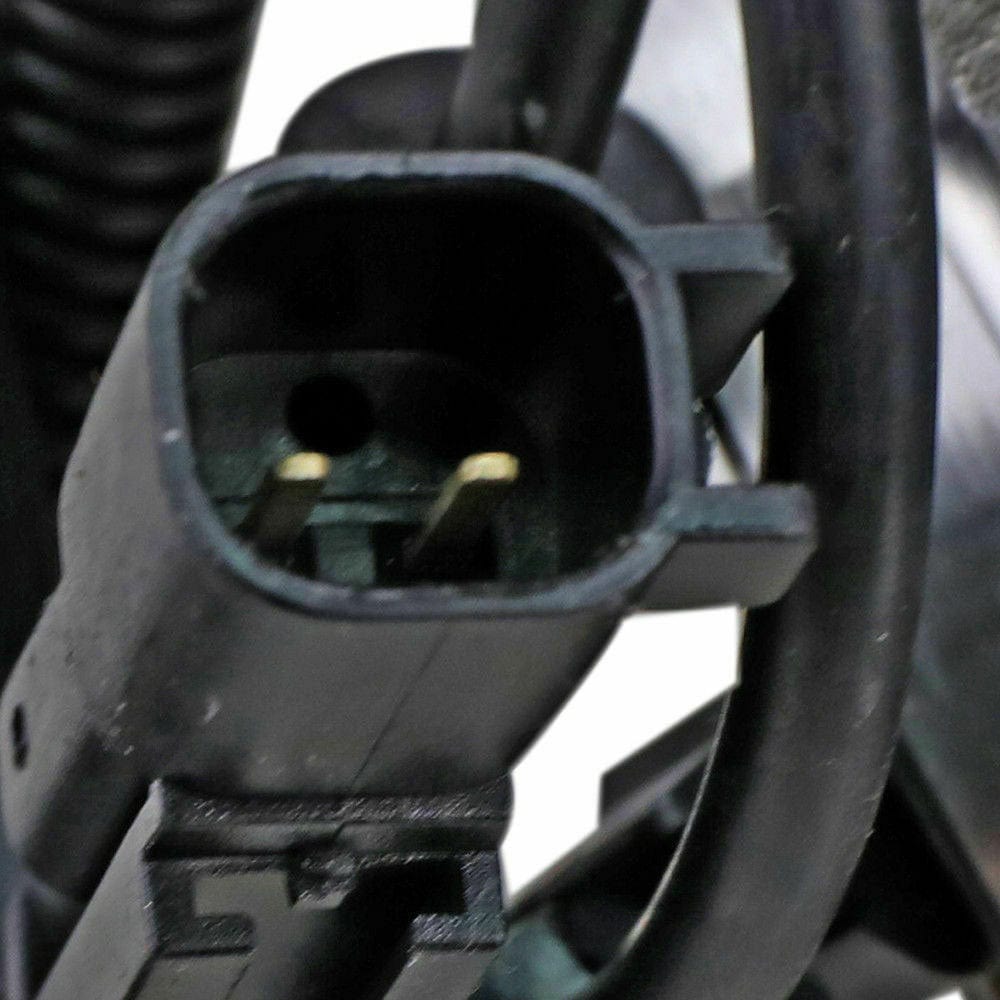

ABS sensor compatible | 8 wheel studs | 35 splines
Specifications
| Anti Lock Brake Sensor Included | Yes |
| Bolt Circle Diameter (mm) | 165.000 |
| Brake Pilot Diameter (mm) | 122.900 |
| Flange Bolt Hole Quantity | 4 |
| Flange Diameter (mm) | 205.000 |
| Flange Offset (mm) | 56.300 |
| Hub Pilot Diameter (mm) | 120.000 |
| Spline Quantity | 35 |
| Wheel Pilot Diameter (mm) | 121.000 |
| Wheel Stud Quantity | 8 |
| Position | Front (Left or Right) |
Vehicle Fitment
| Make | Model | Year(s) | Drive | Position | Notes |
| Ram | 2500 | 2014–2018 | — | Front (L/R) | 8-stud hub; verify axle/spline count |
| Ram | 3500 | 2013–2018 | — | Front (L/R) | 8-stud hub; verify axle/spline count |
What’s in the Box
- 1 × Front Wheel Bearing Hub Assembly (515162)
Installation Notes
- Confirm 8-lug wheel hub and 35-spline axle before ordering.
- Professional installation recommended; torque fasteners to factory specs.
- Road-test and recheck torque after installation.
10-Year Warranty | Ships Next Business Day | Delivery 3–7 Business Days
