Wheel Bearing Fit 06-12 Ford Fusion, 06-11 Mercury Milan, 07-12 Lincoln MKZ, 03-08 Mazda 6, 2006 Lincoln Zephyr Hub, w/ABS 5 Lugs Wheel Hub, 512271

Wheel Bearing Fit 06-12 Ford Fusion, 06-11 Mercury Milan, 07-12 Lincoln MKZ, 03-08 Mazda 6, 2006 Lincoln Zephyr Hub, w/ABS 5 Lugs Wheel Hub, 512271

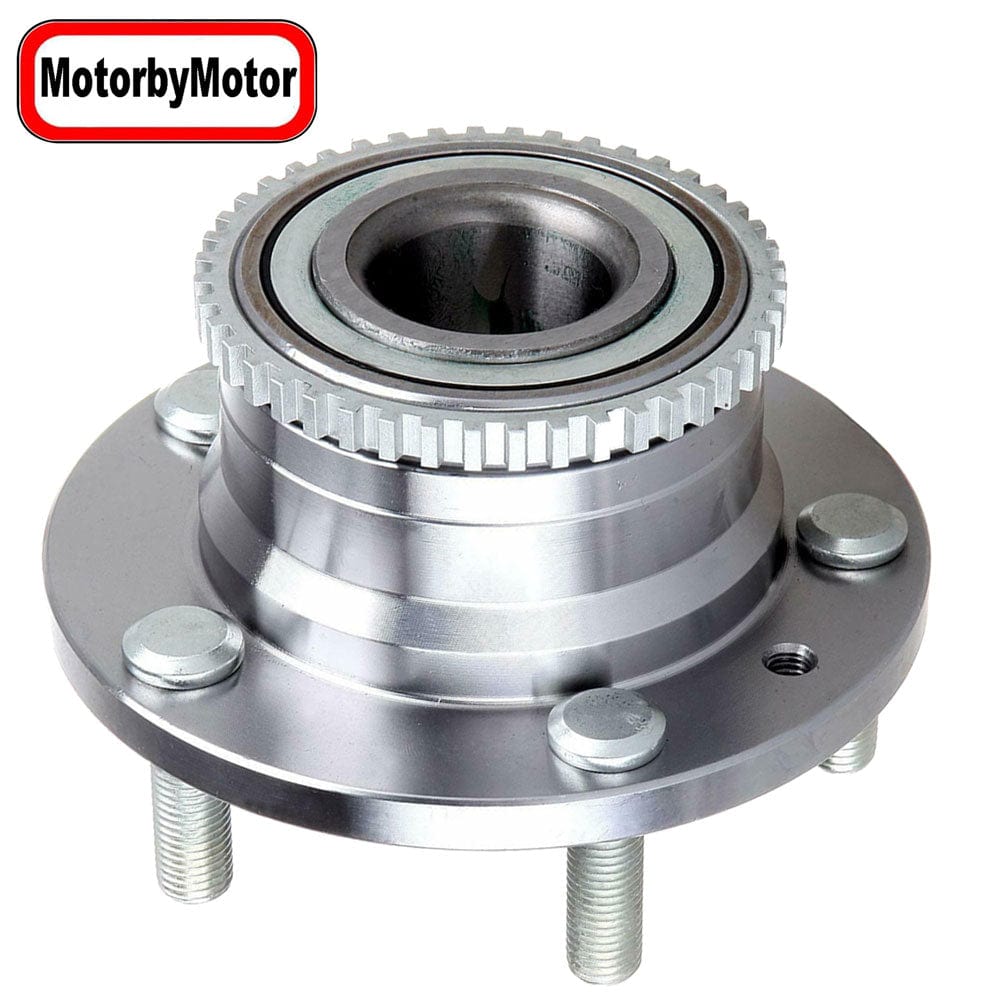

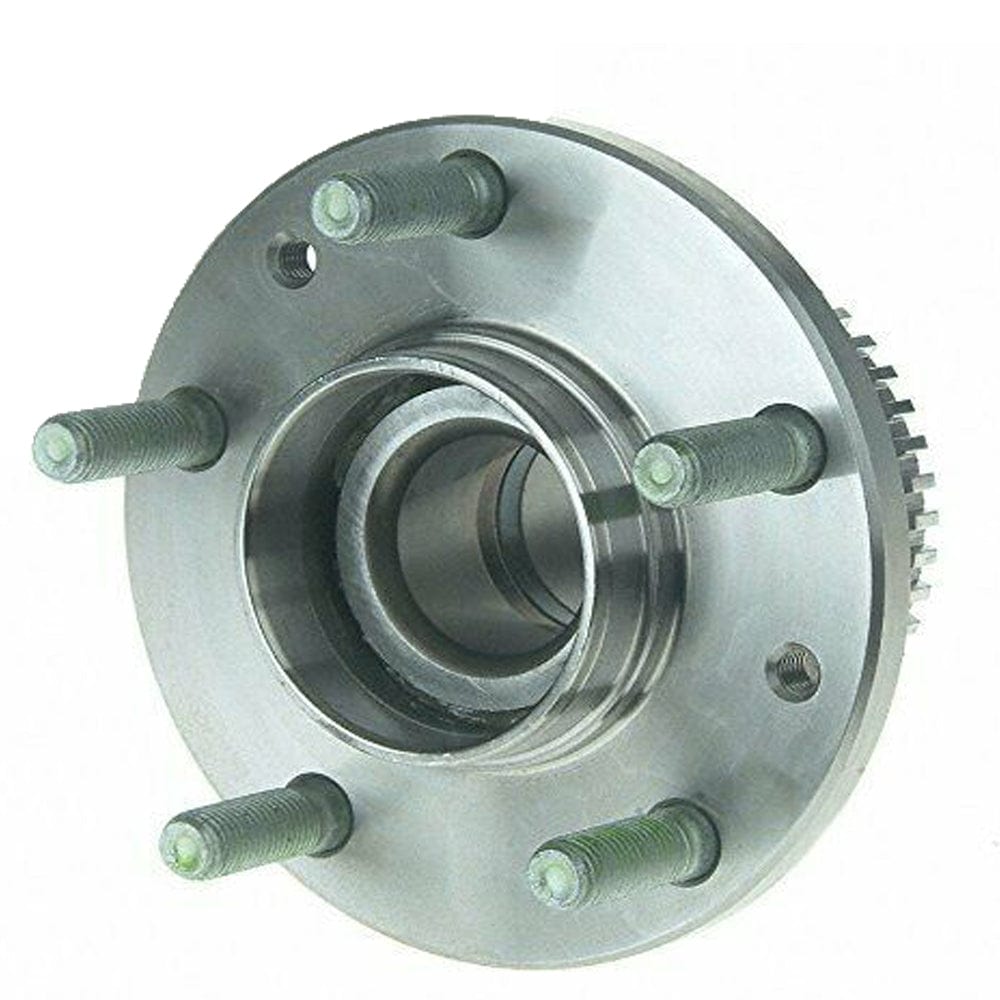

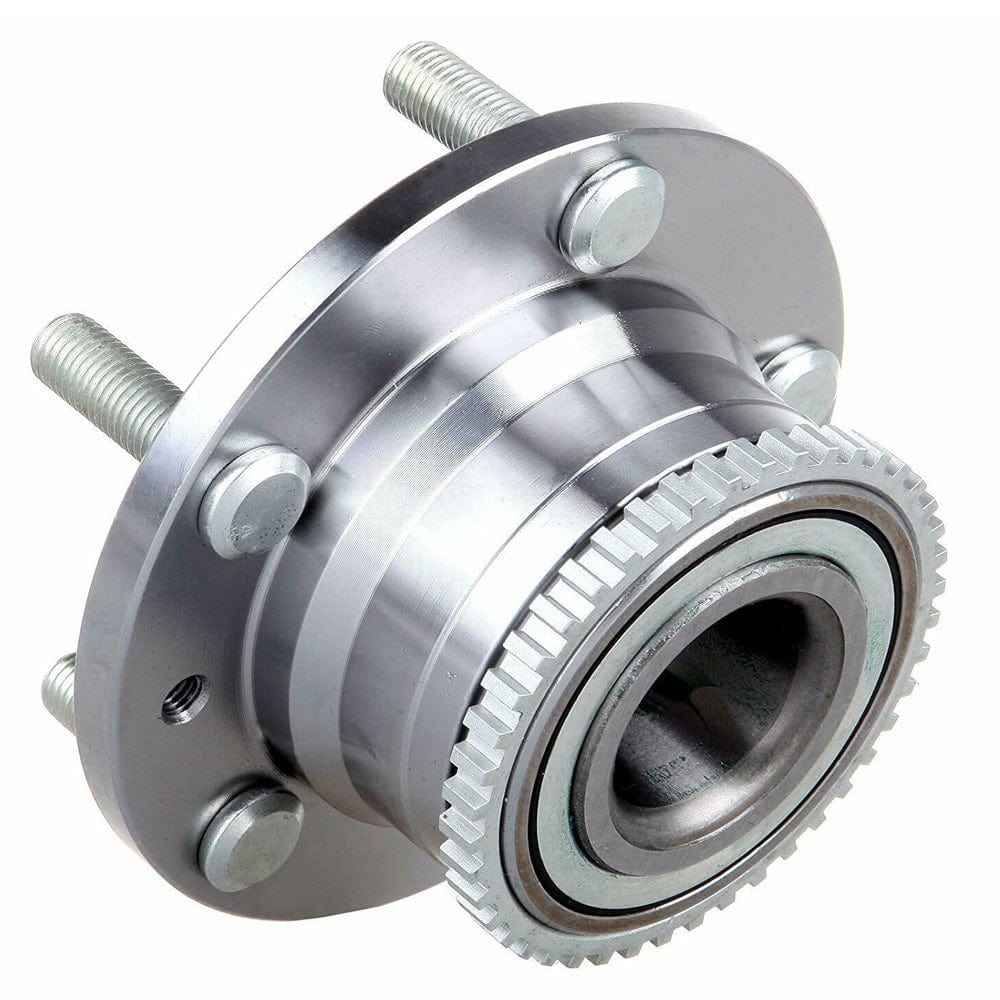

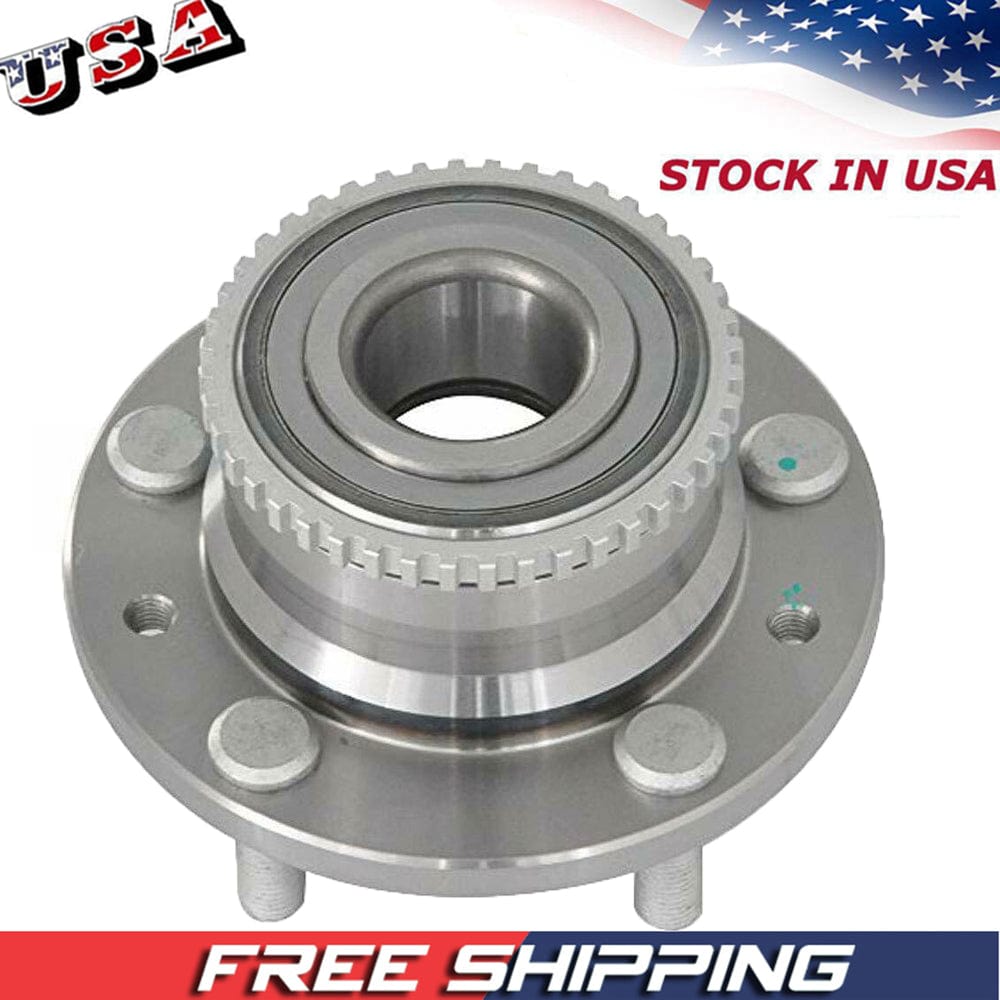

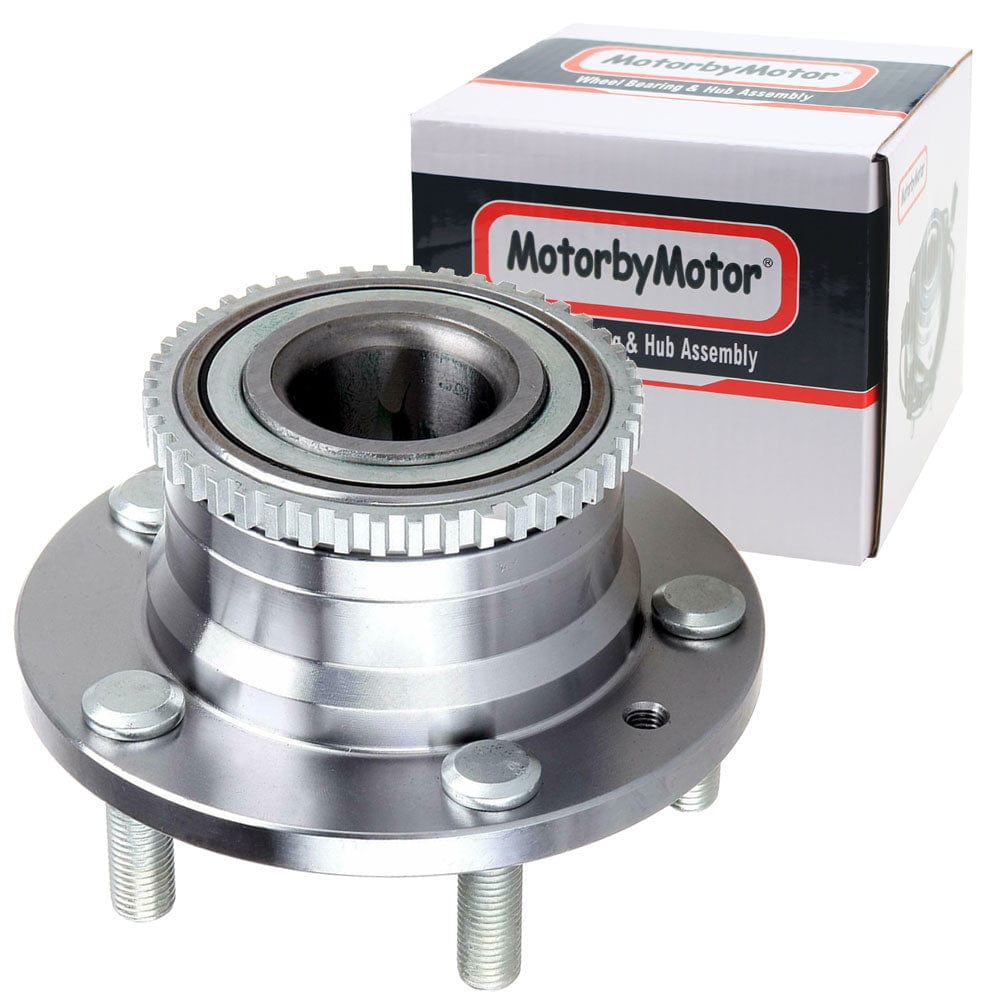

Rear wheel hub with ABS sensor, fits multiple Ford, Mercury, Lincoln, and Mazda models from 2003 to 2012. Durable steel construction with ball bearing for reliable performance.

What's Included

• 1 x Rear Wheel Hub (Driver or Passenger side)
• ABS Sensor Included
• 5 Lug Bolts Included
• Part Number: 512271

Product Specifications

• Position: Driver (LH) or Passenger (RH) Side Rear
• ABS Sensor: Yes
• Number of Lug Bolts: 5
• Driven or Non-Driven: Non-Driven
• ABS Ring Type: Tone
• ABS Sensor Ring Teeth: 44
• ABS Sensor Ring Diameter: 90 mm (3.54 in)
• Lug Bolt Thread Size: M12-1.50
• Total Hub Diameter: 140 mm (5.51 in)
• Hub Centerbore Diameter: 114.3 mm (4.5 in)
• Total Hub Height: 94.7 mm (3.73 in)
• Flange Diameter: 72 mm (2.83 in)
• Flange Offset: 61 mm (2.40 in)
• Flange Shape: Round
• Flange Bolt Size: 33.7 mm (1.33 in)
• Flange Bolt Thread Size: M12-1.50
• Material: Steel
• Bearing Type: Ball
• Hub Pilot Diameter: 36 mm (1.417 in)

Vehicle Compatibility
