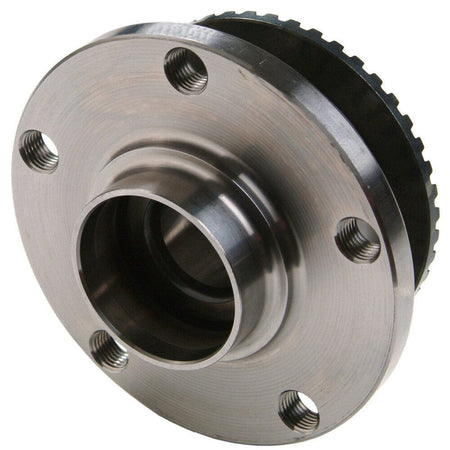

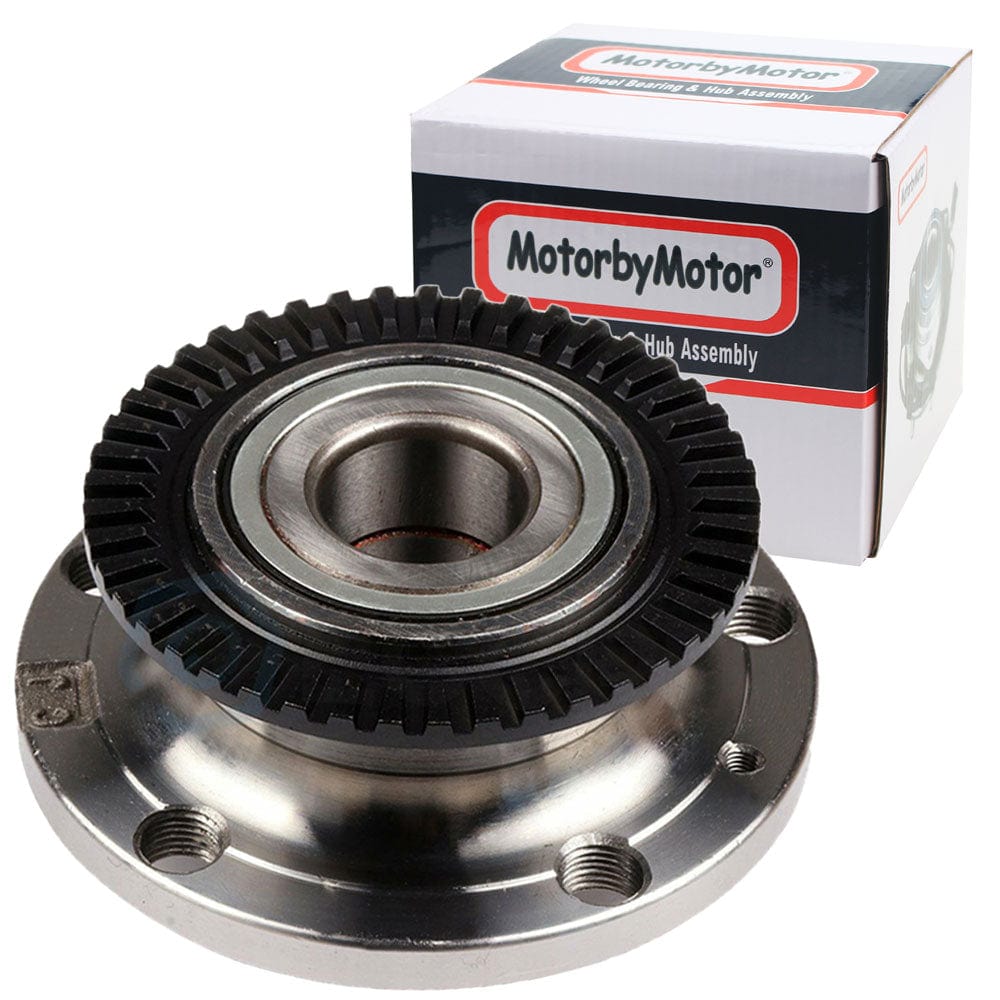

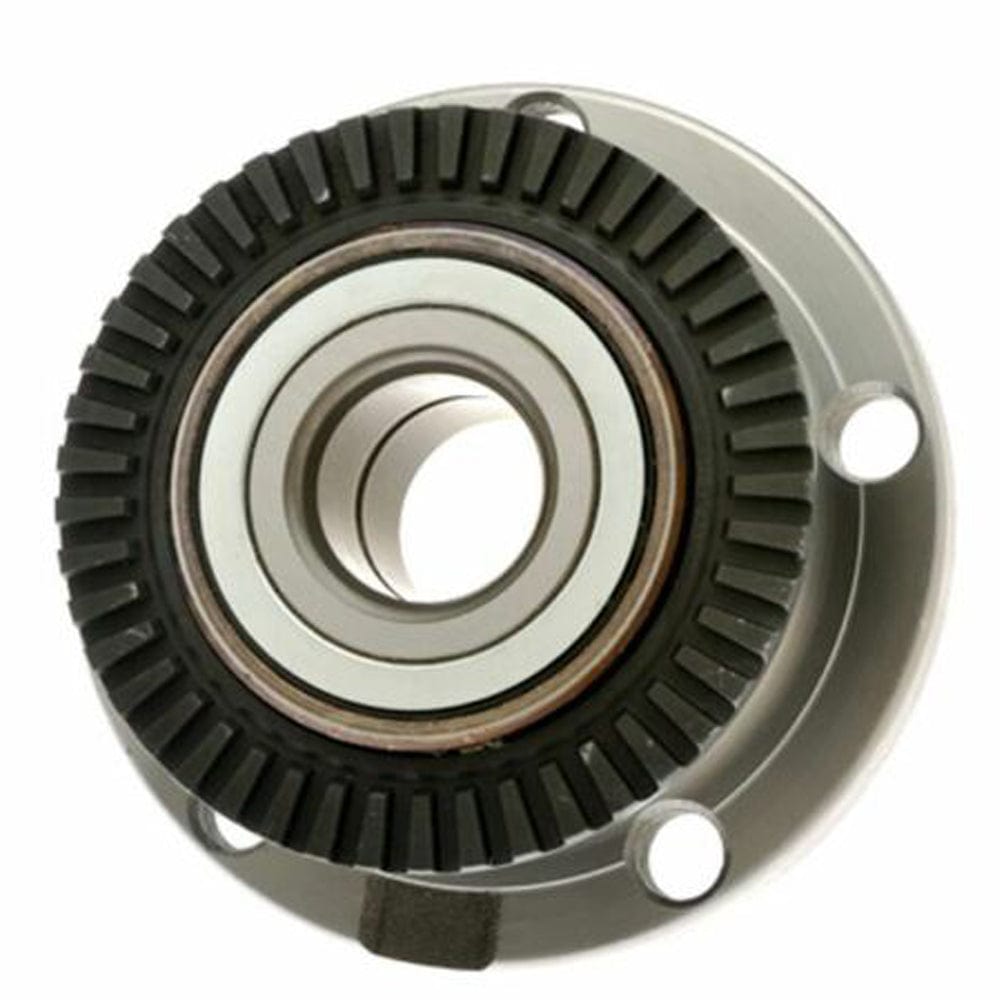

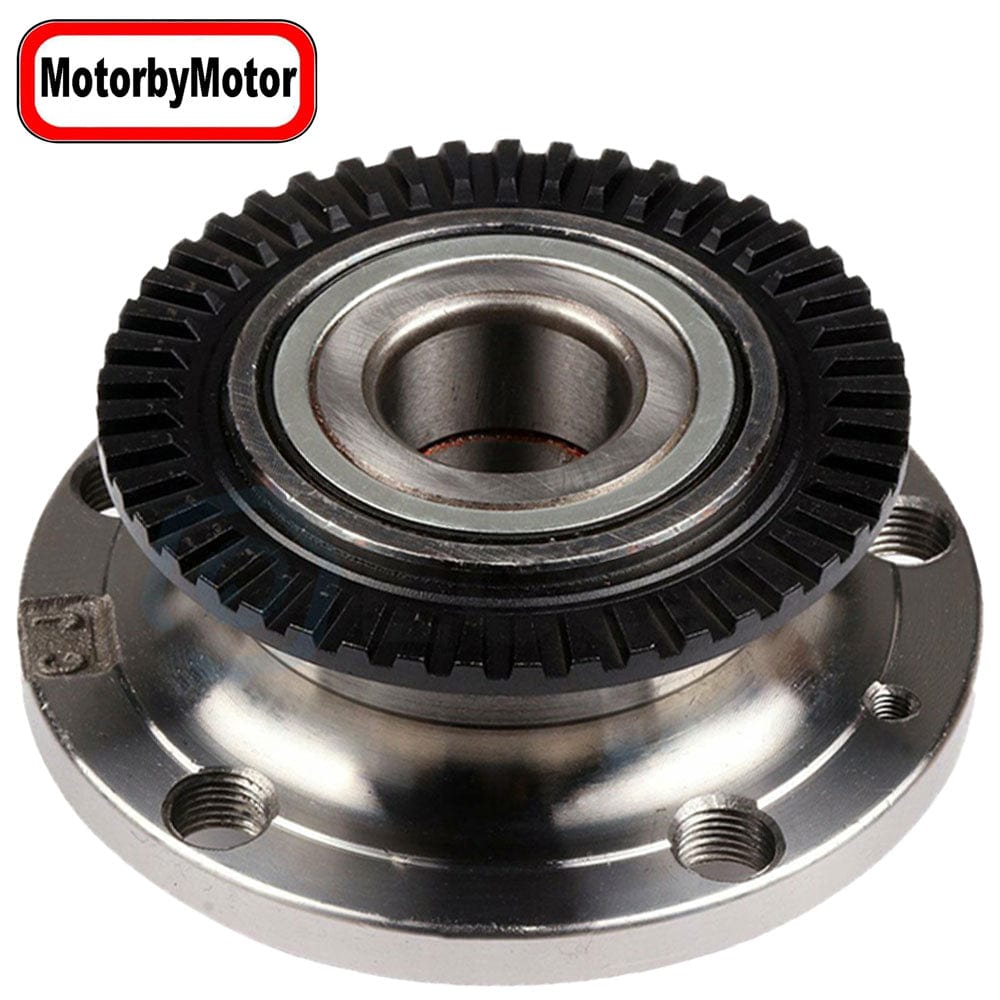

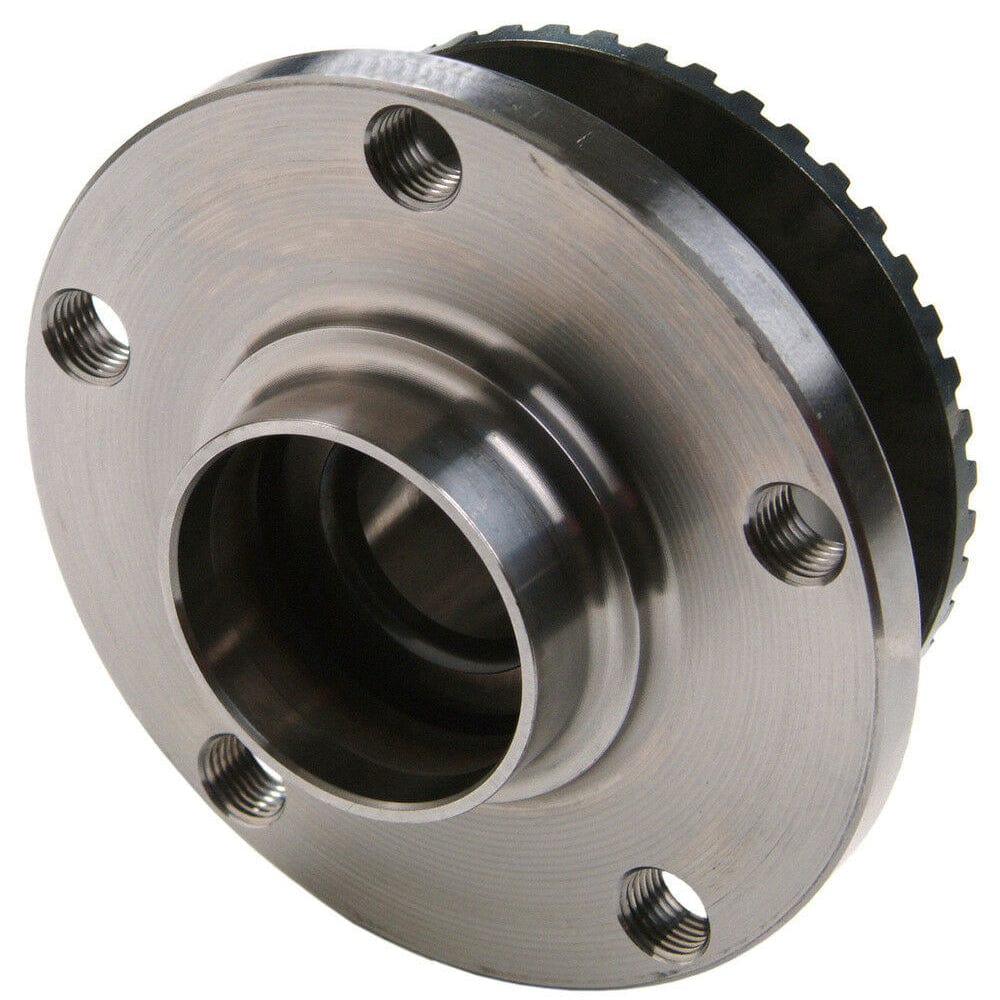

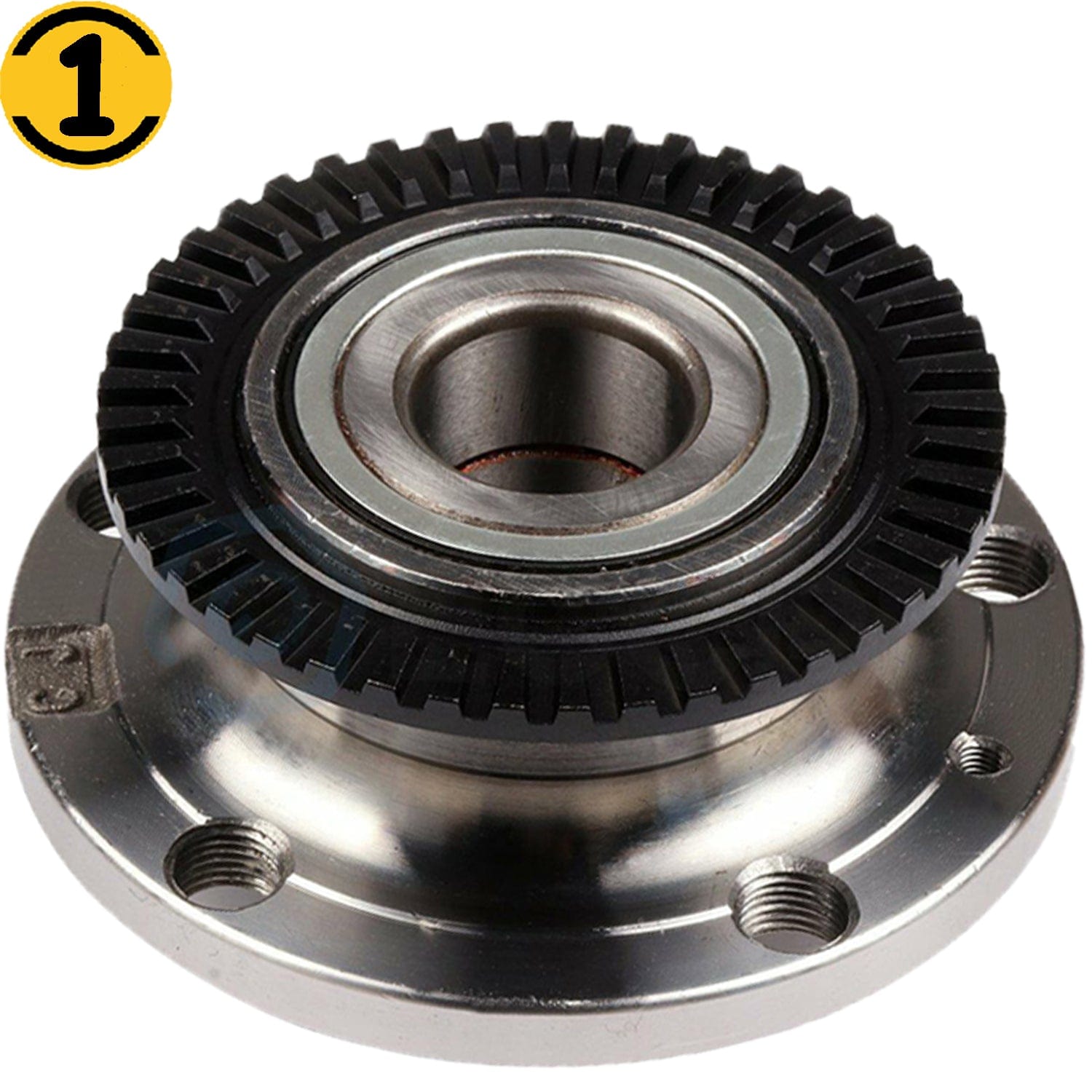

Rear Wheel Bearing Fit 2002-2007 Audi A4 Wheel Hub 2WD FWD, 512231

Fit:

2002 Audi A4 (Rear, FWD)
2003 Audi A4 (Rear, FWD)
2004 Audi A4 (Rear, FWD)
2005 Audi A4 (Rear, FWD)
2006 Audi A4 (Rear, FWD)
2007 Audi A4 (Rear, FWD)

Description:
Position:Driver (LH Left) or Passenger(RH Right) Side Rear
Wiring Harness Included: No
Number Of Mounting Bolts To Knuckle: 0
Number Of Lug Bolts Included: 5
Number Of Flange Bolts Included: 0
Driven Or Non-Driven: Non-Driven
Number Of Splines: 0
ABS Ring Type: Tone
Number Of ABS Sensor Ring Teeth: 45
ABS Sensor Ring Diameter (mm): 106.8mm
ABS Sensor Ring Diameter (in): 4.2 Inch
Total Hub Diameter (in): 5.15 Inch
Total Hub Diameter (mm): 130.9mm
Hub Centerbore Diameter (in): 4.41 Inch
Hub Centerbore Diameter (mm): 112mm
Total Hub Height (in): 2.73 Inch
Total Hub Height (mm): 69.3mm
Flange Diameter (in): 2.68 Inch
Flange Diameter (mm): 67.95mm
Flange Offset (in): 1.86 Inch
Flange Offset (mm): 47.2mm
Flange Shape: Round
Flange Bolt Thread Size: M14-1.50
Material: Steel
Bearing Type: Ball
Hub Pilot Diameter (in): 3.15 Inch
Hub Pilot Diameter (mm): 80mm
