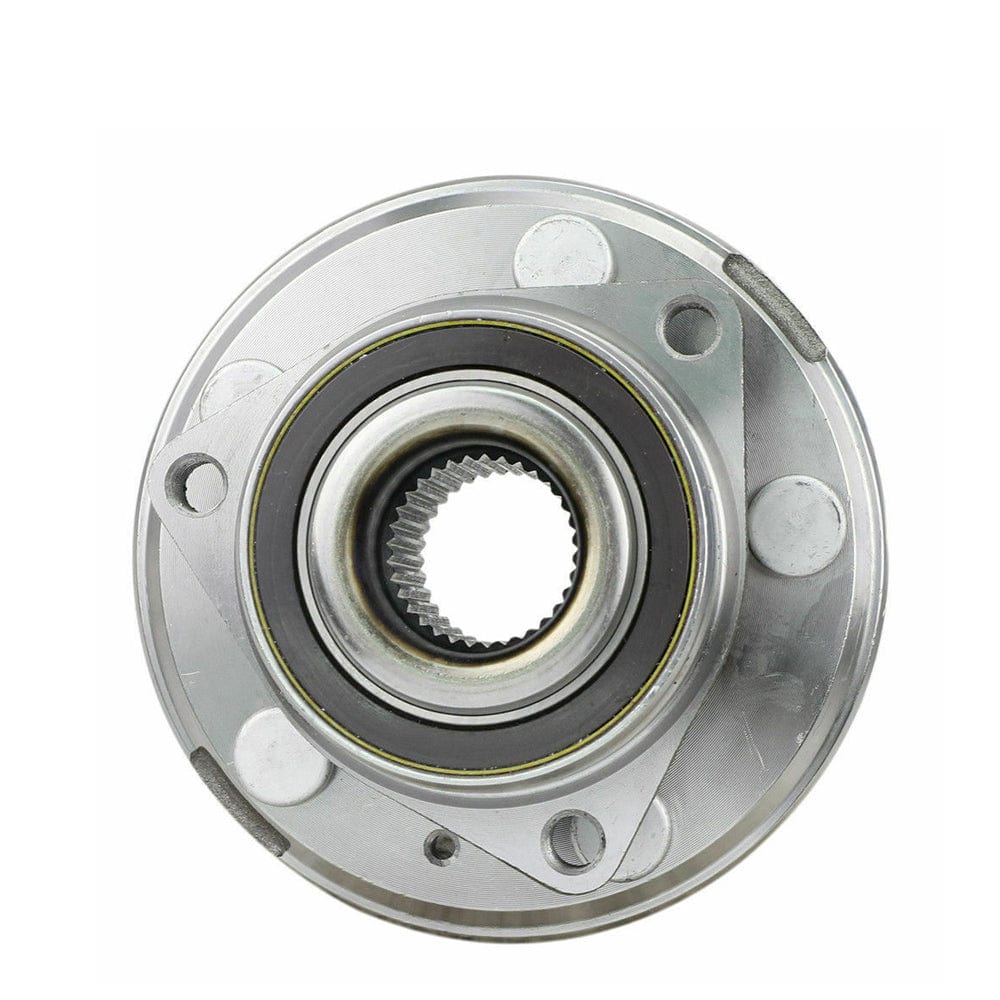

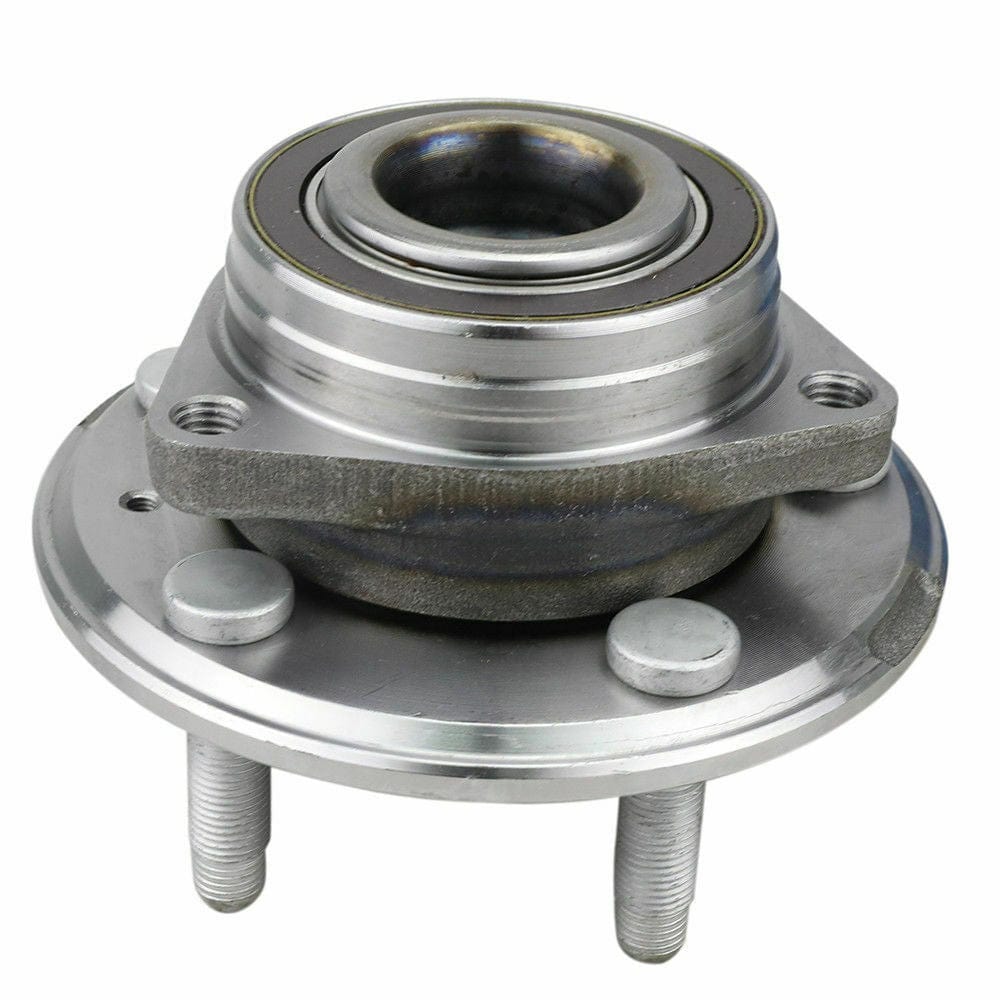

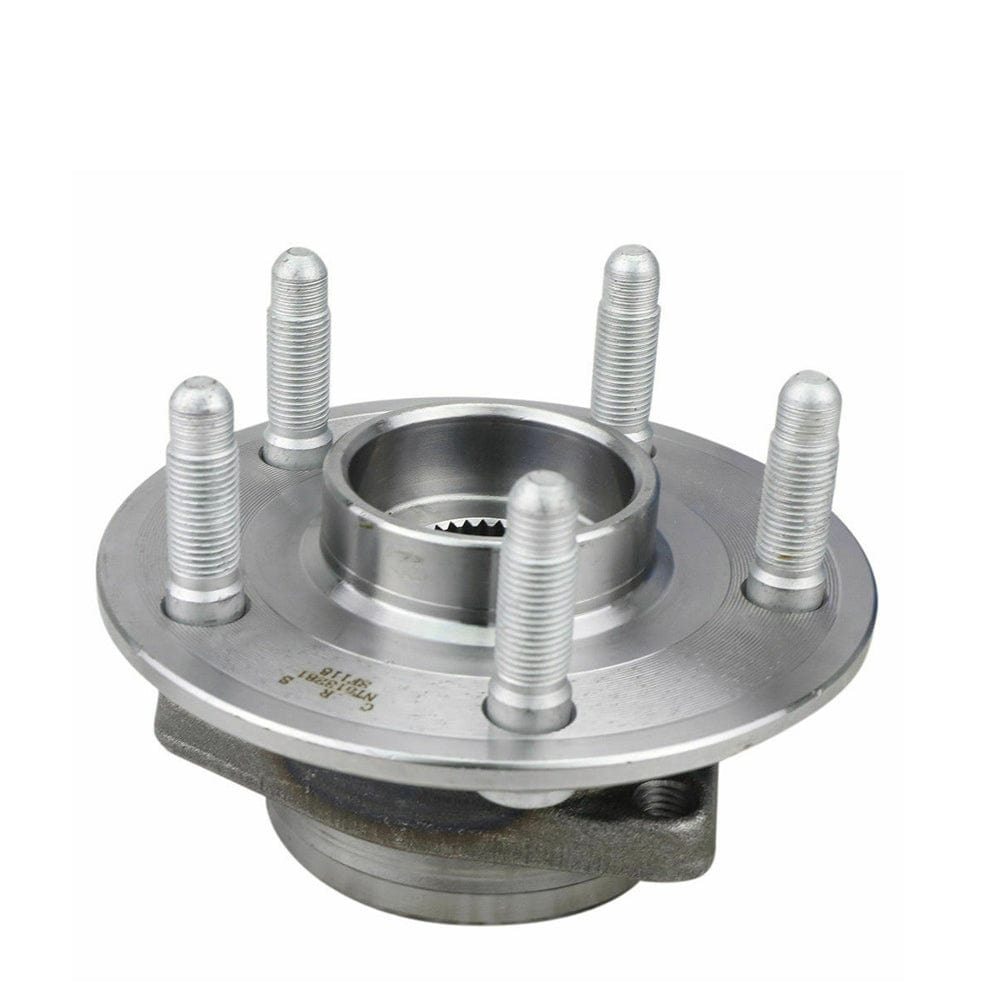

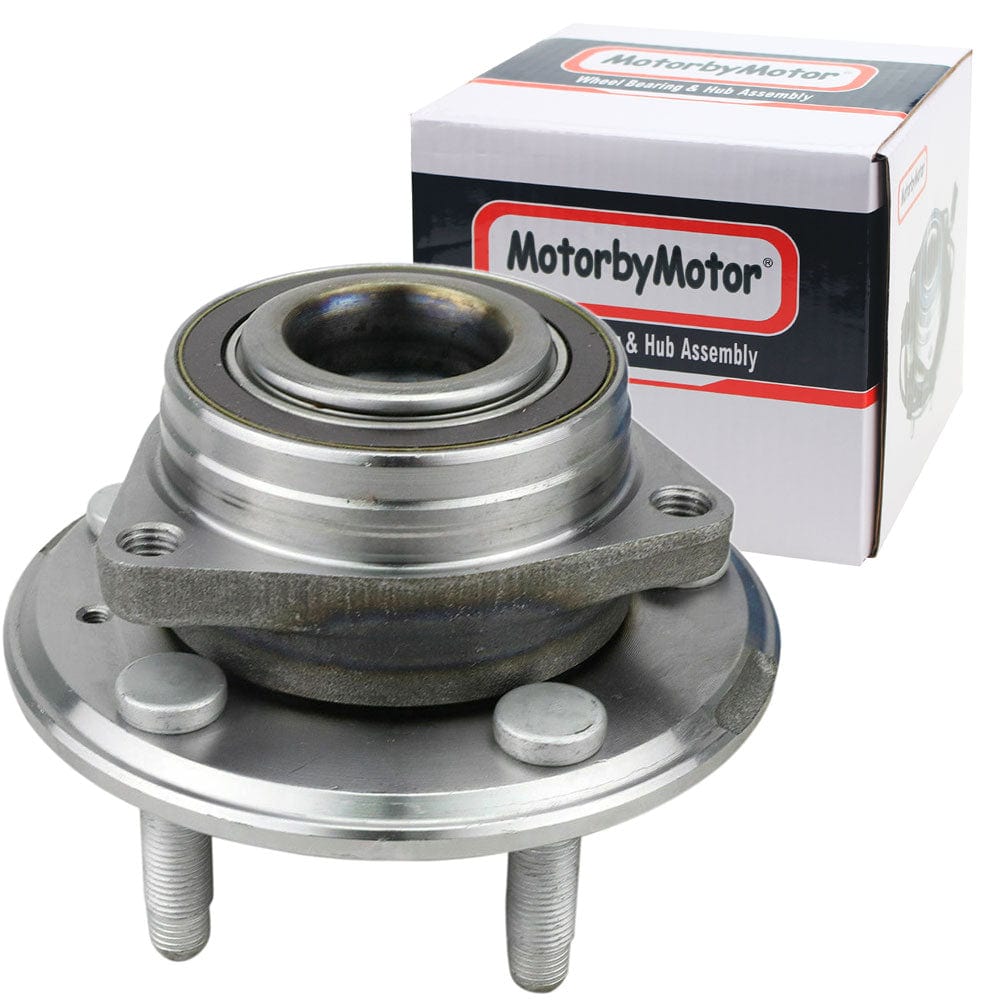

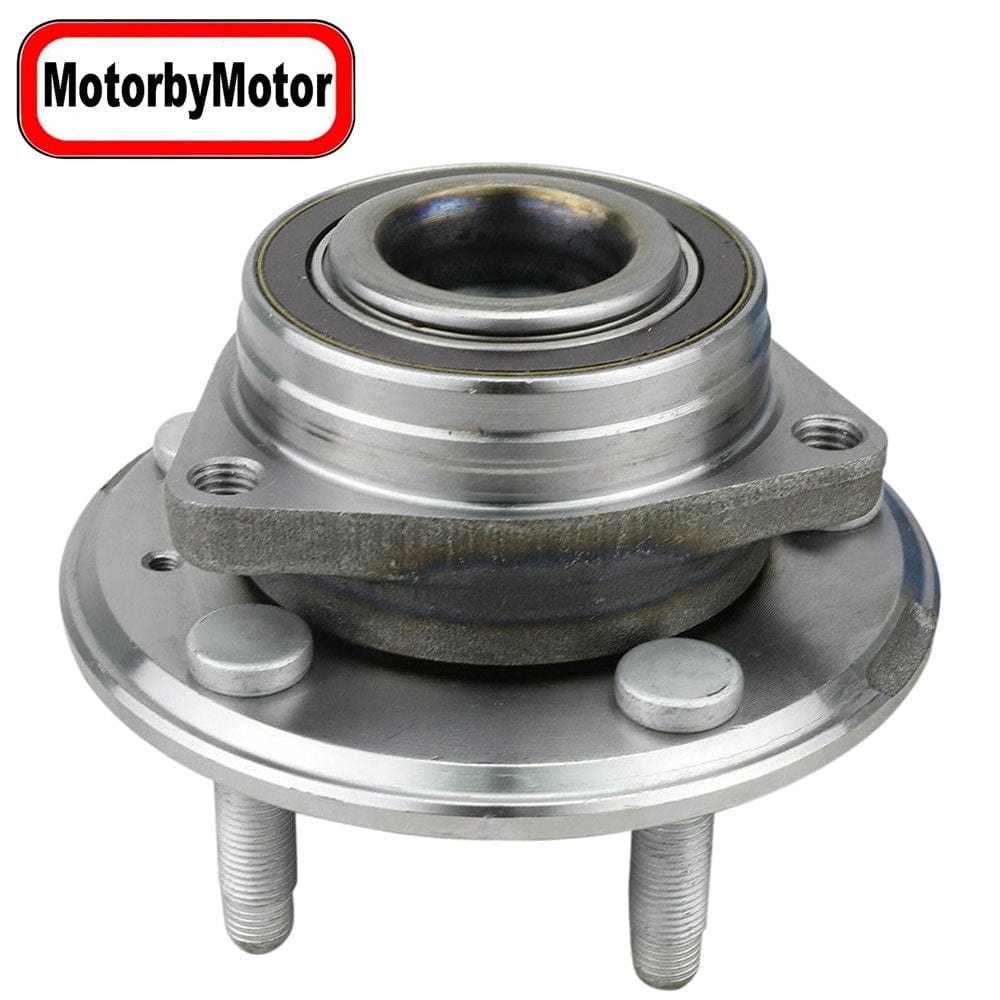

Rear Wheel Bearing Fit 2009-2015 Cadillac CTS, 2012-2015 Chevrolet Camaro Wheel Hub w/ABS,5 Lugs, 513281

Rear Wheel Bearing Fit 2009-2015 Cadillac CTS, 2012-2015 Chevrolet Camaro Wheel Hub w/ABS,5 Lugs, 513281

Fit:
2009 2010 2011 2012 2013 2014 2015 Cadillac CTS
2012 2013 2014 2015 Chevrolet Camaro

Description:
Position:Driver(LH Left) or Passenger(RH Right) Side Rear
ABS Sensor Included: Yes
Wiring Harness Included: No
Number Of Mounting Bolts To Knuckle: 3
Number Of Lug Bolts Included: 5
Driven Or Non-Driven: Driven
Number Of Splines: 33
ABS Ring Type: Magnetic
Lug Bolt Thread Size: M14-1.50
Total Hub Diameter (in): 6.185 Inch
Total Hub Diameter (mm): 157.099mm
Total Hub Height (in): 4.53 Inch
Total Hub Height (mm): 115.062mm
Flange Diameter (in): 6.185 Inch
Flange Diameter (mm): 157.1mm
Flange Offset (in): 1.653 Inch
Flange Offset (mm): 41.986mm
Flange Shape: Triangle
Flange Bolt Thread Size: M12-1.75
Material: Steel
Bearing Type: Ball
Hub Pilot Diameter (in): 3.57 Inch
Hub Pilot Diameter (mm): 90.678mm
