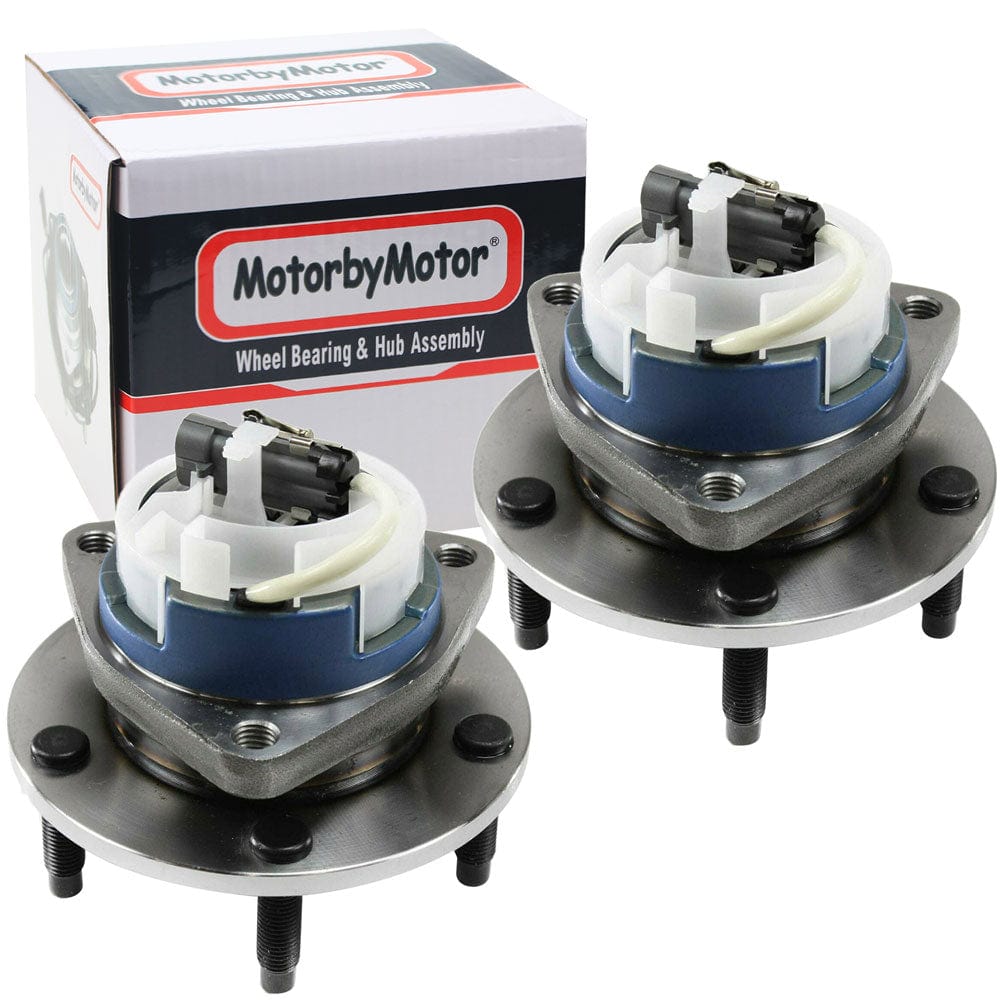

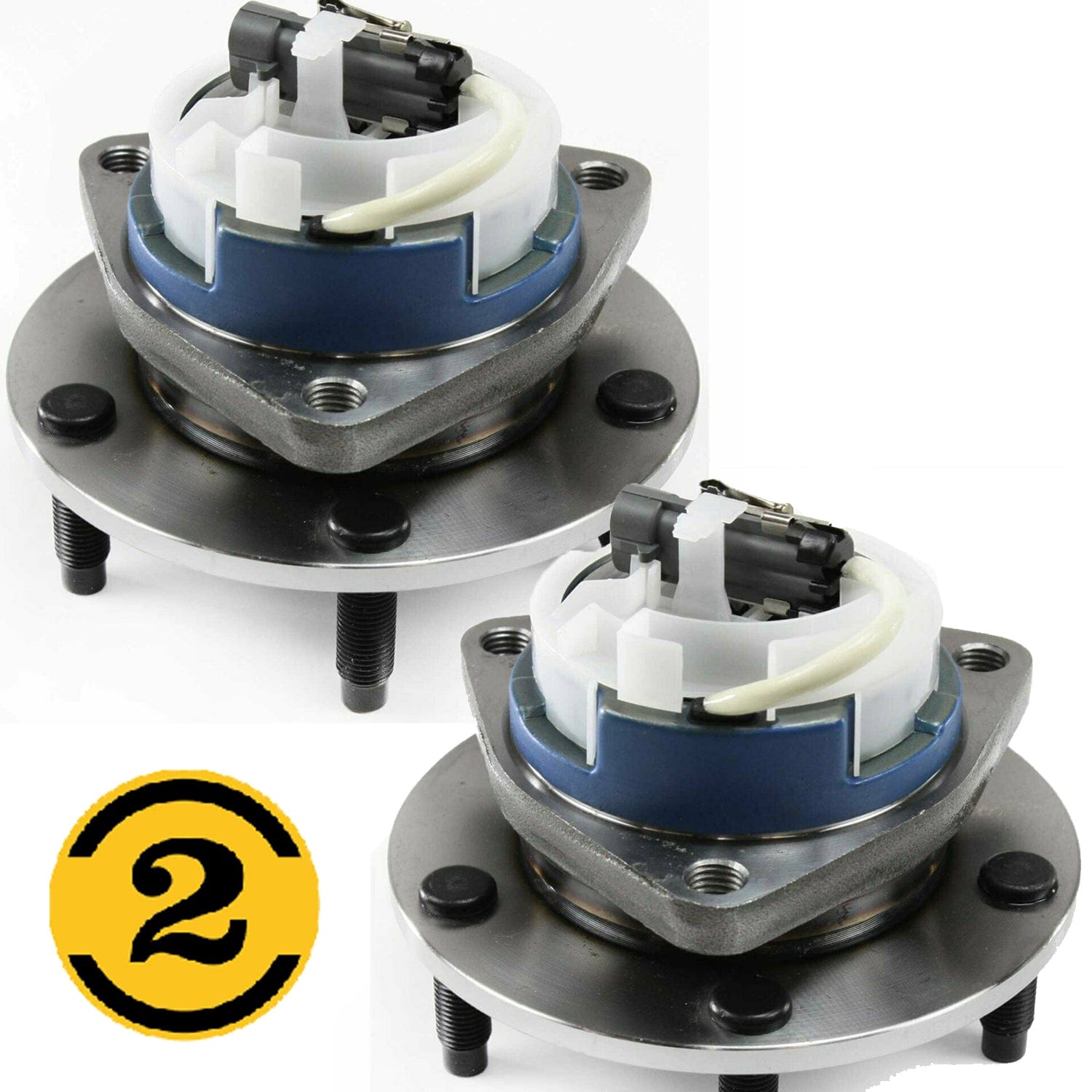

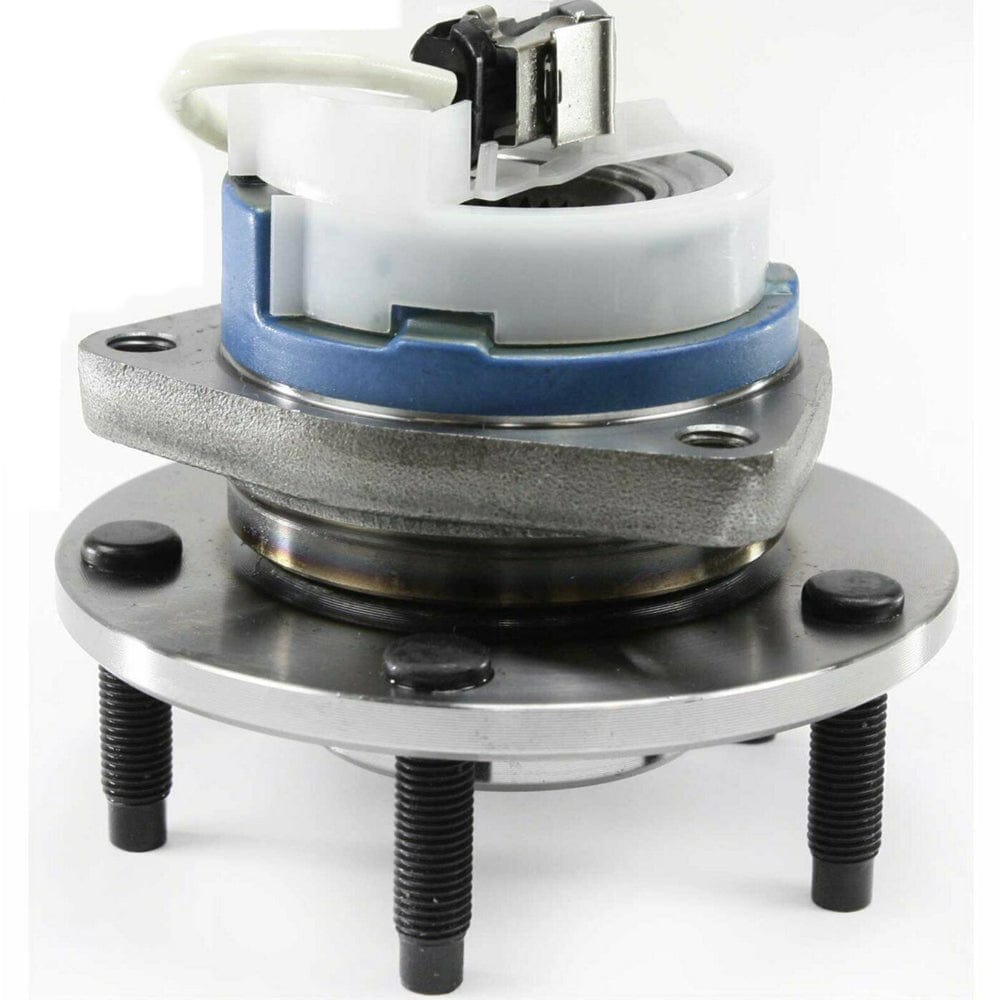

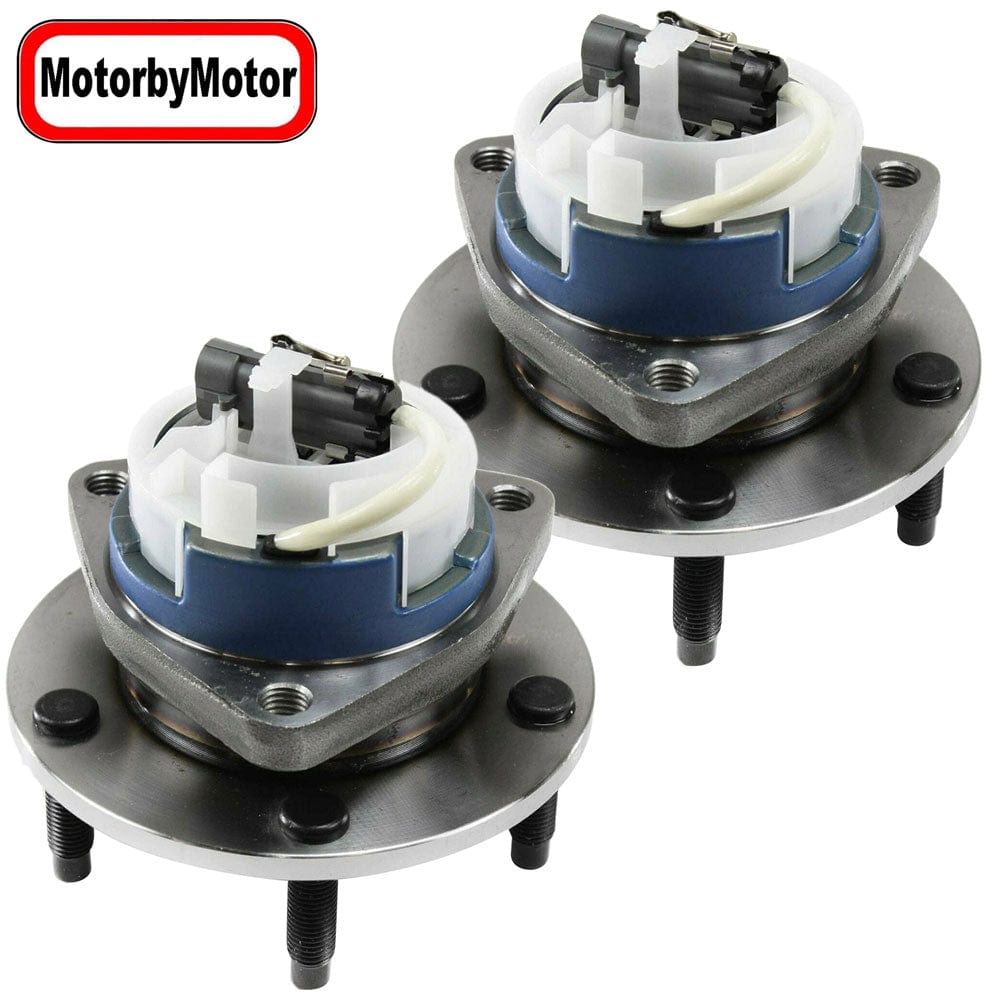

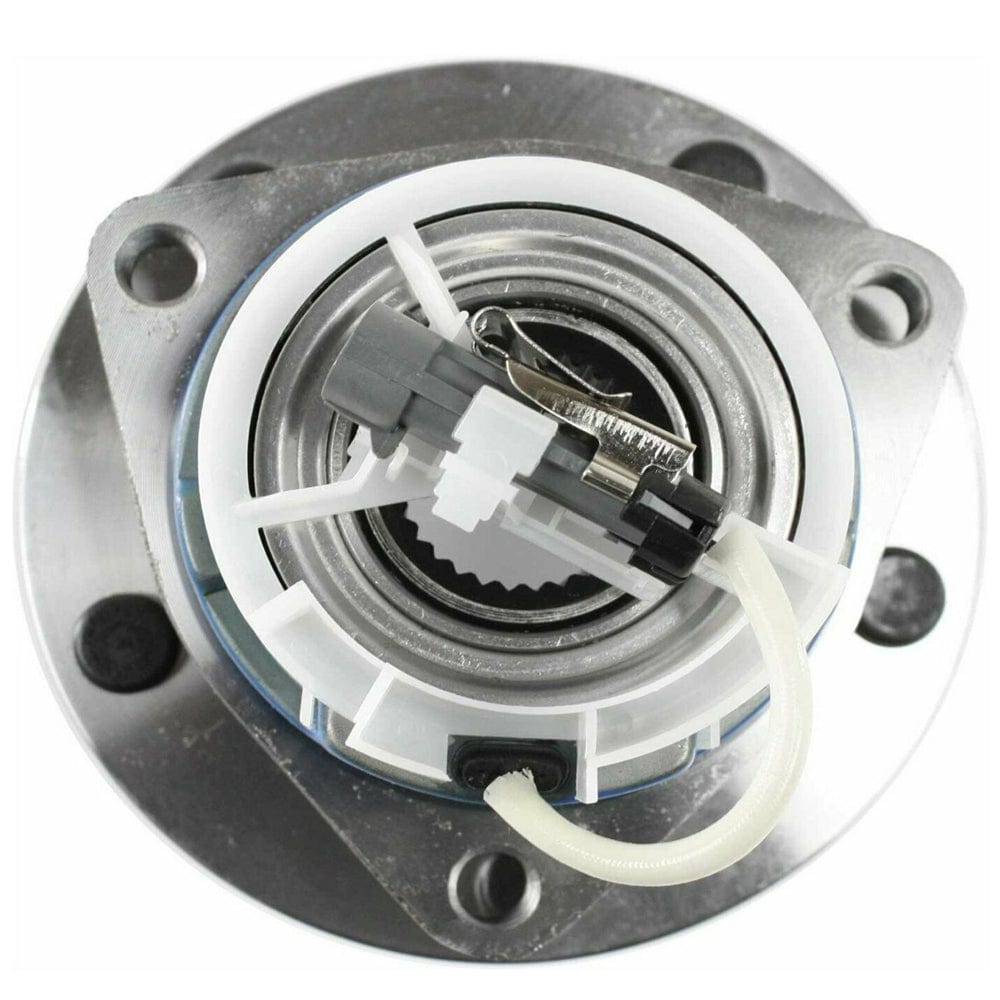

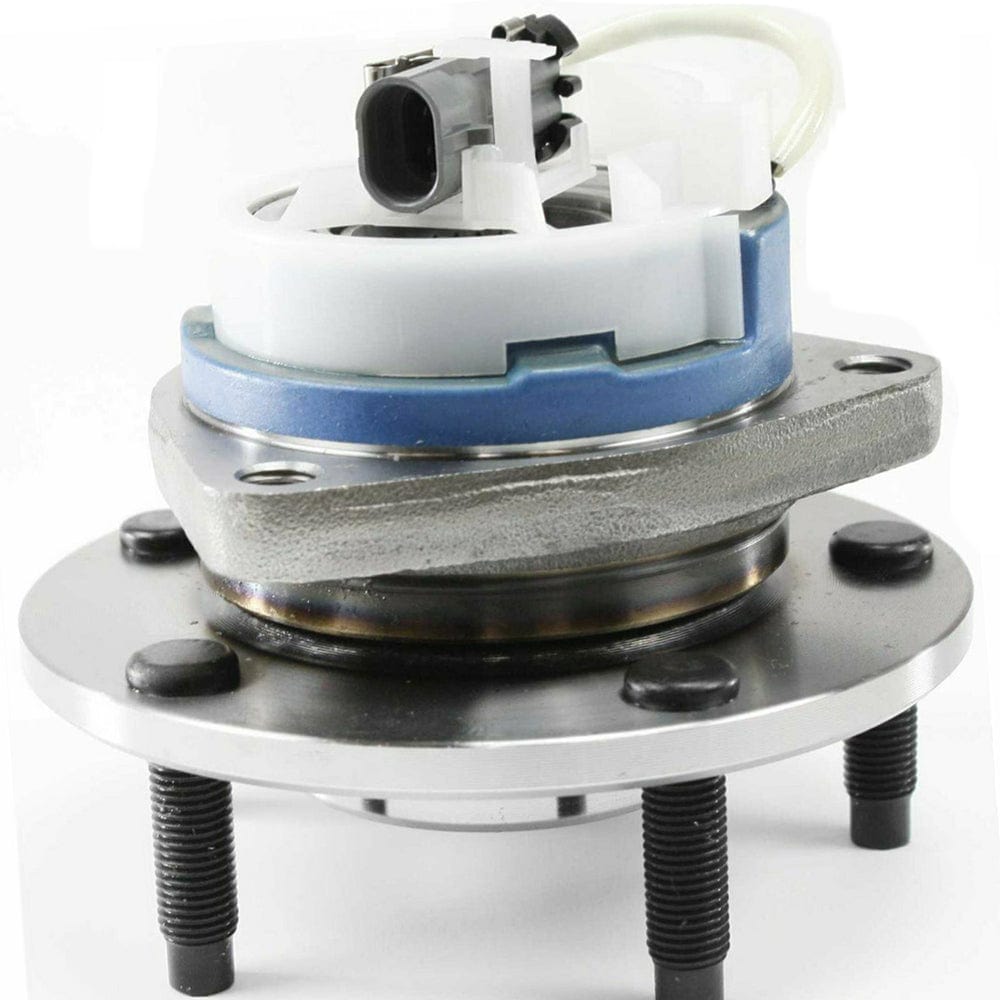

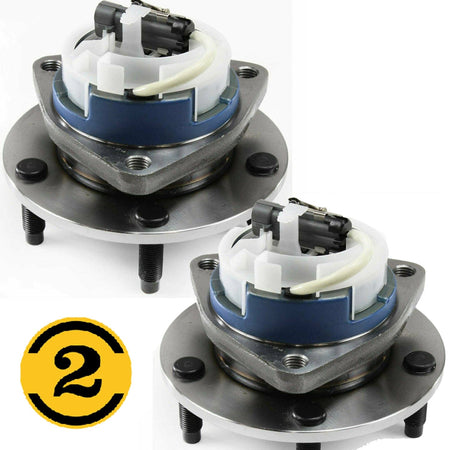

Rear Wheel Bearing Fit 2004-2008 Cadillac XLR, 1997-2008 Chevrolet Corvette Wheel Hub w/ABS, 5 Lugs, 512153 (2 PACK)

Rear Wheel Bearing Fit 2004-2008 Cadillac XLR, 1997-2008 Chevrolet Corvette Wheel Hub w/ABS, 5 Lugs, 512153 (2 PACK)

Fit:
2004 2005 2006 2007 2008 Cadillac XLR (AWD,Rear)
1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 Chevrolet Corvette (AWD,Rear)

Description:

Position:Driver (LH Left )or Passenger(RH Right) Side Rear
ABS Sensor Included: Yes
ABS Connector Shape: Oval
Wiring Harness Included: Yes
Wiring Harness Length (in): 3.1 Inch
Number Of Mounting Bolts To Knuckle: 3
Number Of Lug Bolts Included: 5
Number Of Flange Bolts Included: 0
Driven Or Non-Driven: Driven
Number Of Splines: 30
ABS Ring Type: Sensor
Lug Bolt Thread Size: M12-1.50
Total Hub Diameter (in): 5.733 Inch
Total Hub Diameter (mm): 145.618mm
Total Hub Height (in): 4.36 Inch
Total Hub Height (mm): 110.744mm
Flange Diameter (in): 5.733 Inch
Flange Diameter (mm): 145.618mm
Flange Offset (in): 1.652 Inch
Flange Offset (mm): 41.961mm
Hub Pilot Diameter (in): 3.57 Inch
Hub Pilot Diameter (mm): 90.678mm
Flange Shape: Triangle
Flange Bolt Thread Size: M12-1.75
Material: Steel
Bearing Type: Ball
