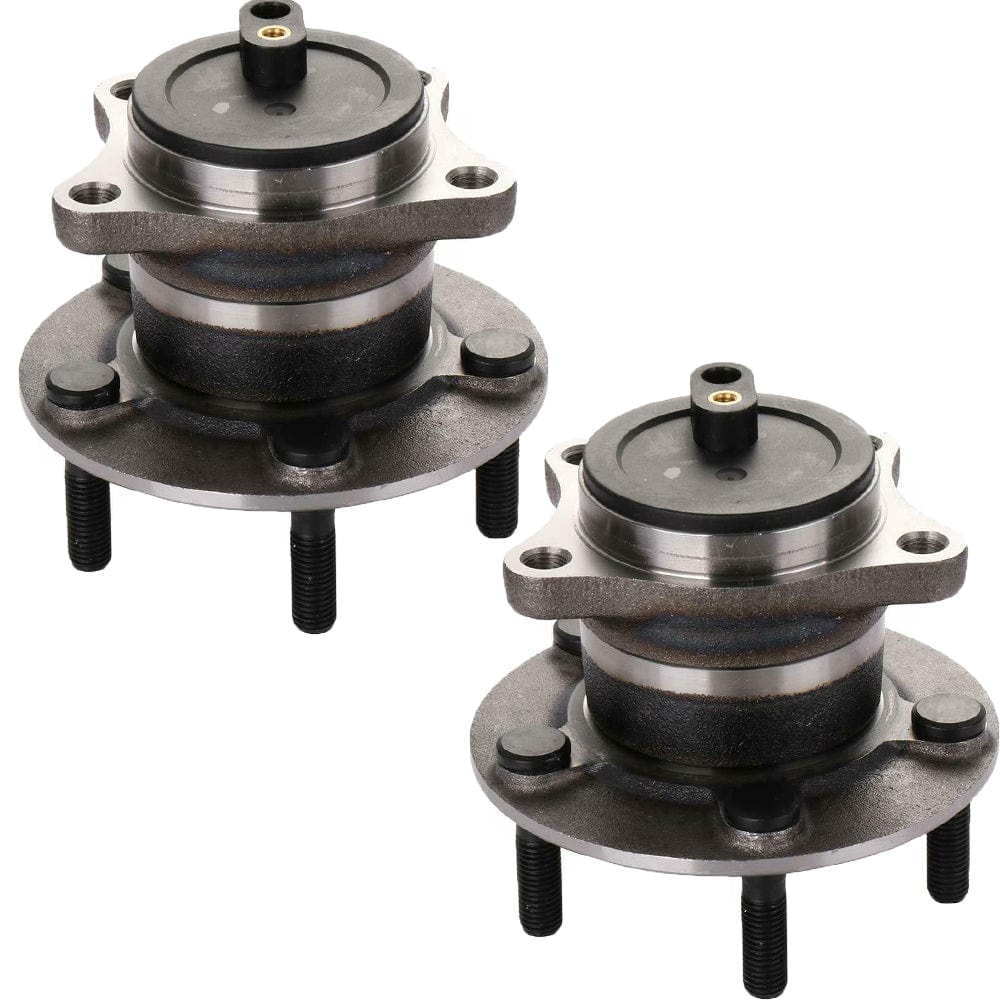

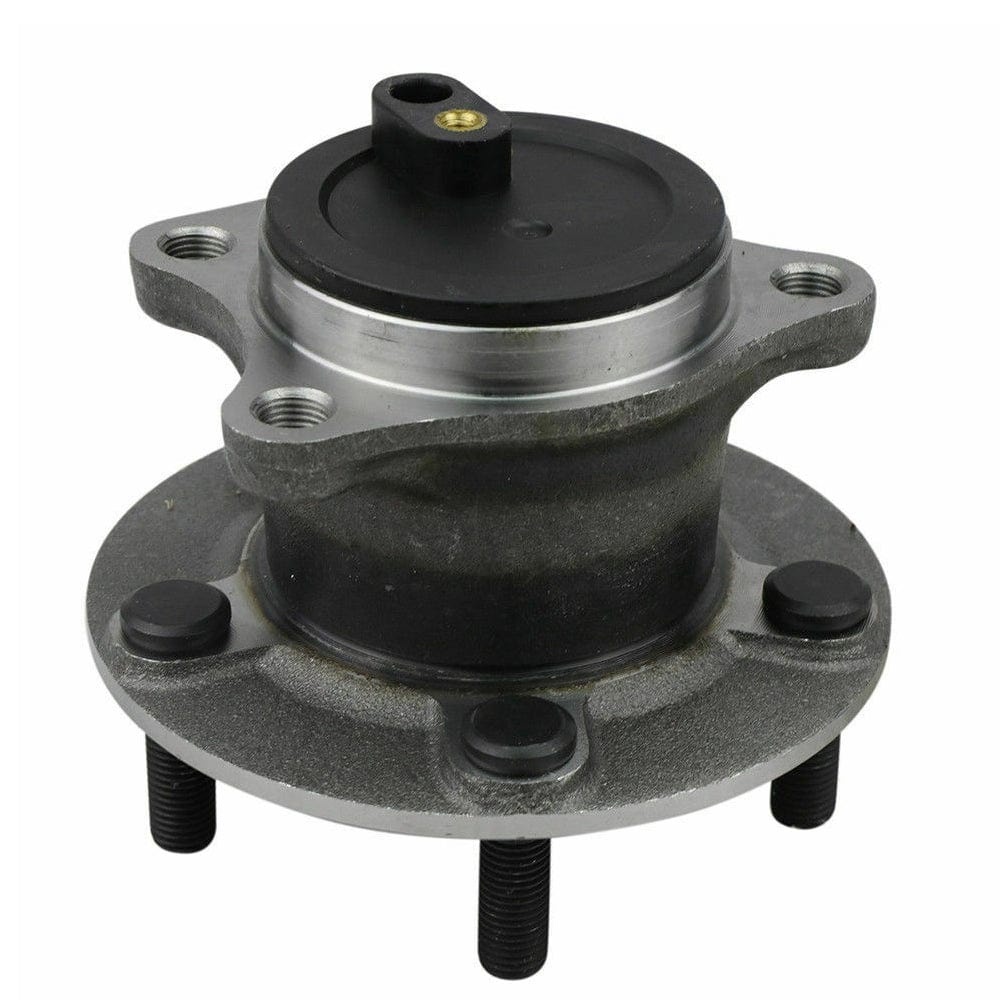

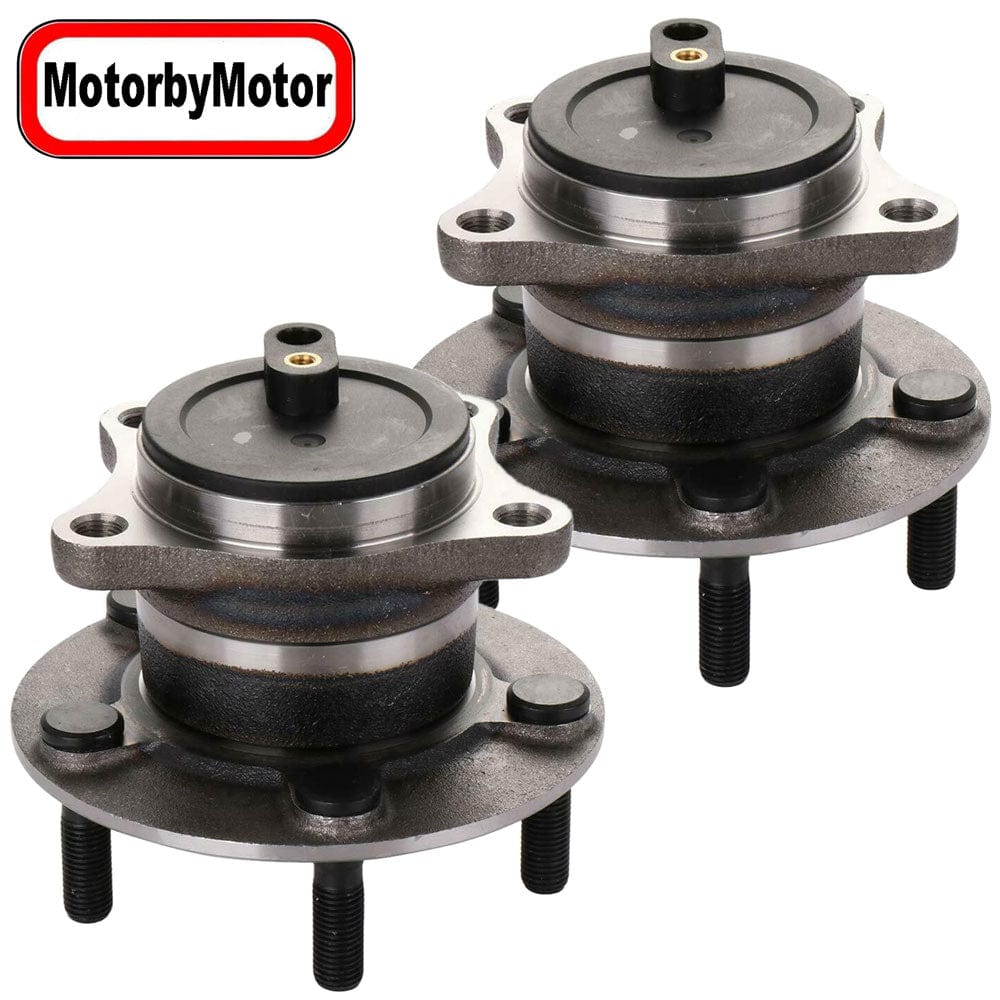

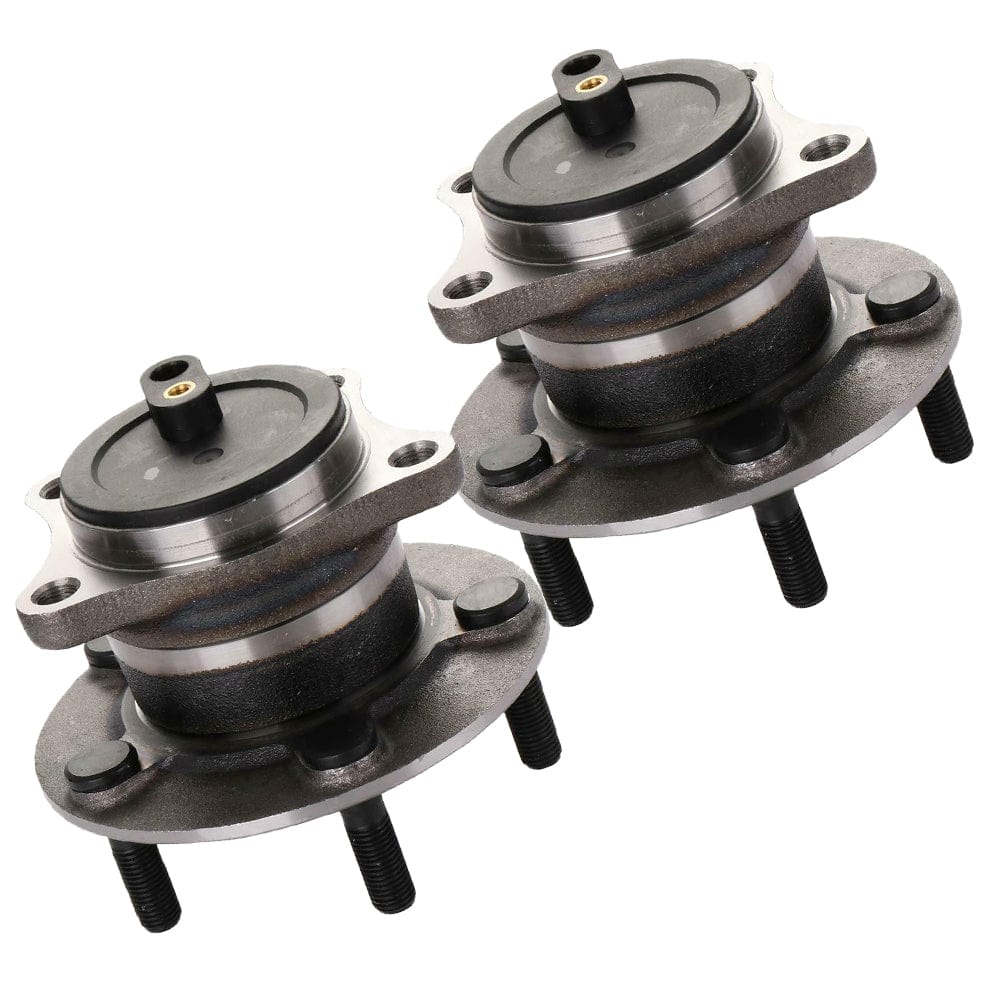

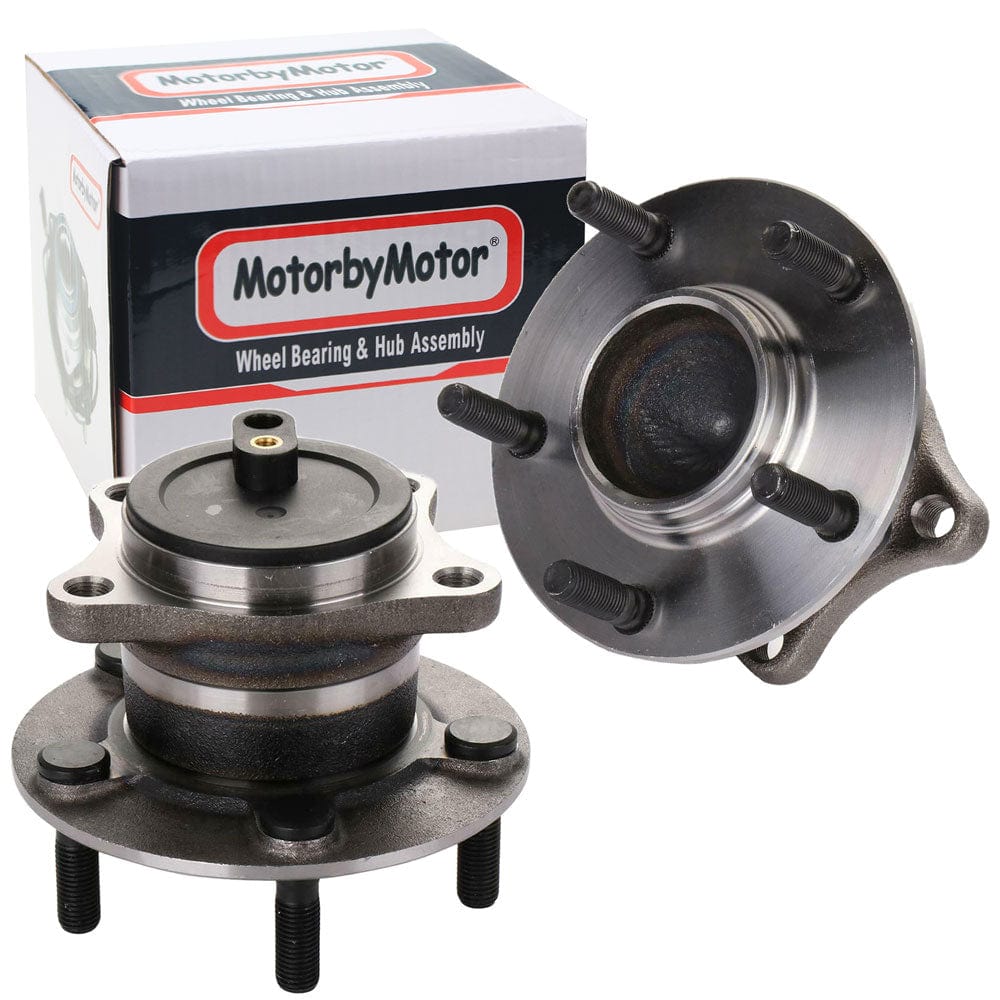

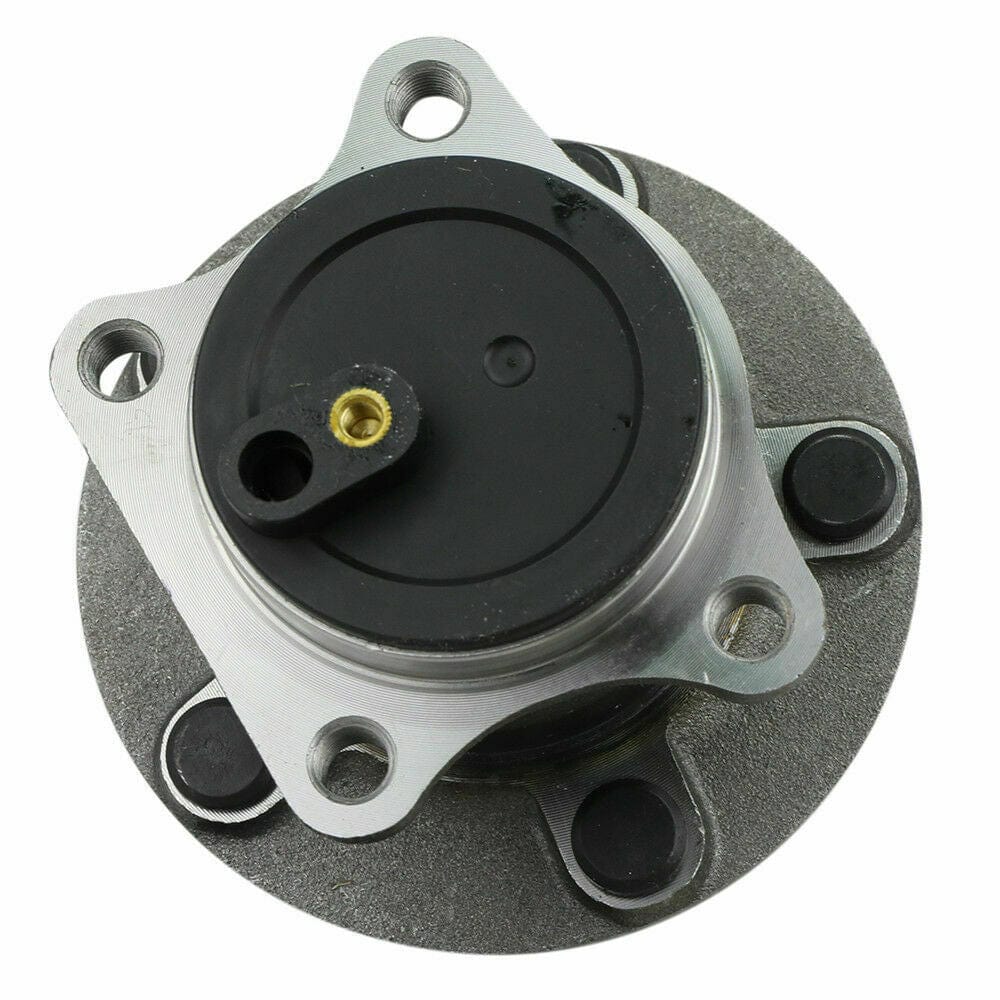

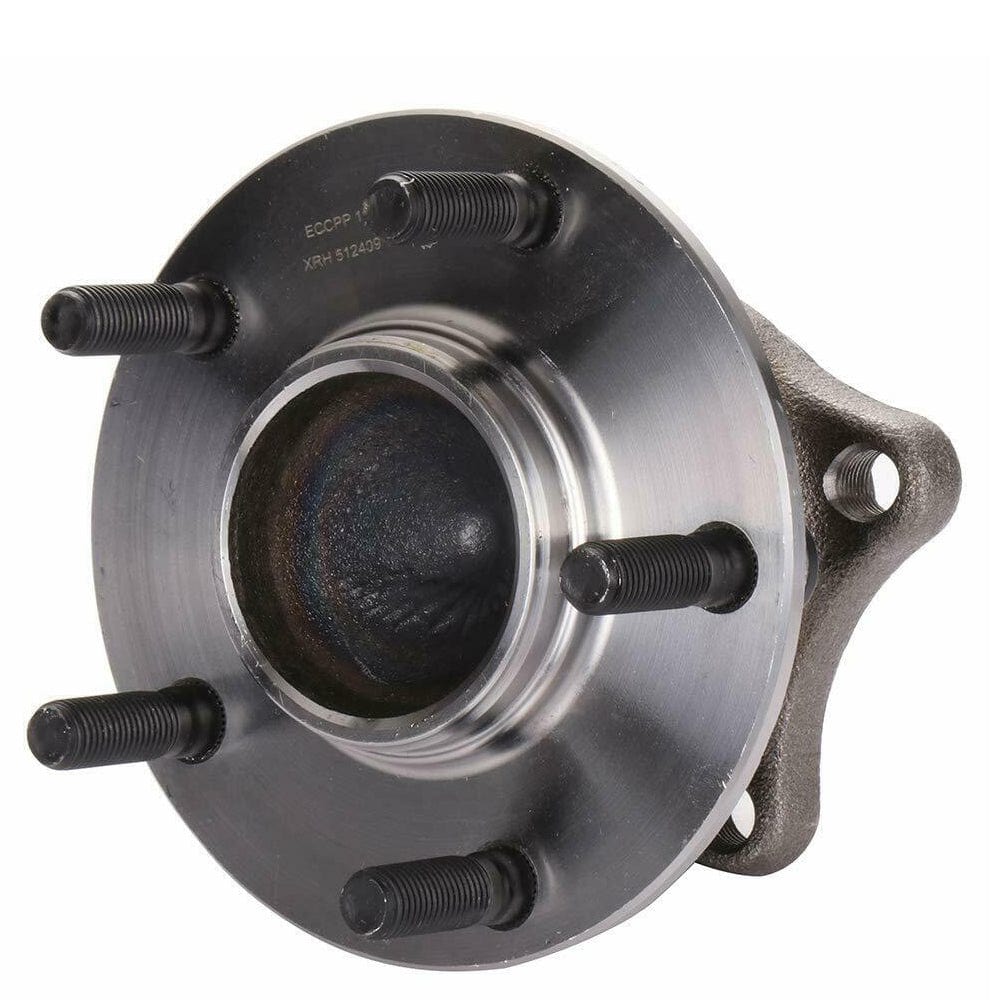

Rear Wheel Bearing Fit 2009-2013 Mazda 6 Wheel Hub with 5 Lugs-w/ABS, 512409 (2 Pack)
2009 2010 2011 2012 2013 Mazda 6
2009 2010 2011 2012 2013 Mazda 6 GS (Can)
2009 2010 2011 2012 2013 Mazda 6 GT (Can)
2009 2010 2011 2012 2013 Mazda 6 i
2009 2010 2011 2012 2013 Mazda 6 s
Position:Driver(LH Left) or Passenger(RH Right) Side REAR
ABS Sensor Included: Yes
ABS Connector Shape: Round
Wiring Harness Included: No
Number Of Mounting Bolts To Knuckle: 4
Number Of Lug Bolts Included: 5
Driven Or Non-Driven: Non-Driven
ABS Ring Type: Sensor
Lug Bolt Thread Size: M12-1.50
Total Hub Diameter (in): 5.50 Inch
Total Hub Diameter (mm): 39.7mm
Total Hub Height (in): 4.801 Inch
Total Hub Height (mm): 121.945mm
Flange Diameter (in): 5.5 Inch
Flange Diameter (mm): 139.7mm
Flange Offset (in): 2.48 Inch
Flange Offset (mm): 62.992mm
Hub Pilot Diameter (in): 3.071 Inch
Hub Pilot Diameter (mm): 78.003mm
Flange Shape: Trapezoid
Flange Bolt Thread Size: M12-1.25
Terminal Gender: Female
Number Of Terminals: 1
Bearing Type: Ball
