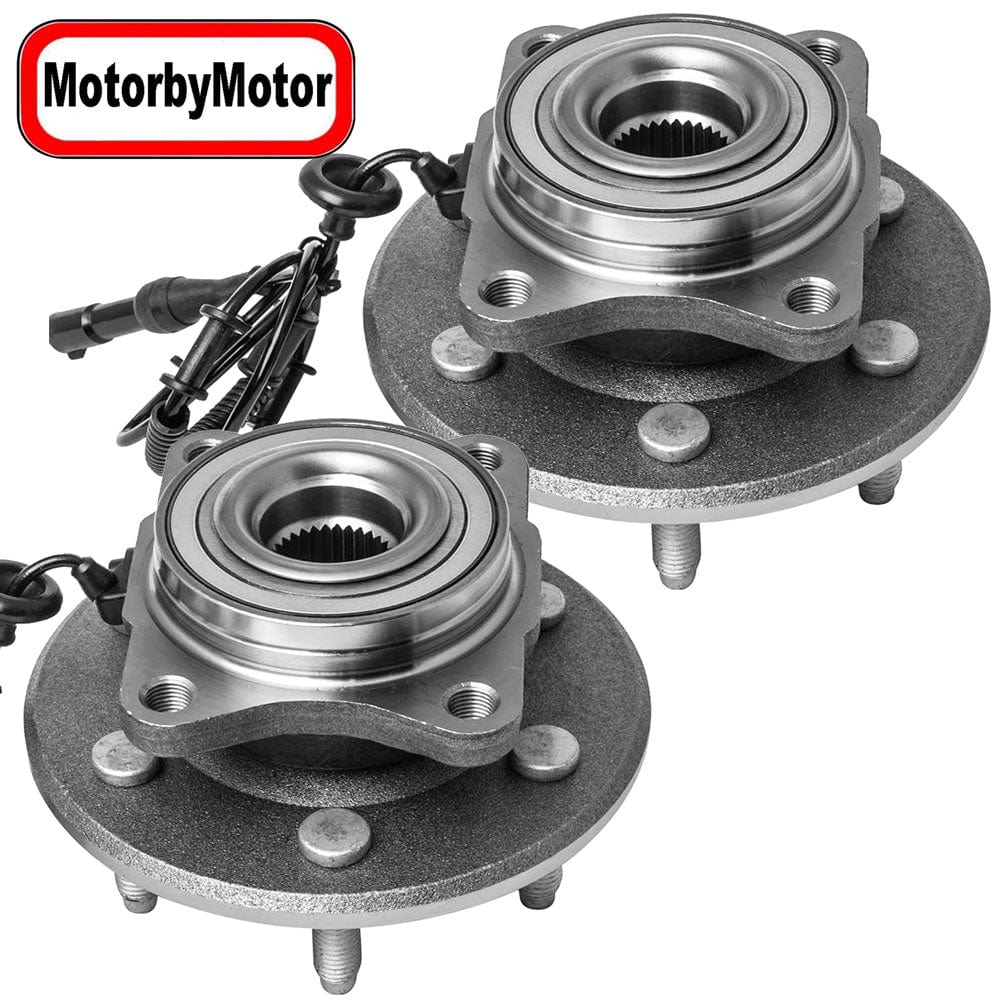

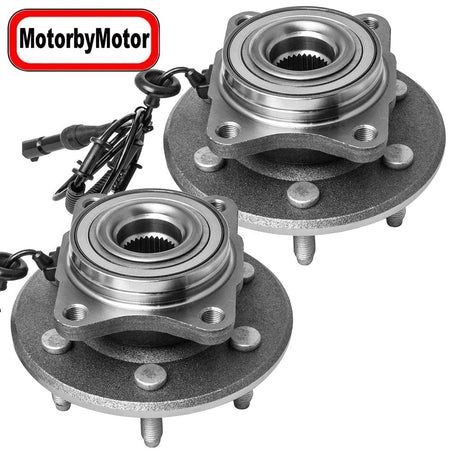

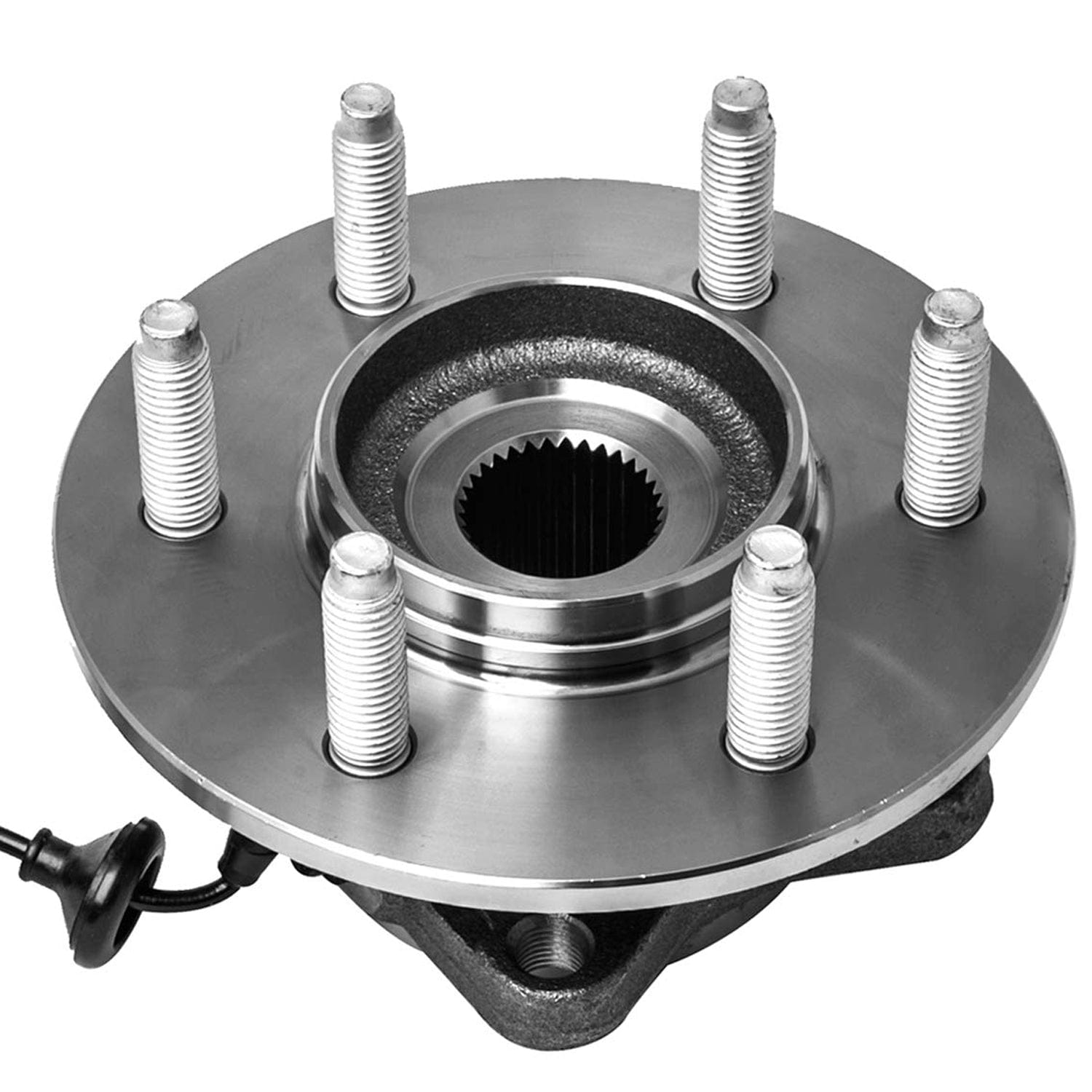

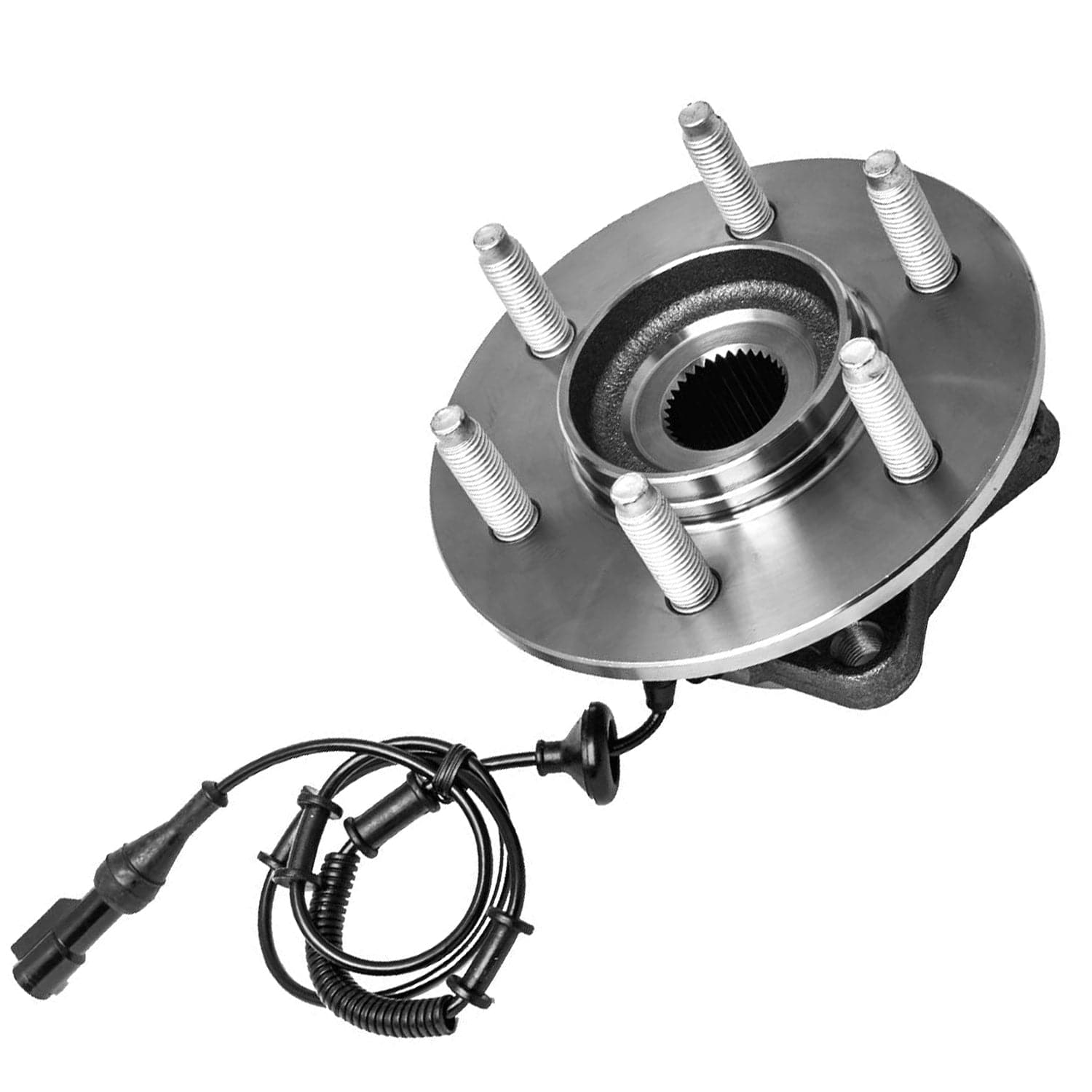

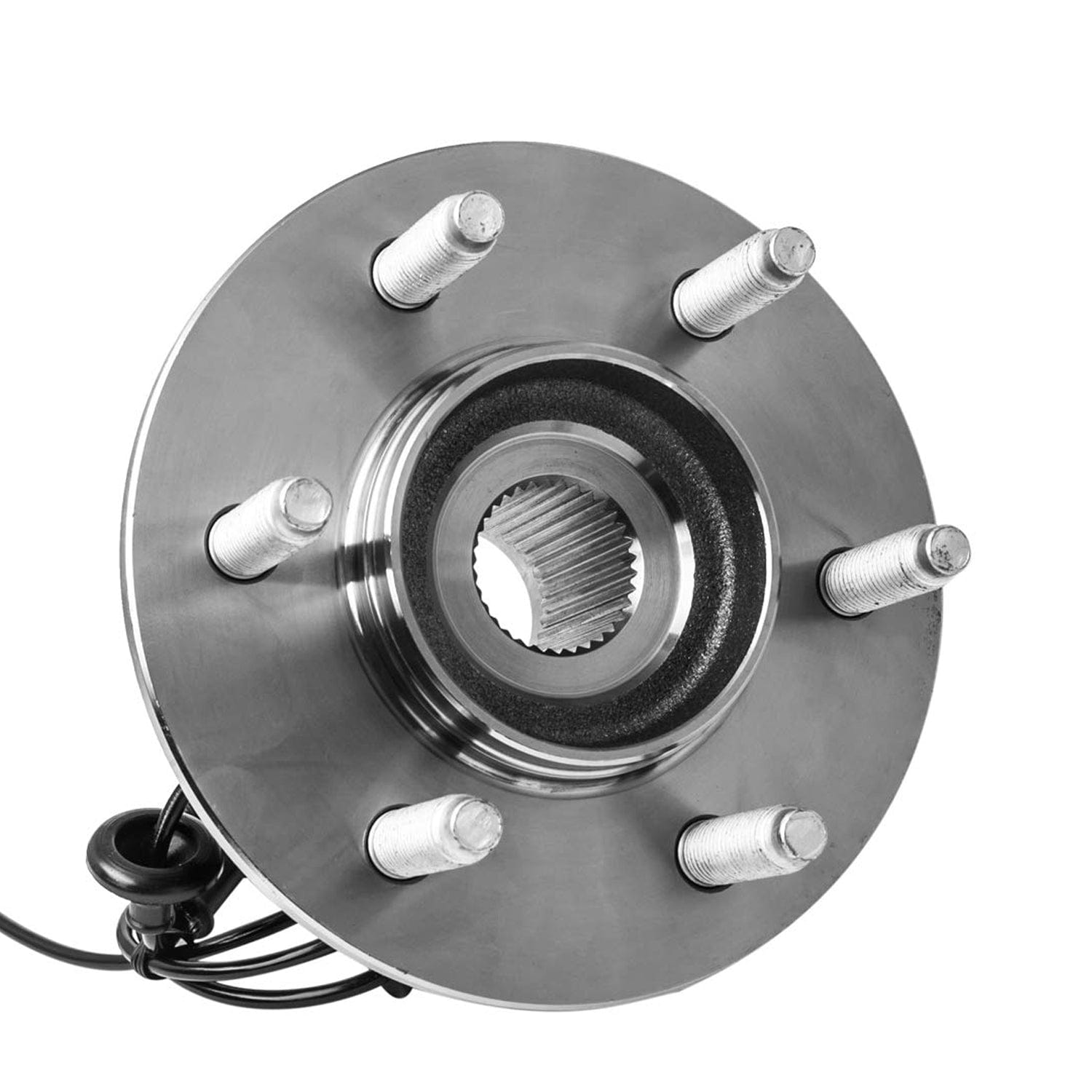

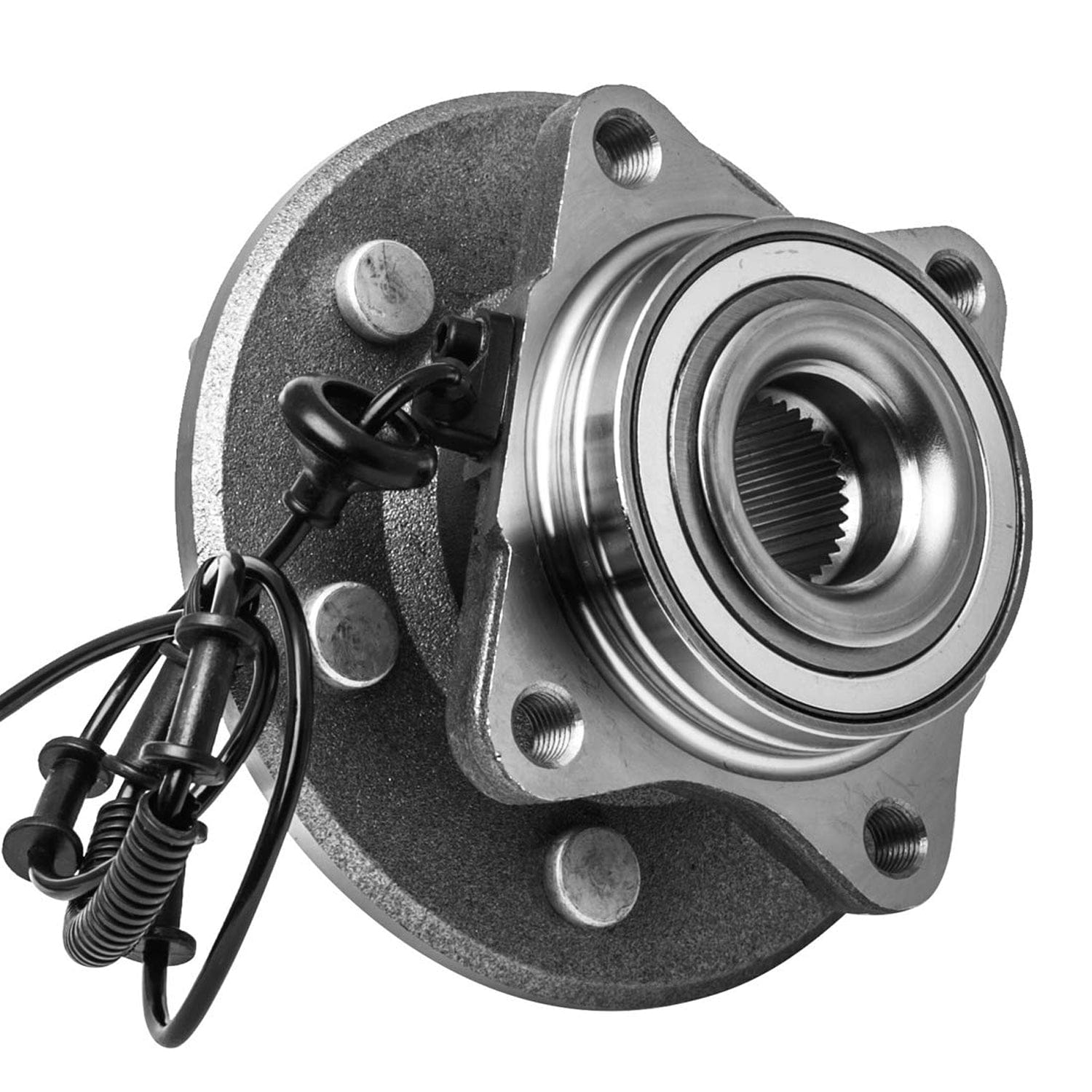

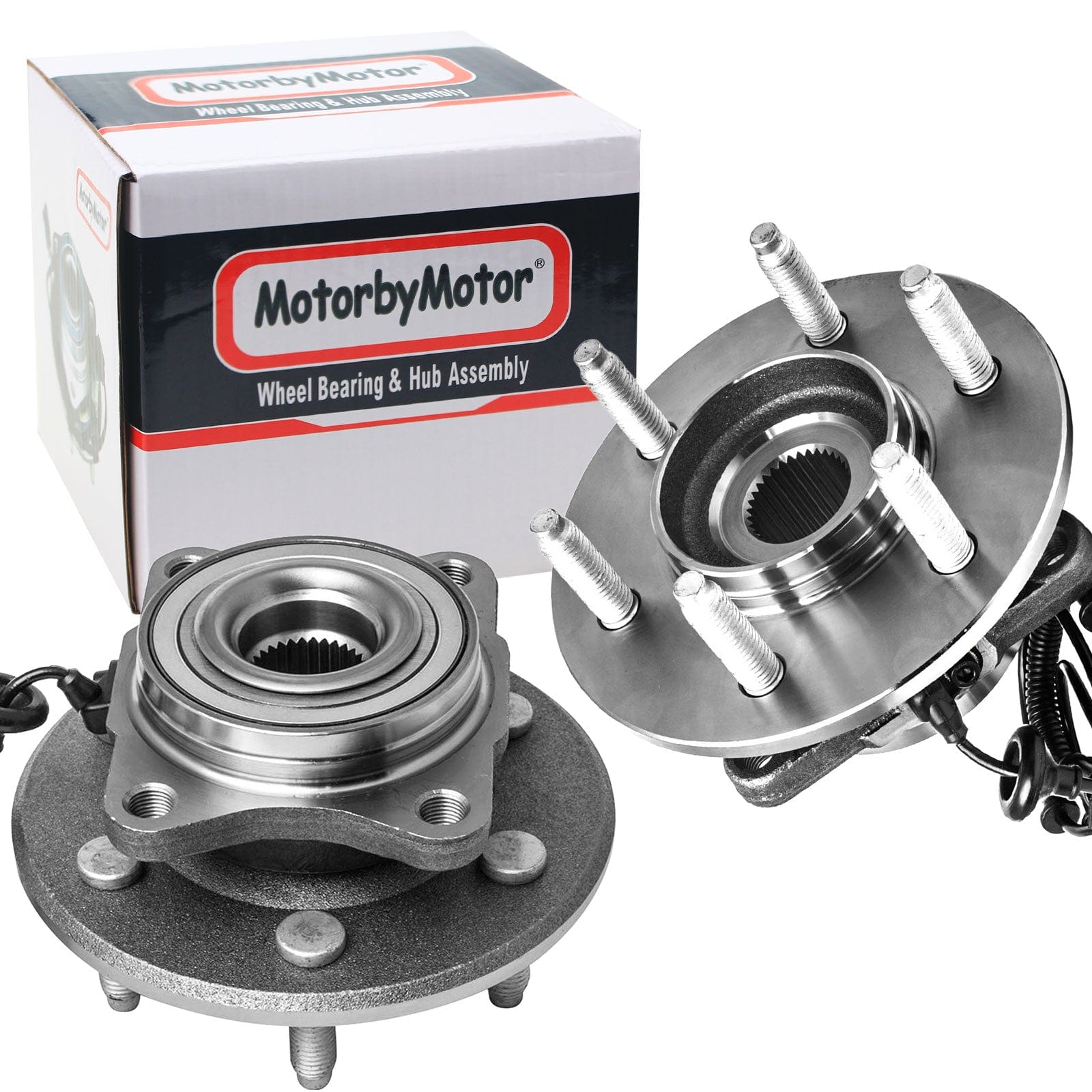

MotorbyMotor 541001 Rear Wheel Bearing and Hub Assembly with 6 Lugs Fits for Ford Expedition Lincoln Navigator Low-Runout OE Directly Replacement Hub Bearing (w/ABS)-2 Pack

Rear Wheel Bearing and Hub Assembly MotorbyMotor-541001 fits these vehicles:

2003 2004 2005 2006 Ford Expedition

2003 2004 2005 2006 Lincoln Navigator

Replaces dealer part numbers:
541001, BR930635, SP550203, WB41001, 5L1Z1104AA, 6L141A049AA, 6L142B664AA, 6L1Z1104AA, 6L1Z1109AA, 6L1Z1109AAFC, 6L1Z1A049AA.

Description:
Position:Driver(LH Left) or Passenger(RH Right) Side Rear
ABS Sensor Included: Yes
ABS Connector Shape: Round
Wiring Harness Included: Yes
Wiring Harness Length (in): 34.06 Inch
Number Of Mounting Bolts To Knuckle: 4
Number Of Lug Bolts Included: 6
Number Of Flange Bolts Included: 0
Driven Or Non-Driven: Driven
Number Of Splines: 33
ABS Ring Type: Sensor
Number Of ABS Sensor Ring Teeth: 54
Total Hub Diameter (in): 7.20 Inch
Hub Centerbore Diameter (in): 5.31 Inch
Total Hub Height (in): 4.98 Inch
Flange Diameter (in): 3.54 Inch
Flange Offset (in): 2.19 Inch
Flange Shape: Round
Flange Bolt Size (in): 1.85 Inch
Flange Bolt Thread Size: M14-2.0
Material: Steel
Bearing Type: Tapered
Hub Pilot Diameter (in): 3.91 Inch
