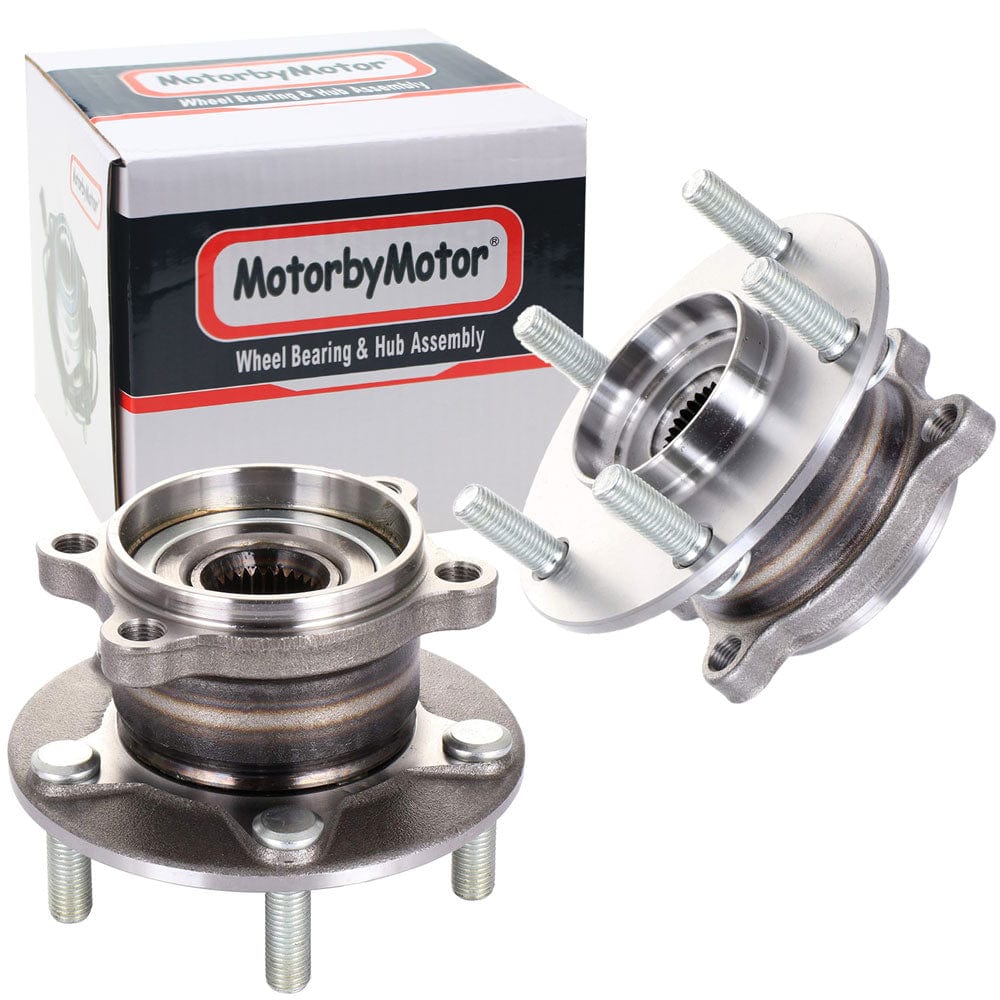

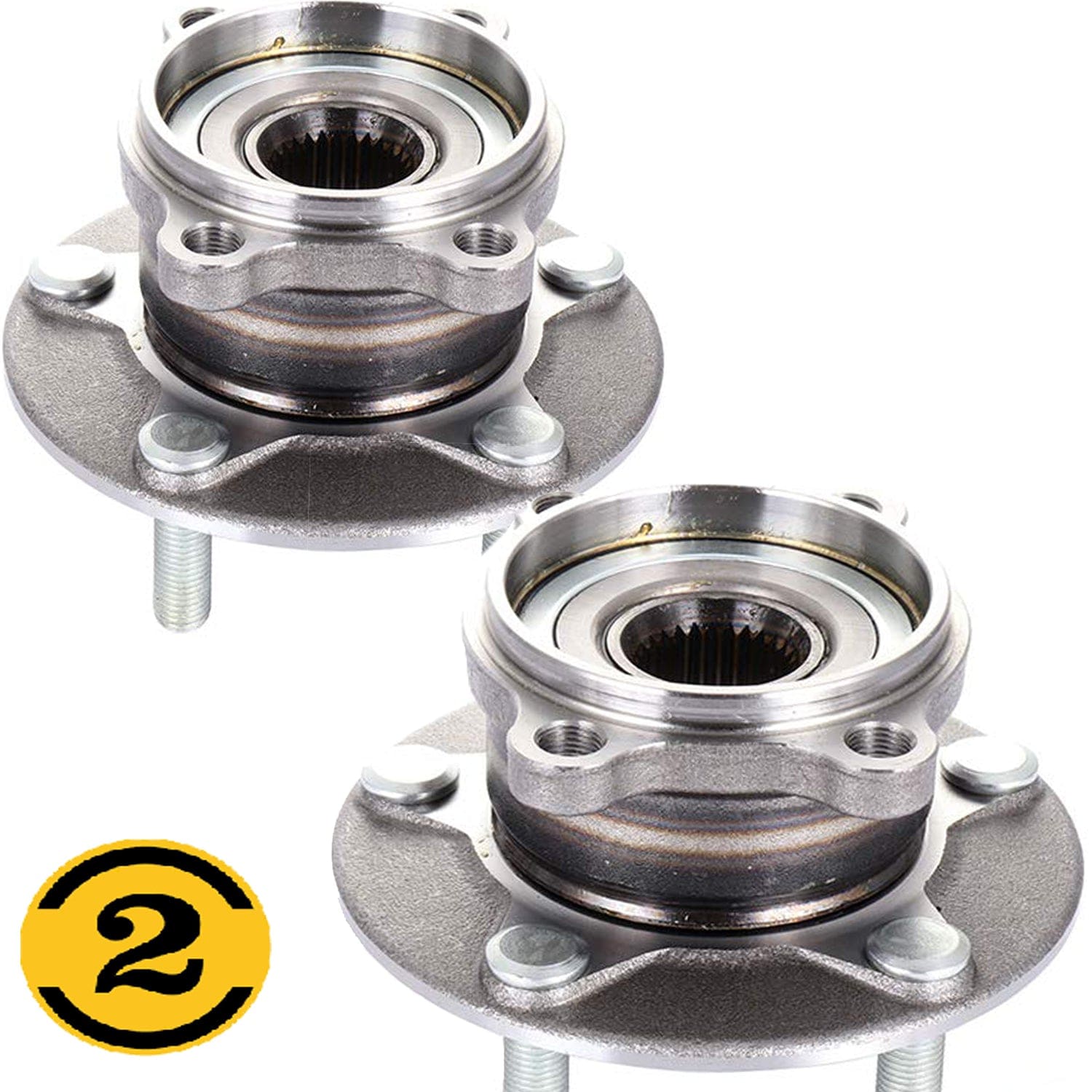

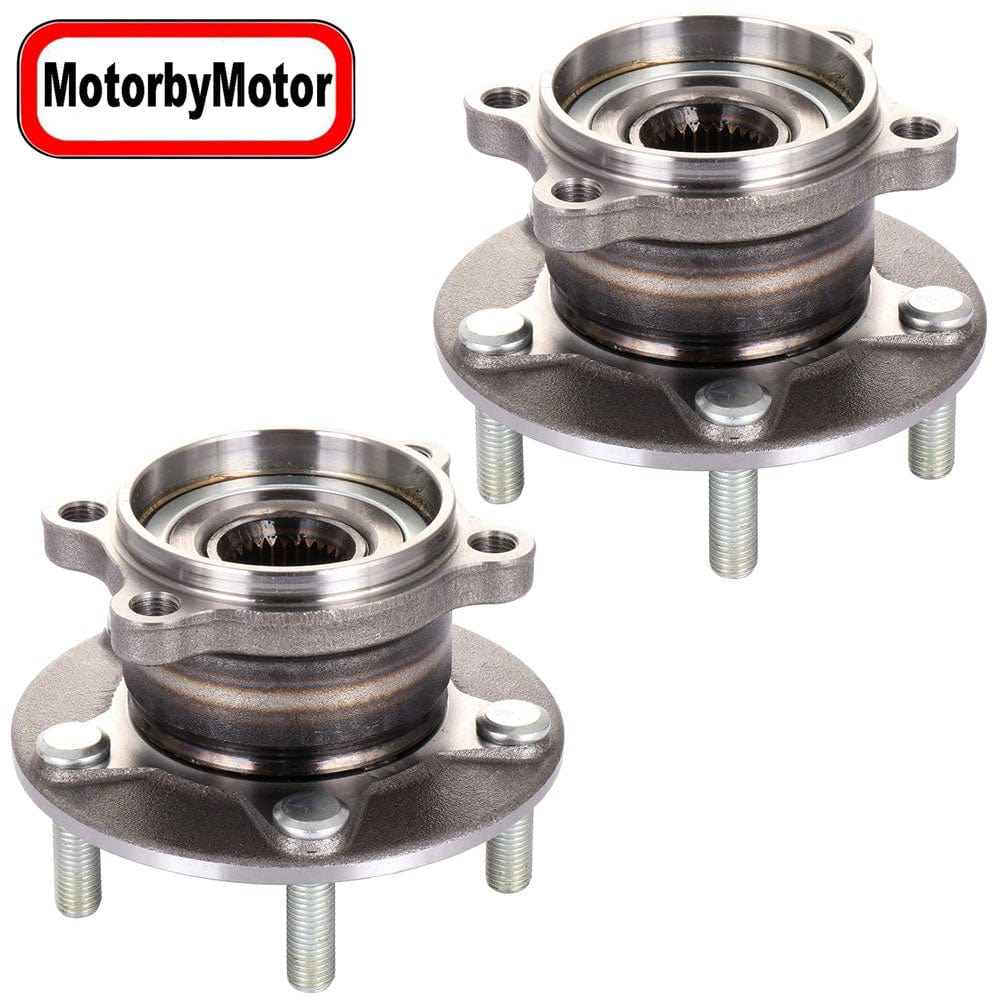

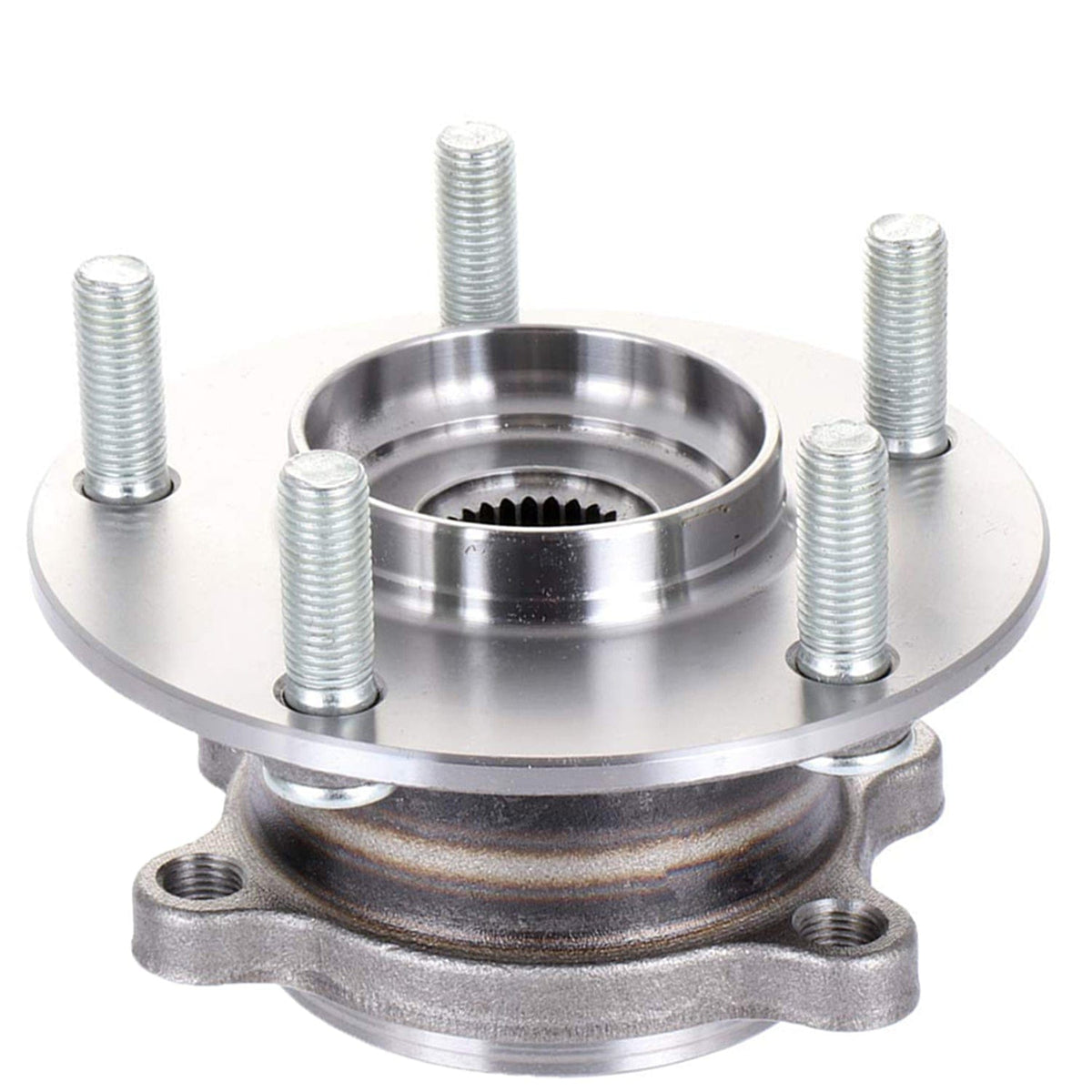

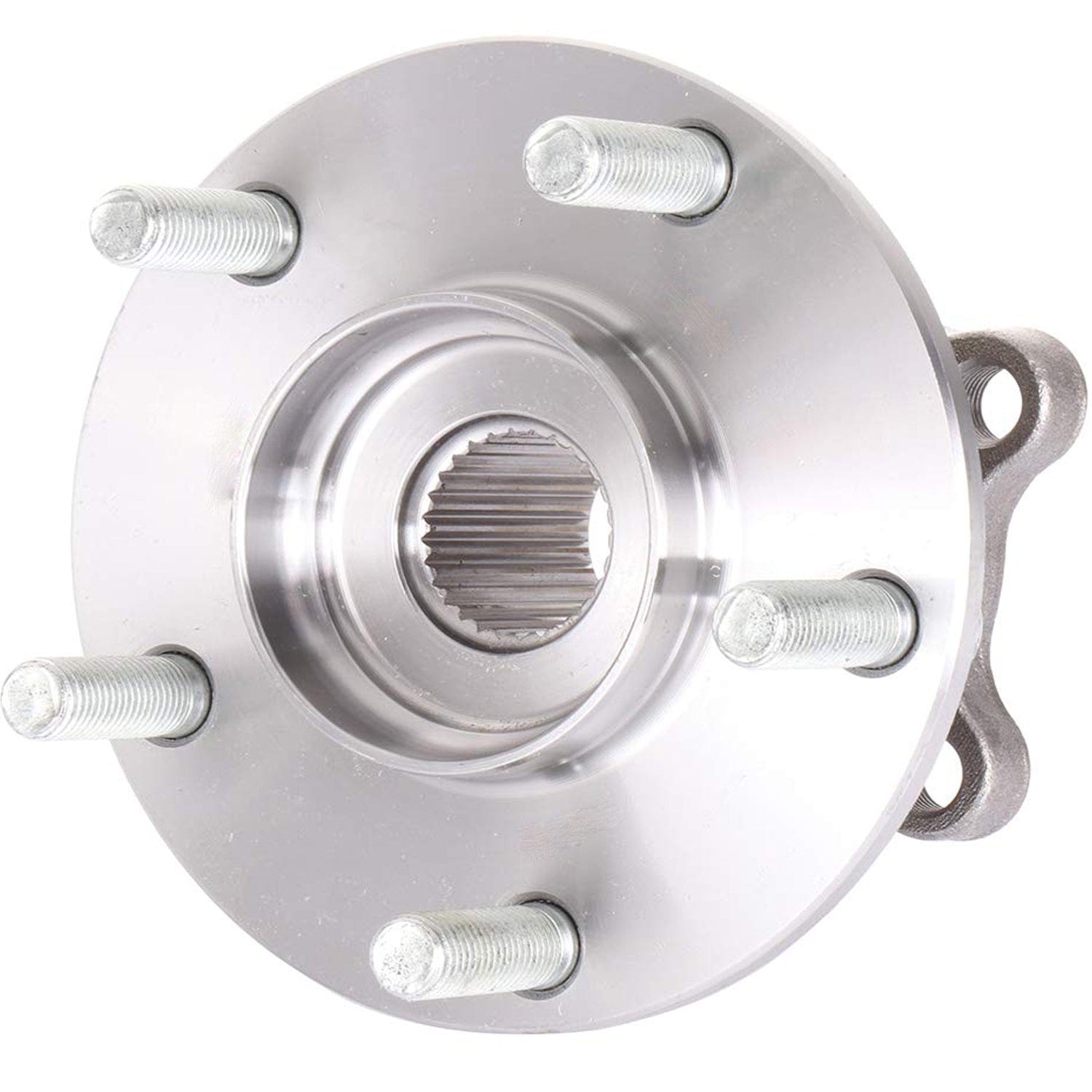

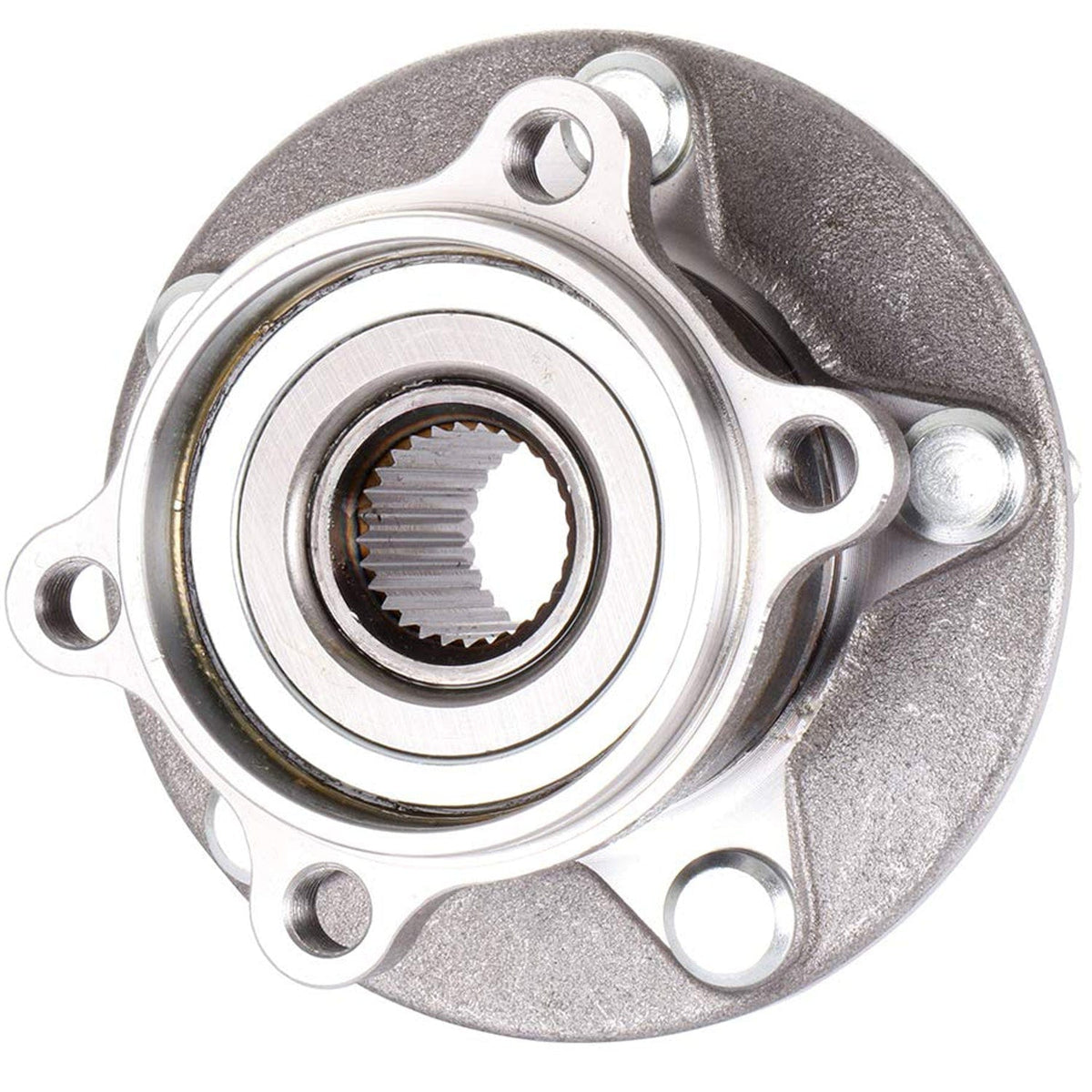

Rear Wheel Bearing Fit 2013-2017 Mazda CX-5 Wheel Hub w/ABS, 512551 (2 Pack)

Rear Wheel Bearing Fit 2013-2017 Mazda CX-5 Wheel Hub w/ABS, 512551 (2 Pack)

Fit:
2013 2014 2015 2016 2017 Mazda CX-5.

Description:

Position:Driver(LH Left) Or Passenger(RH Right) Side Rear
ABS Sensor Included: No
Wiring Harness Included: No
Number Of Mounting Bolts To Knuckle: 4
Number Of Lug Bolts Included: 5
Number Of Flange Bolts Included: 0
Driven Or Non-Driven: Driven
Number Of Splines: 28
Total Hub Diameter (in): 5.46 Inch
Total Hub Diameter (mm): 138.7mm
Hub Centerbore Diameter (in): 4.5 Inch
Hub Centerbore Diameter (mm): 114.3mm
Total Hub Height (in): 3.87 Inch
Total Hub Height (mm): 98.3mm
Flange Diameter (in): 2.68 Inch
Flange Diameter (mm): 68mm
Flange Offset (in): 2.24 Inch
Flange Offset (mm): 57mm
Flange Shape: Round
Flange Bolt Size (in): 1.31 Inch
Flange Bolt Size (mm): 33.3mm
Flange Bolt Thread Size: M12-1.50
Material: Steel
Bearing Type: Ball
Hub Pilot Diameter (in): 3.26 Inch
Hub Pilot Diameter (mm): 82.9mm
