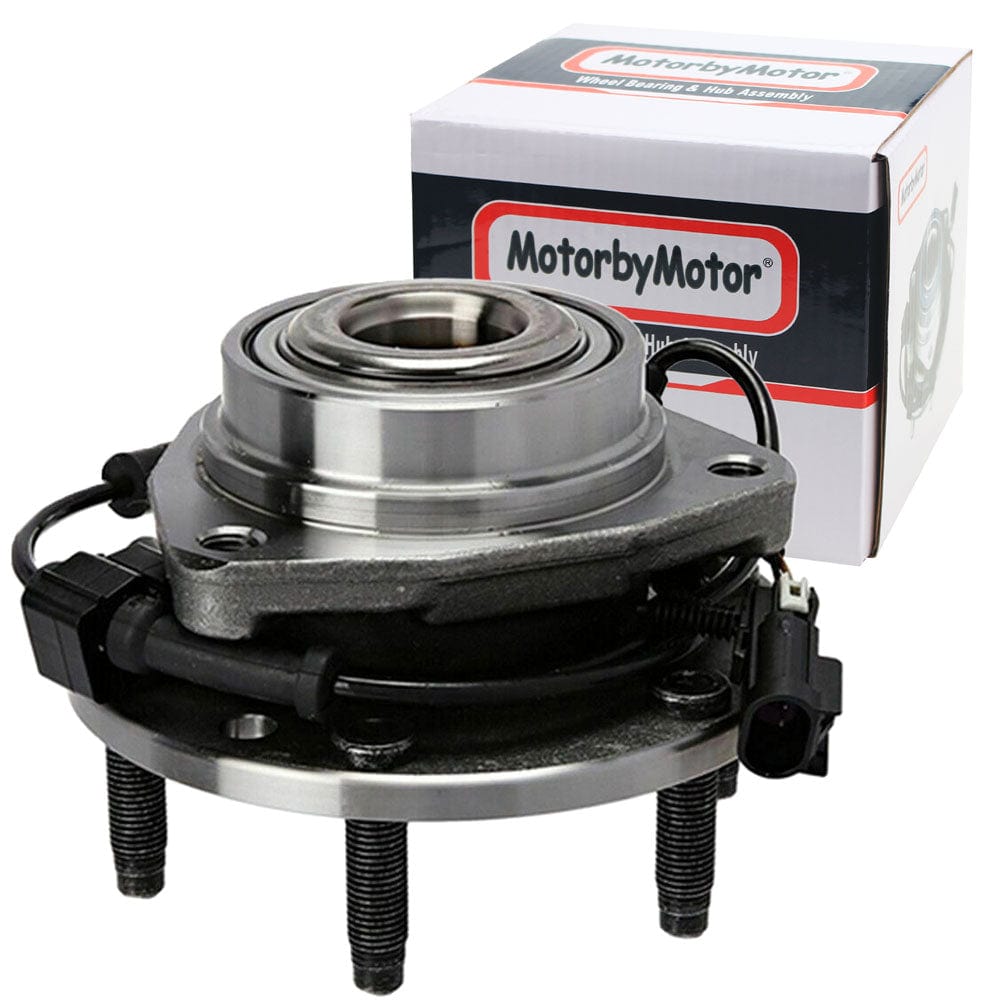

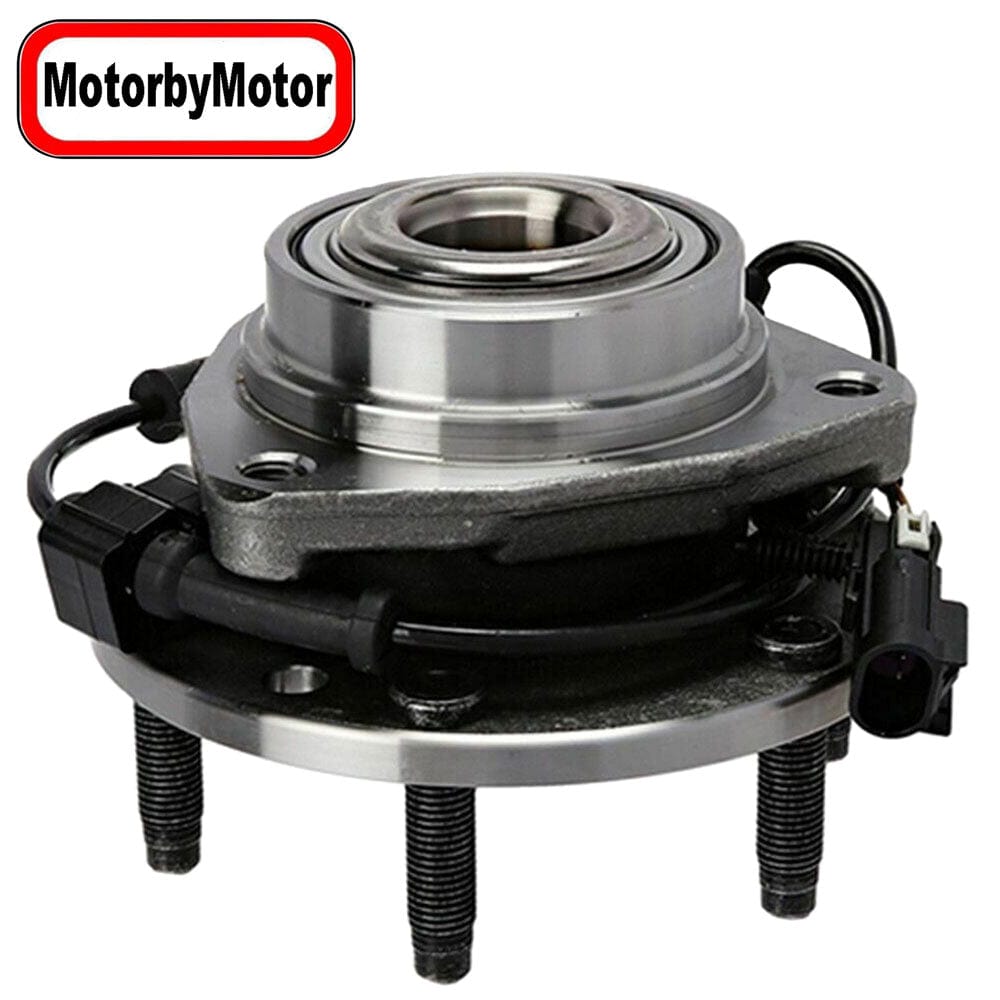

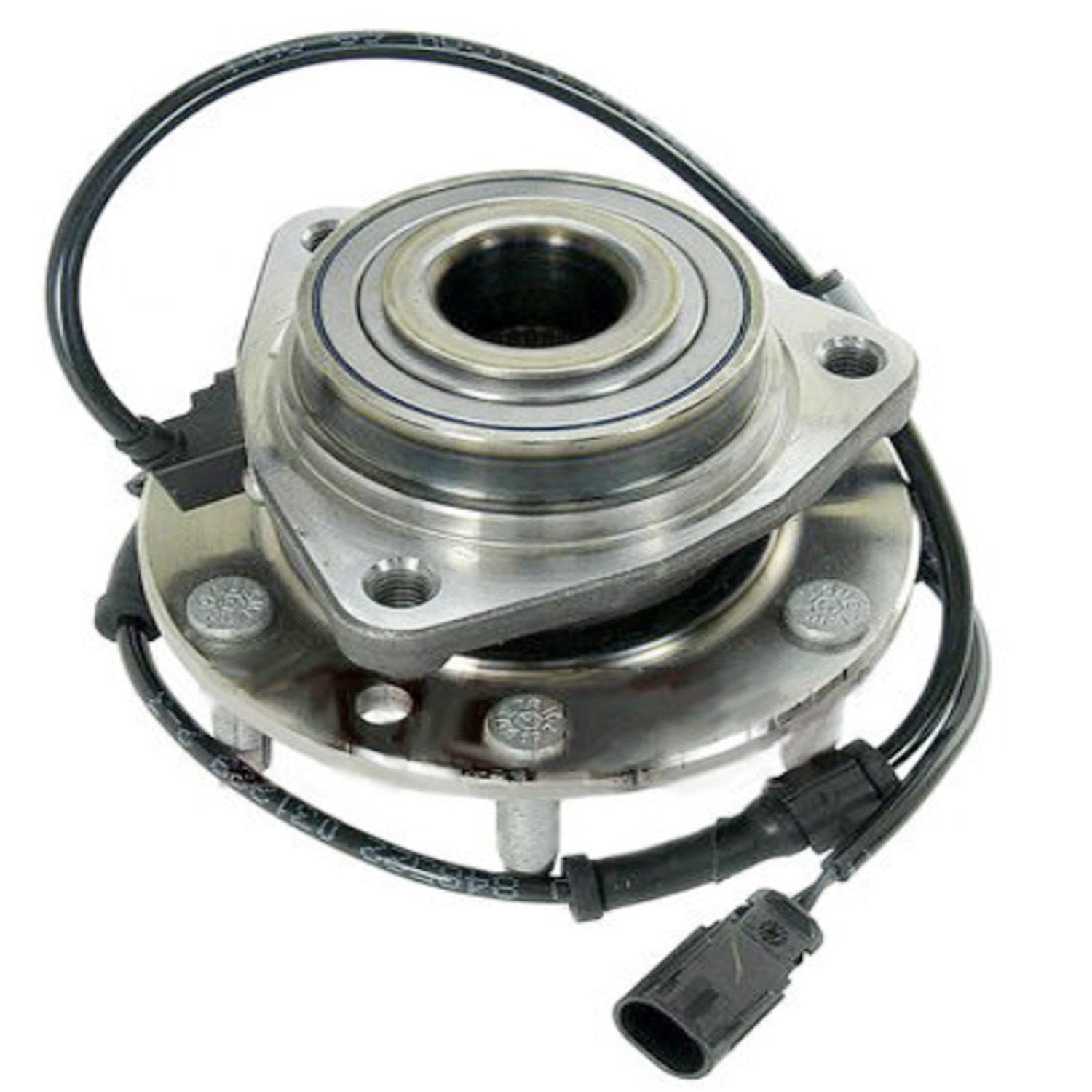

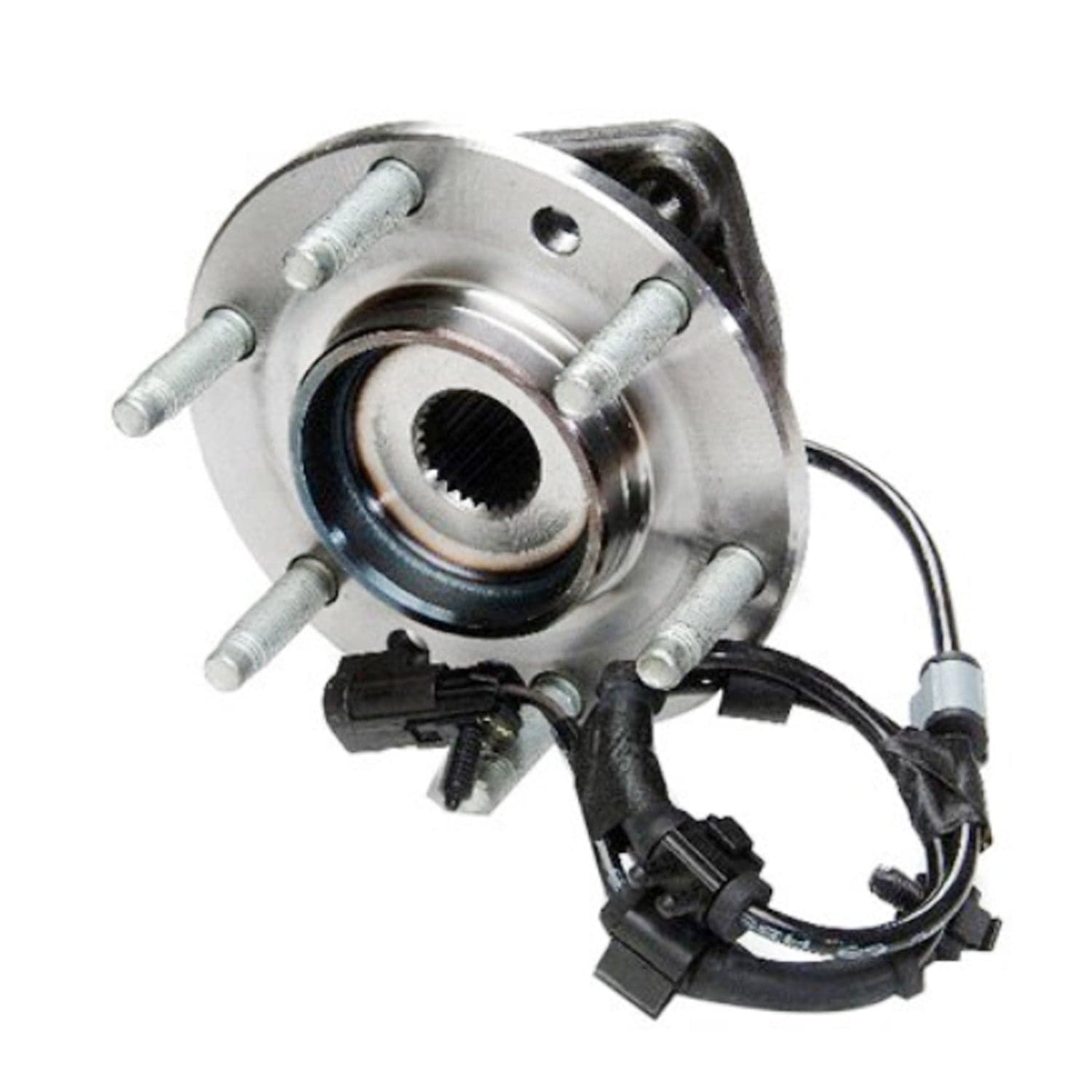

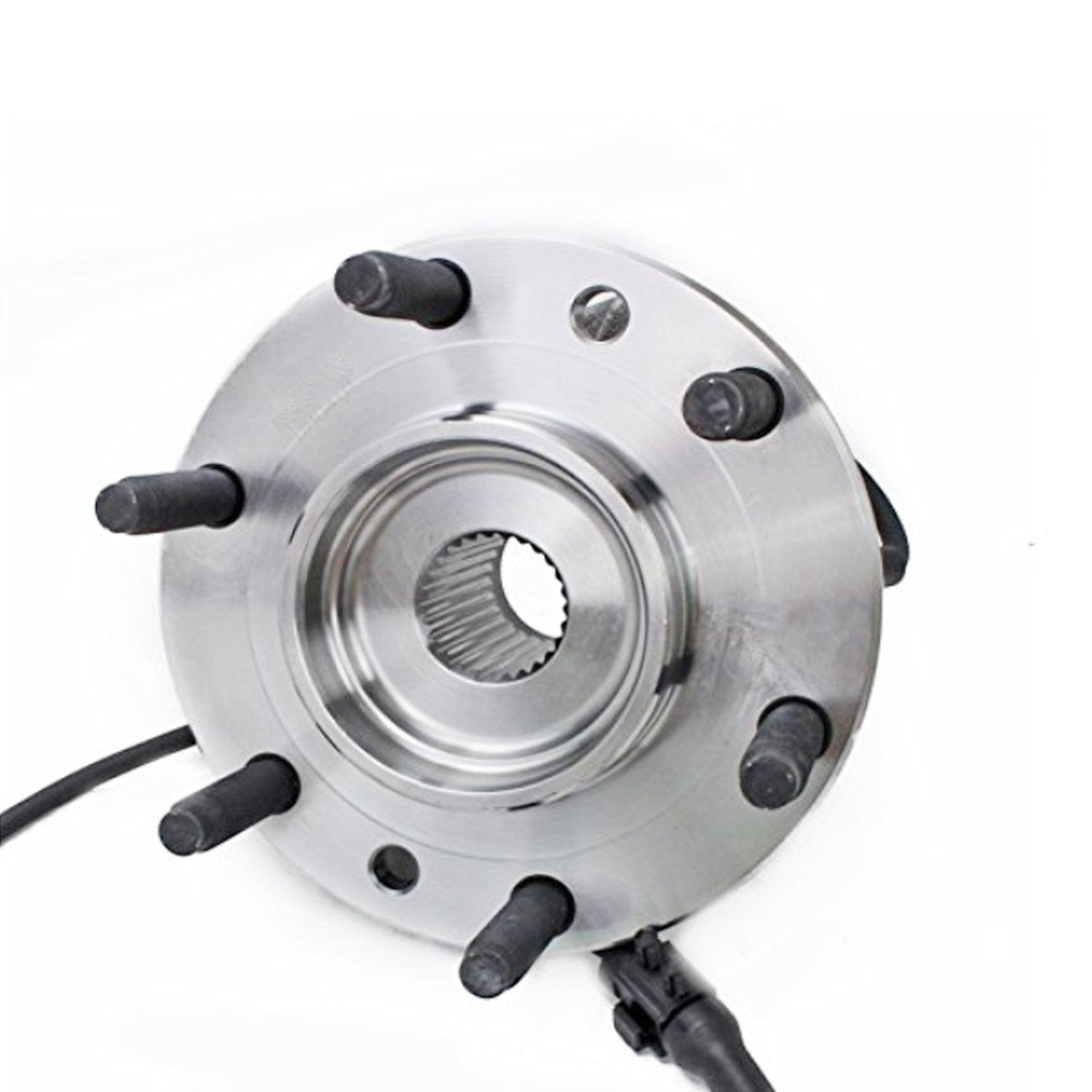

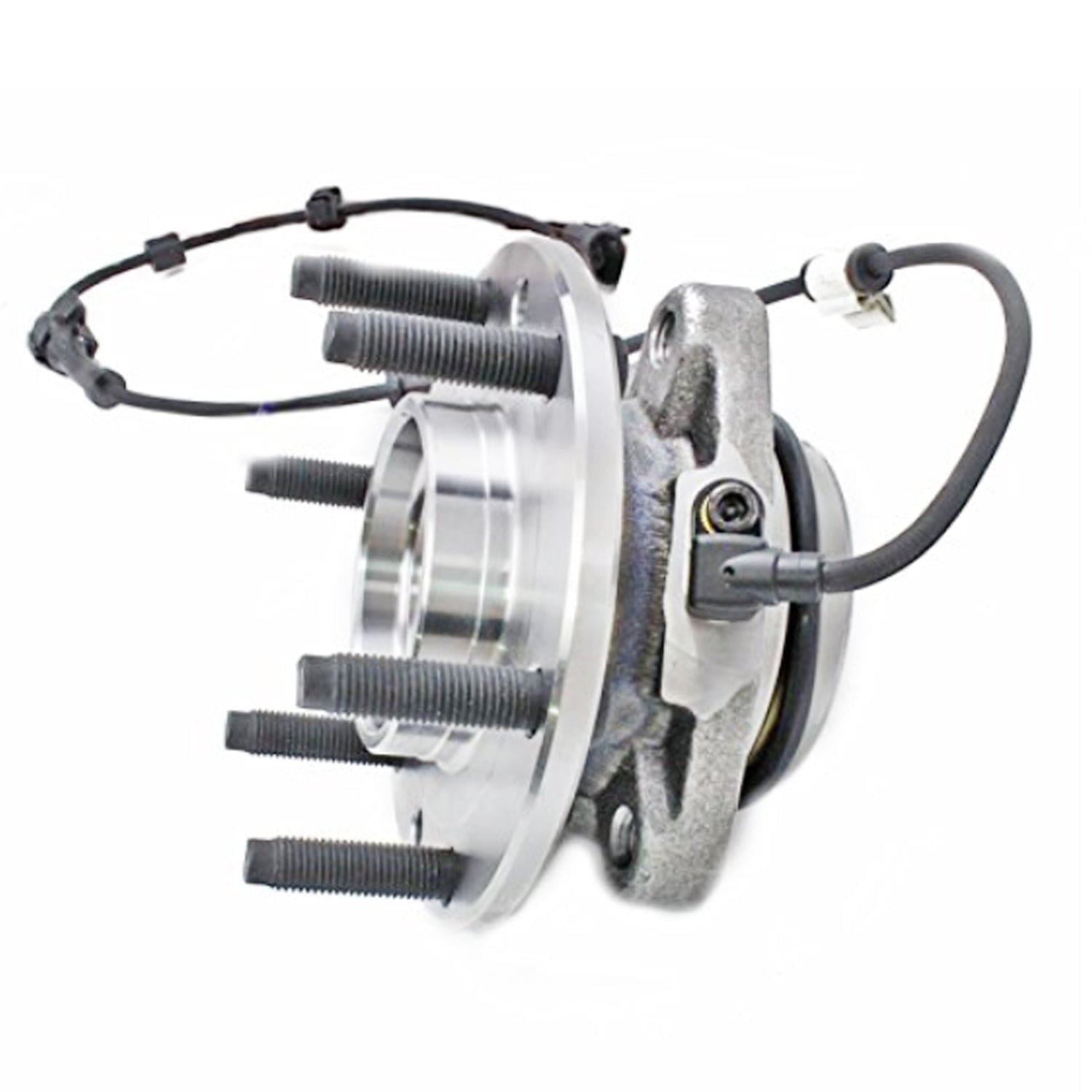

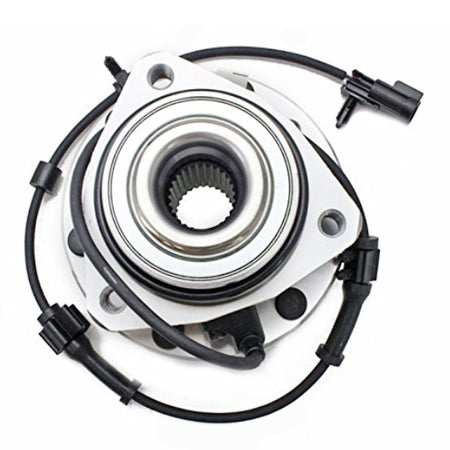

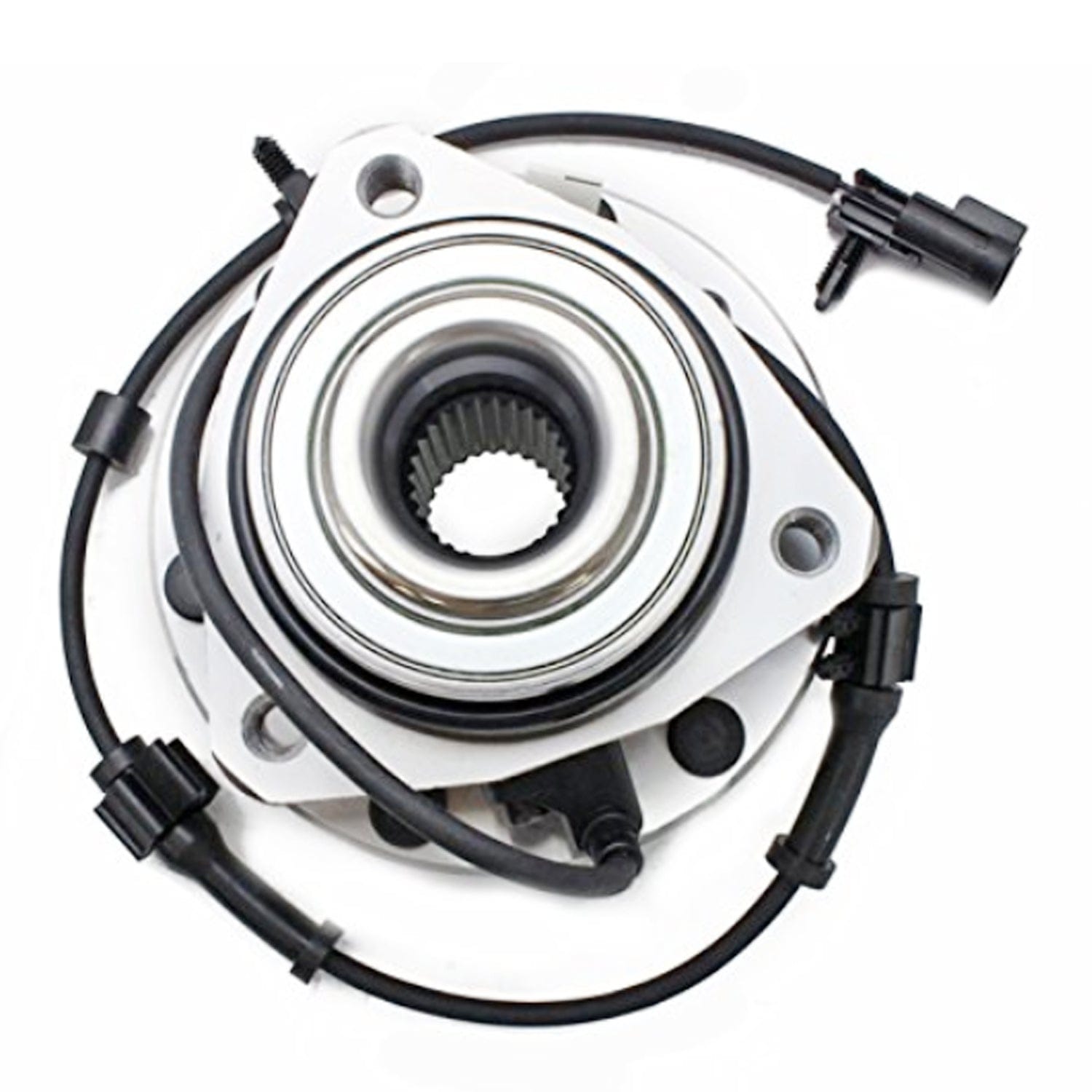

Saab 9-7X Wheel Bearing Hub Assembly 2005 -2009 Front 513188
MotorbyMotor Front Wheel Hub Assembly Fit Chevy, GMC Envoy, Isuzu Ascender, Buick Rainier, SAAB 9-7X, Oldsmobile Bravada Wheel Hub w/ABS, 6 Lugs-513188
Fit:
2004-2007 Buick Rainier 2WD, AWD
2003-2006 Chevrolet SSR
2002-2009 Chevrolet Trailblazer 2WD,4WD, AWD
2002-2009 GMC Envoy 2WD,4WD
2002 -2009 GMC Envoy Denali 2WD,4WD
2003-2008 ISUZU Ascender 2WD,4WD
2002 -2004 Oldsmobile Bravada 2WD,4WD
2005 -2009 Saab 9-7X
Description:
Position:Driver(LH Left) or Passenger(RH Right)Side Front
ABS Sensor Included: Yes
ABS Connector Shape: Round
Wiring Harness Included: Yes
Wiring Harness Length (in): 37.4 Inch
Number Of Mounting Bolts To Knuckle: 3
Number Of Lug Bolts Included: 6
Number Of Flange Bolts Included: 3
Driven Or Non-Driven: Non-Driven
Number Of Splines: 27
ABS Ring Type: Tone
Number Of ABS Sensor Ring Teeth: 55
Lug Bolt Thread Size: M12-1.50
Total Hub Diameter (in): 5.905 Inch
Total Hub Diameter (mm): 150mm
Hub Centerbore Diameter (in): 5 Inch
Hub Centerbore Diameter (mm): 127mm
Total Hub Height (in): 4.649 Inch
Total Hub Height (mm): 118.1mm
Flange Diameter (in): 5.925 Inch
Flange Diameter (mm): 150.5mm
Flange Offset (in): 1.850 Inch
Flange Offset (mm): 47mm
Flange Shape: Triangle
Flange Bolt Size (in): 1.645 Inch
Flange Bolt Size (mm): 41.8mm
Outer Ring Width (in): 3.67 Inch
Inner Ring Width (in): 0.75 Inch
Hub Pilot Diameter (in): 3.61 Inch
Hub Pilot Diameter (mm): 91.8mm
Flange Bolt Thread Size: M12-1.75
Material: Steel
Bearing Type: Ball
