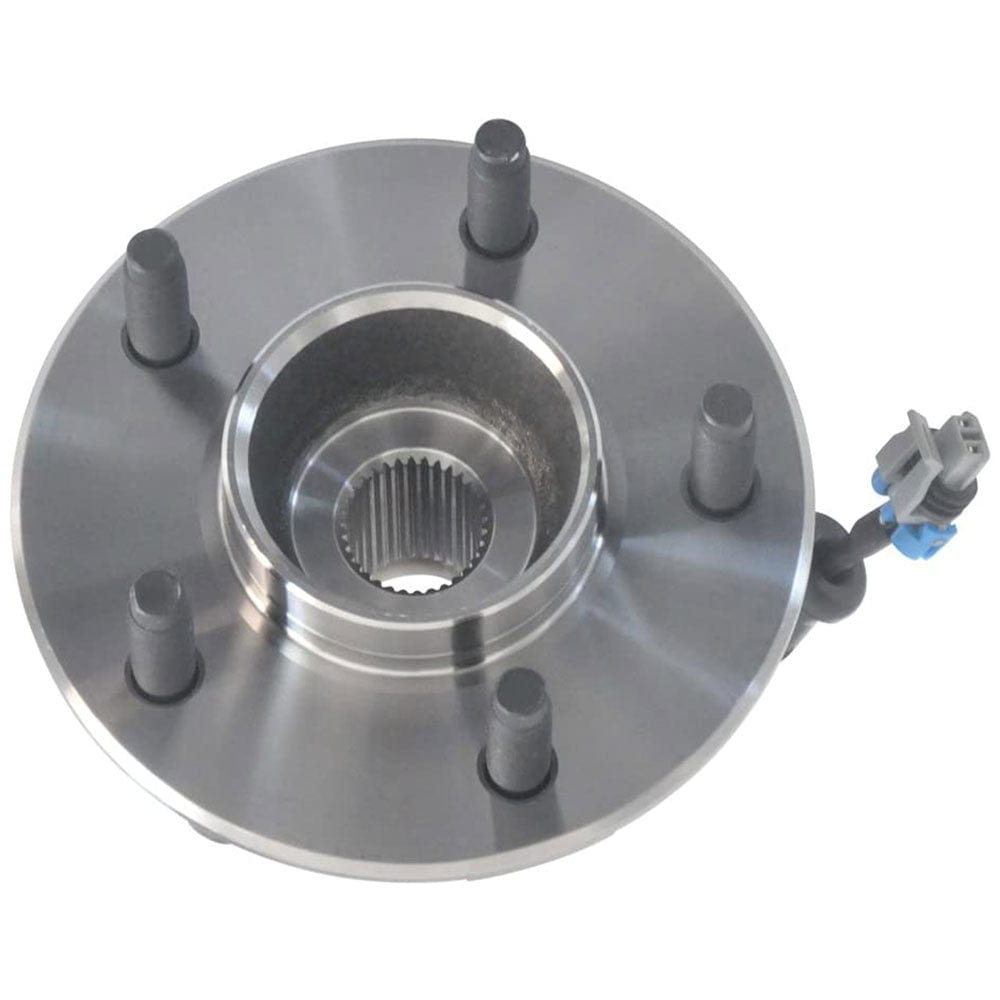

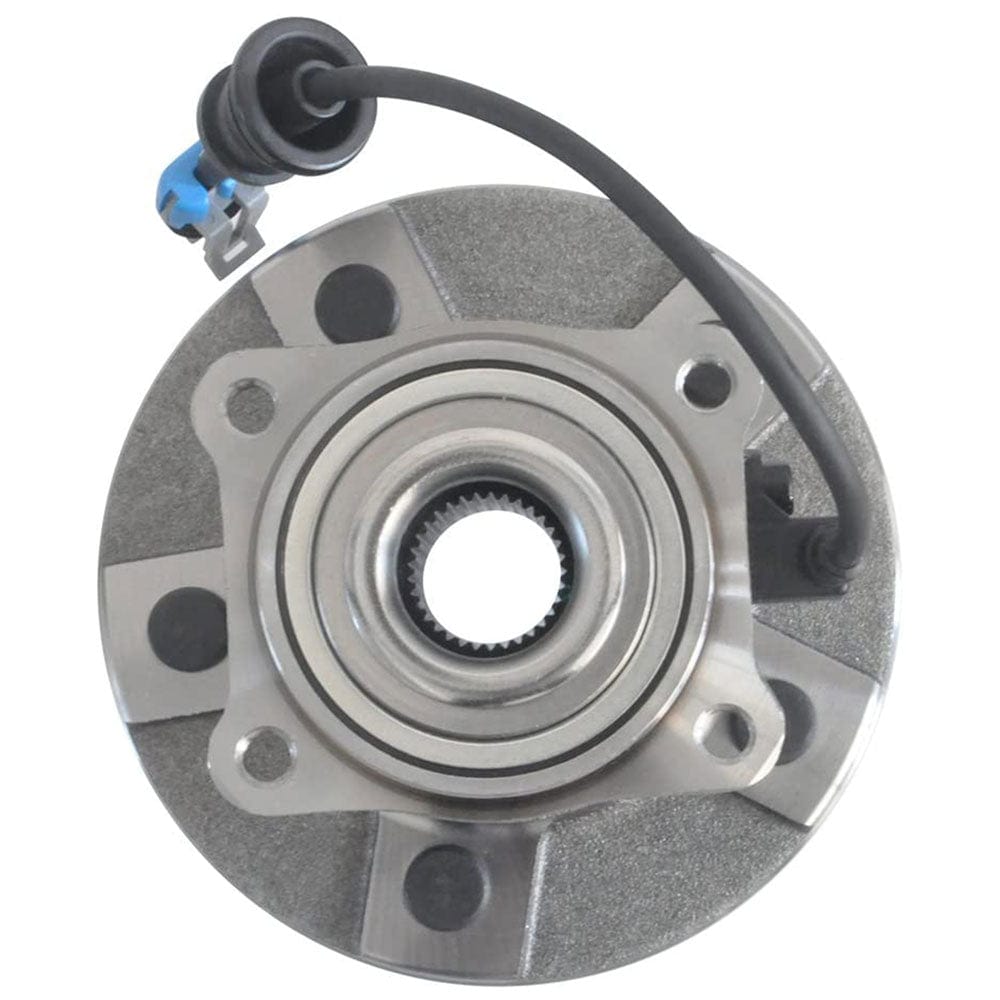

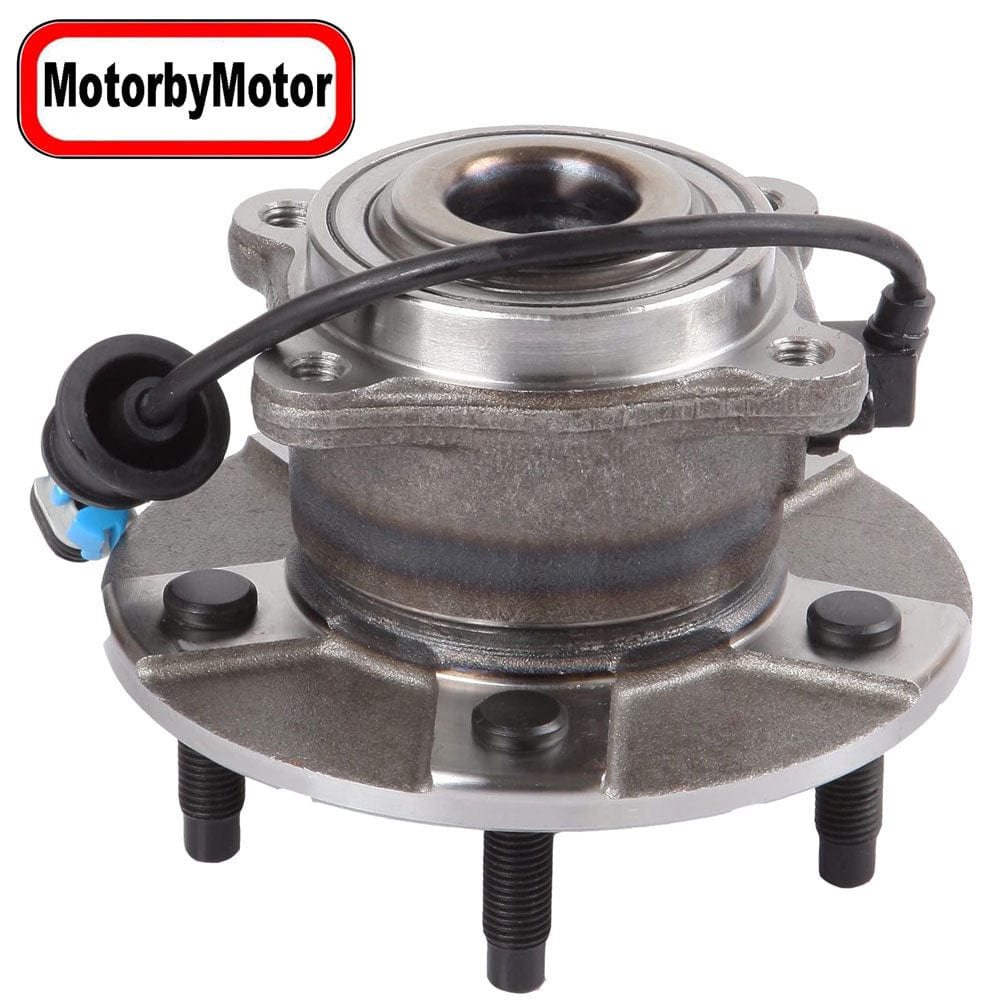

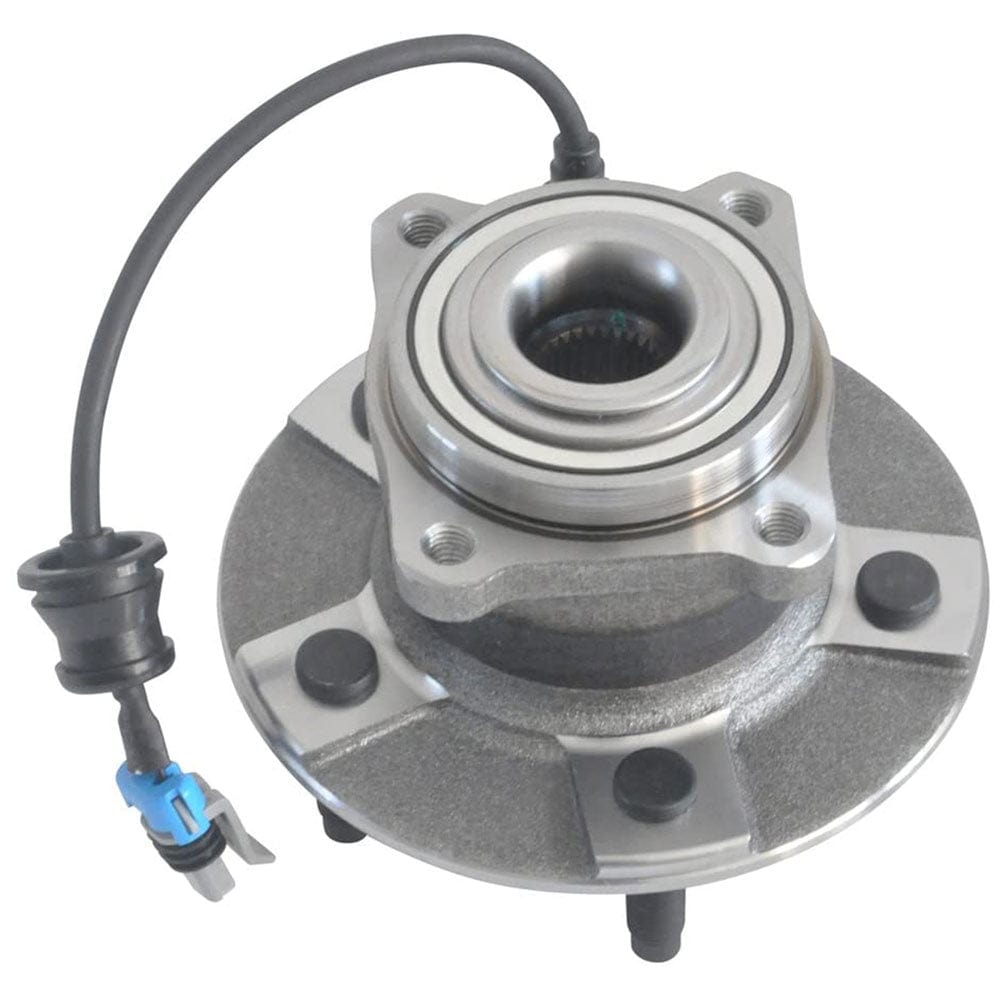

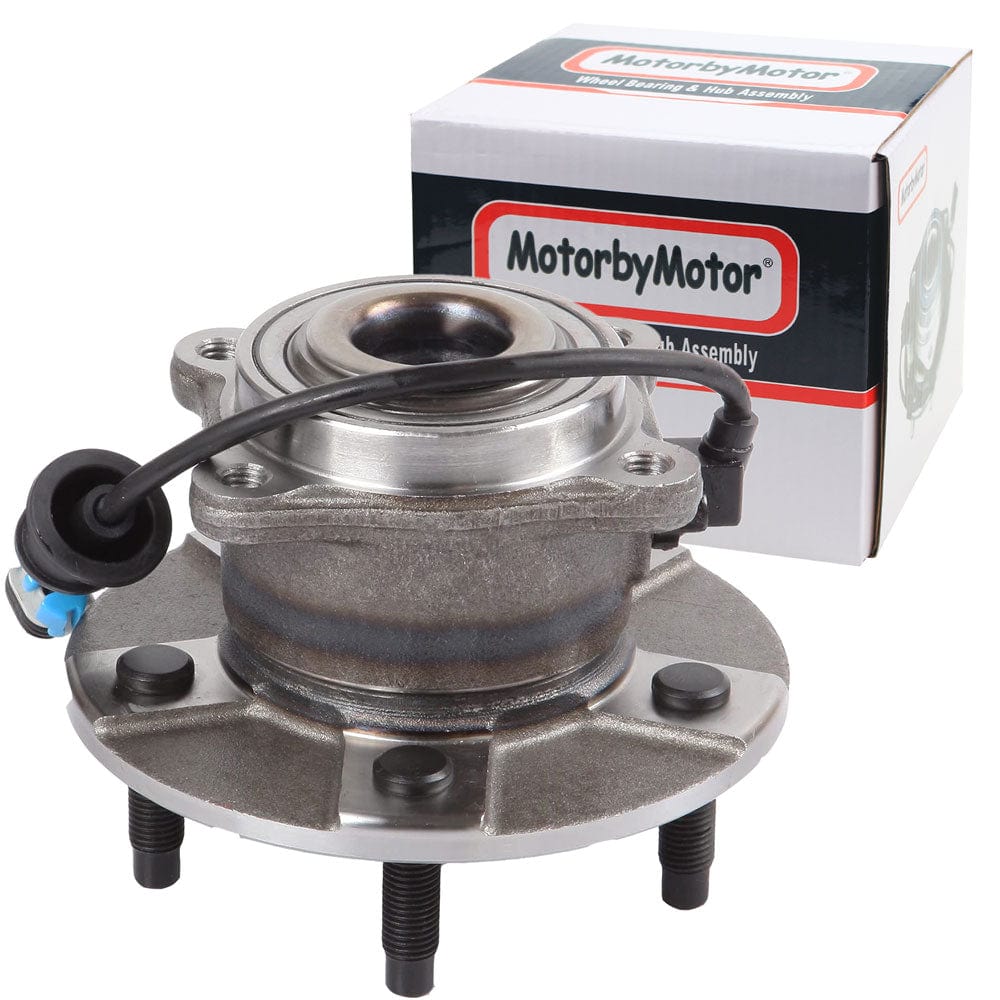

Saturn Vue Wheel Bearing Hub Assembly 2002-2007 Rear 512229
MotorbyMotor 512229 Rear Wheel Hub Assembly Fits for 2005-2006 Chevy Equinox, 2006 Pontiac Torrent, 2002-2007 Saturn Vue Wheel Hub w/5 Lugs, w/ABS
Fit:
2005 2006 Chevy Equinox
2006 Pontiac Torrent
2002 2003 2004 2005 2006 2007 Saturn Vue
Description:
Fits either LH (Driver Side) or RH (Passenger Side) REAR
Direct replacement
Has ABS with Integral Sensor installed
4 bolt rectangular flange
Fits 5 Lug Wheel
Studs already installed
Built to strict quality control standards
Wiring Harness Length (in): 9.6 Inch
Lug Bolt Thread Size: M12-1.50
Flange Bolt Size (in): 1.496 Inch
Flange Bolt Thread Size: M10-1.50
Inner Ring Width (in): 0.83 Inch
Total Hub Diameter (in): 5.905 Inch
Hub Centerbore Diameter (in): 4.527 Inch
Total Hub Height (in): 4.732 Inch
Flange Diameter (in): 5.905 Inch
Flange Offset (in): 2.559 Inch
Outer Ring Width (in): 2.22 Inch
Hub Pilot Diameter (in): 3.11 Inch
Feature:
Direct Fit Replacement
Highest Quality Materials
Precision Engineered
