1410 Series Universal Joint U-Joint 5-160X Greasable

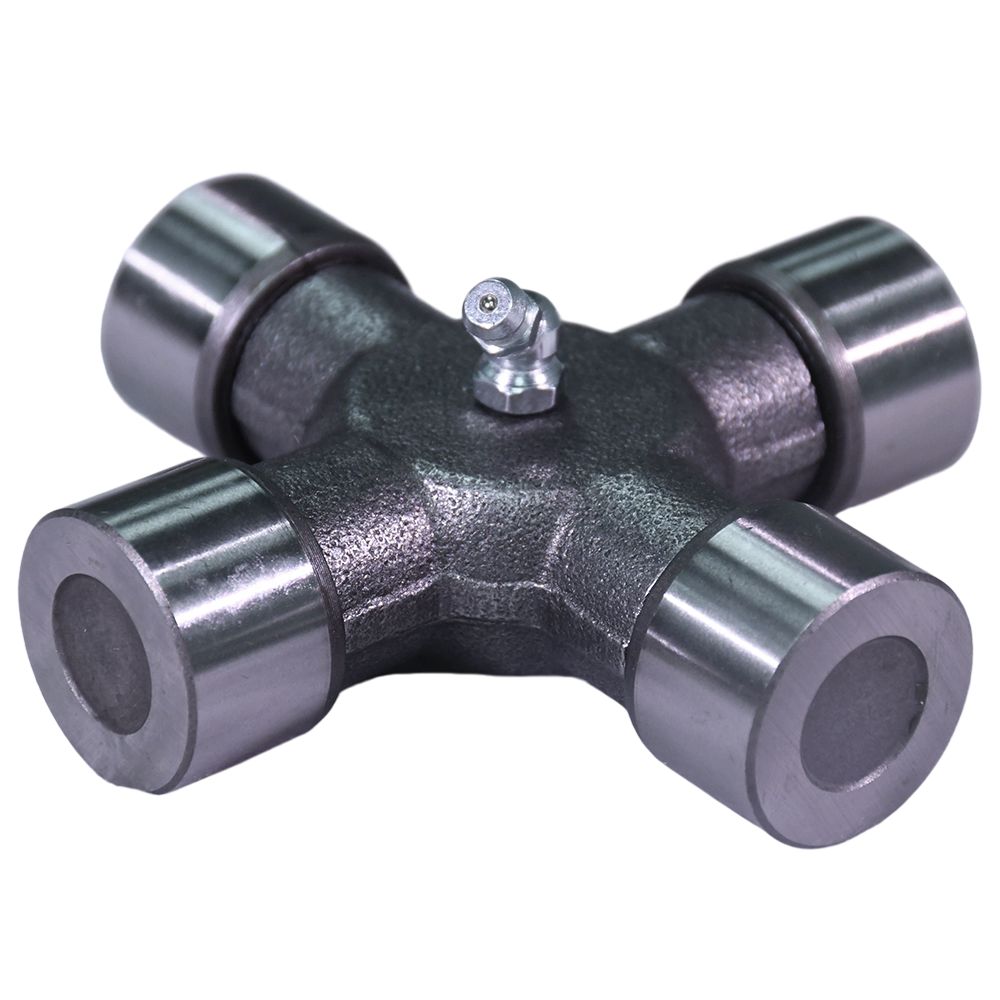

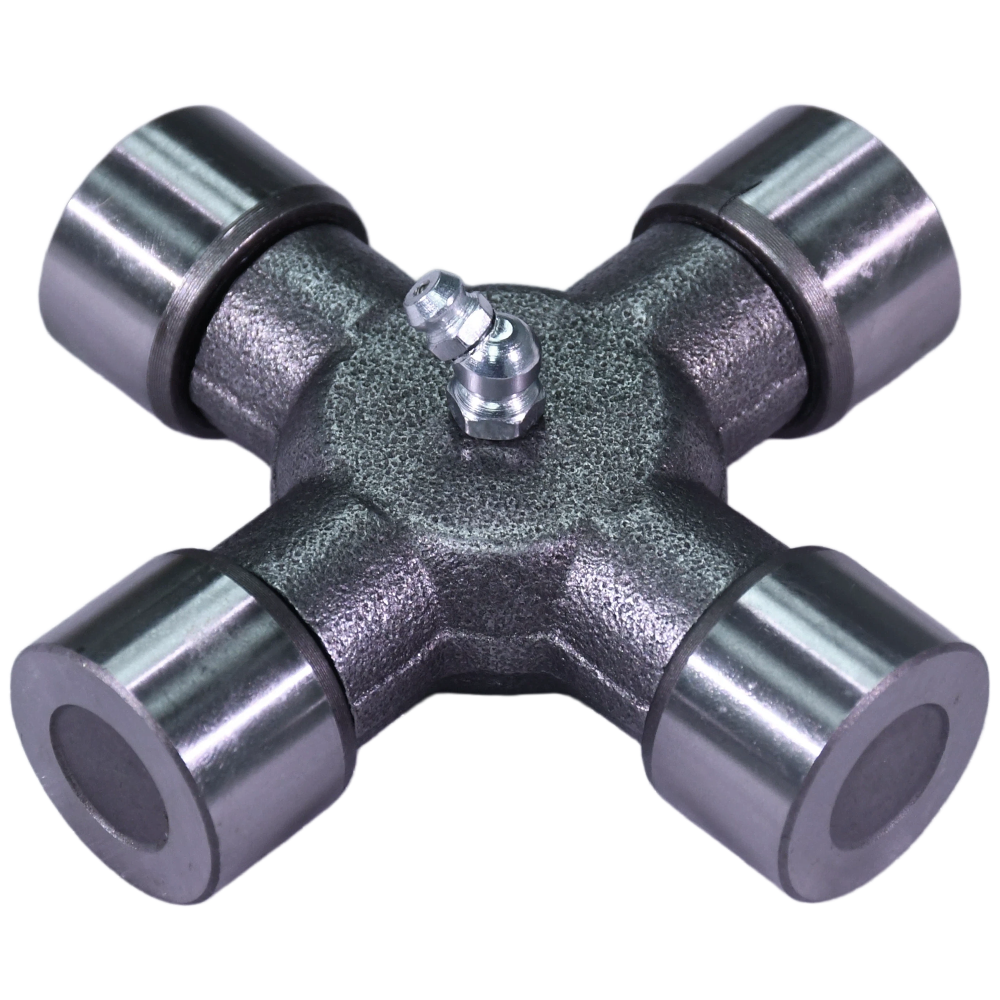

AFA Motors 1410 Series universal joint designed for compatible heavy-duty driveshaft applications. Featuring a forged cross, greasable construction, outside snap ring design, and precision-machined bearing cups, this U-joint provides a dependable replacement for compatible 1410 Series driveline applications.
Kit Includes

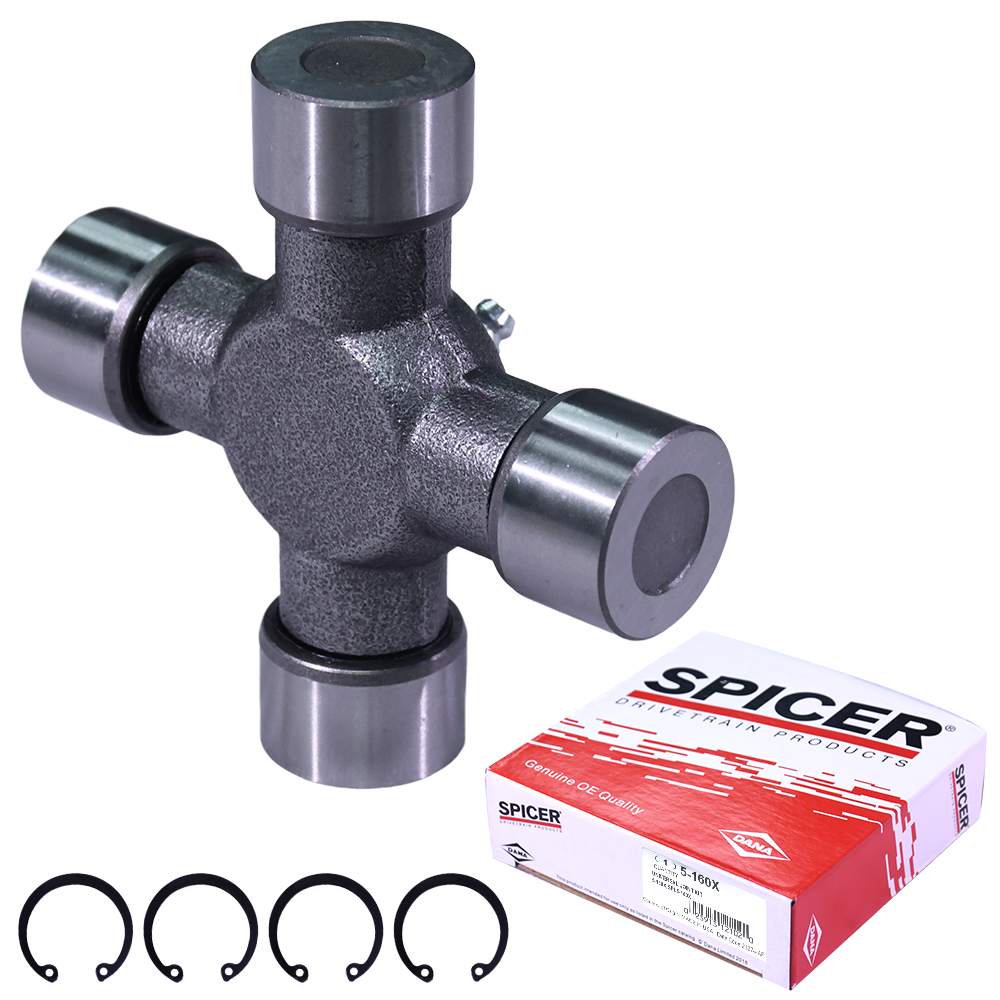

- 1 × 1410 Series Universal Joint / U-Joint - Reference 5-160X
Product Specifications
| Product Type | Universal Joint / U-Joint |
| Brand | AFA Motors |
| Series | 1410 Series |
| Reference Part Number | 5-160X |
| Condition | Brand New |
| Design | Forged Cross |
| Lubrication Type | Greasable / Lubricateable |
| Snap Ring Style | Outside Snap Ring |

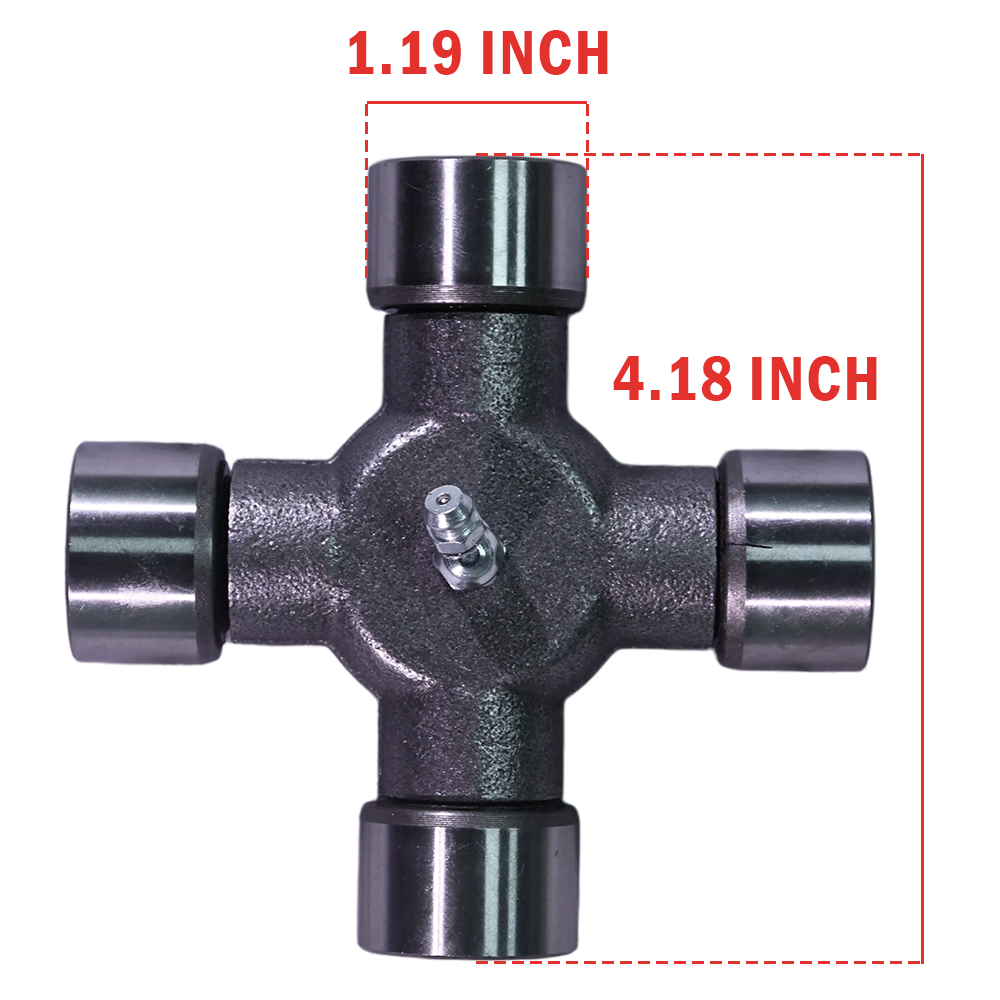

| Bearing Cup Diameter | 1.188 in. |
| Overall Width | 4.188 in. |
| Replacement Type | Direct Replacement |
| Quantity | 1 Piece |
Fitment Information
| Application | Required Specification |
|---|---|
| U-Joint Series | 1410 Series |
| Reference Part Number | 5-160X |
| Bearing Cup Diameter | 1.188 in. |
| Overall Width | 4.188 in. |
| Snap Ring Style | Outside Snap Ring |
| Lubrication Type | Greasable |
Product Features
✔ 1410 Series Configuration
Designed for compatible driveline applications requiring a 1410 Series universal joint.
✔ Forged Cross Design
Forged cross construction provides strength and durability for demanding driveshaft applications.
✔ Greasable Construction
Lubricateable design allows routine servicing to help maintain smooth operation and extend service life.

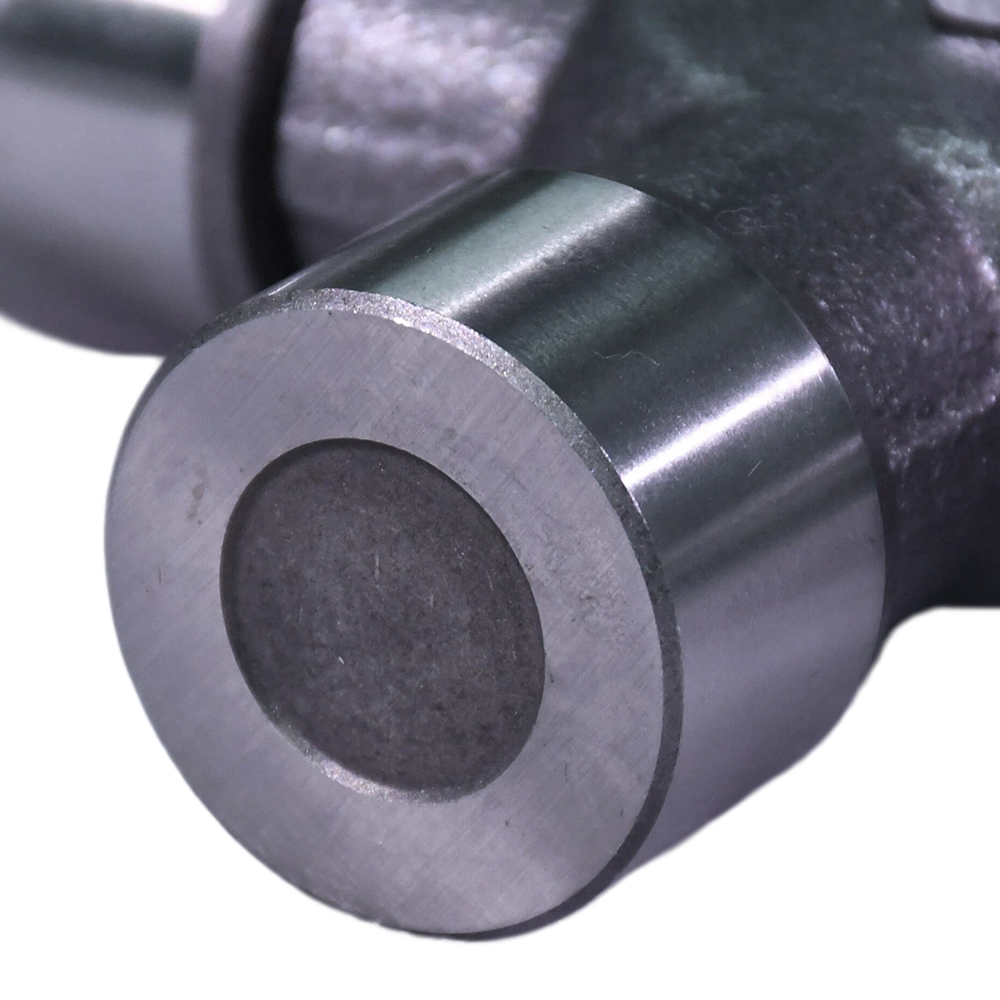

✔ Precision Bearing Cups
Features approximately 1.188-inch bearing cups for compatible 1410 Series driveline assemblies.
✔ Outside Snap Ring Design
Uses an outside snap ring configuration for proper retention in compatible yokes.
✔ Direct Replacement
Designed to replace worn or damaged U-joints that match the same dimensions and configuration.
How to Verify Fitment
| Measurement | Specification |
|---|---|
| Bearing Cup Diameter | 1.188 in. |
| Overall Width | 4.188 in. |
| Series | 1410 Series |
| Snap Ring | Outside Snap Ring |
| Reference Number | 5-160X |
Package Includes
- 1 × AFA Motors 1410 Series Greasable Universal Joint
Installation Notes
- Measure your original U-joint before purchasing.
- Confirm the bearing cup diameter is approximately 1.188 in.
- Confirm the overall width is approximately 4.188 in.
- Verify the original joint uses an outside snap ring configuration.
- Confirm compatibility with 1410 Series applications.
- Lubricate the U-joint according to proper service procedures after installation.
- Professional installation is recommended.
