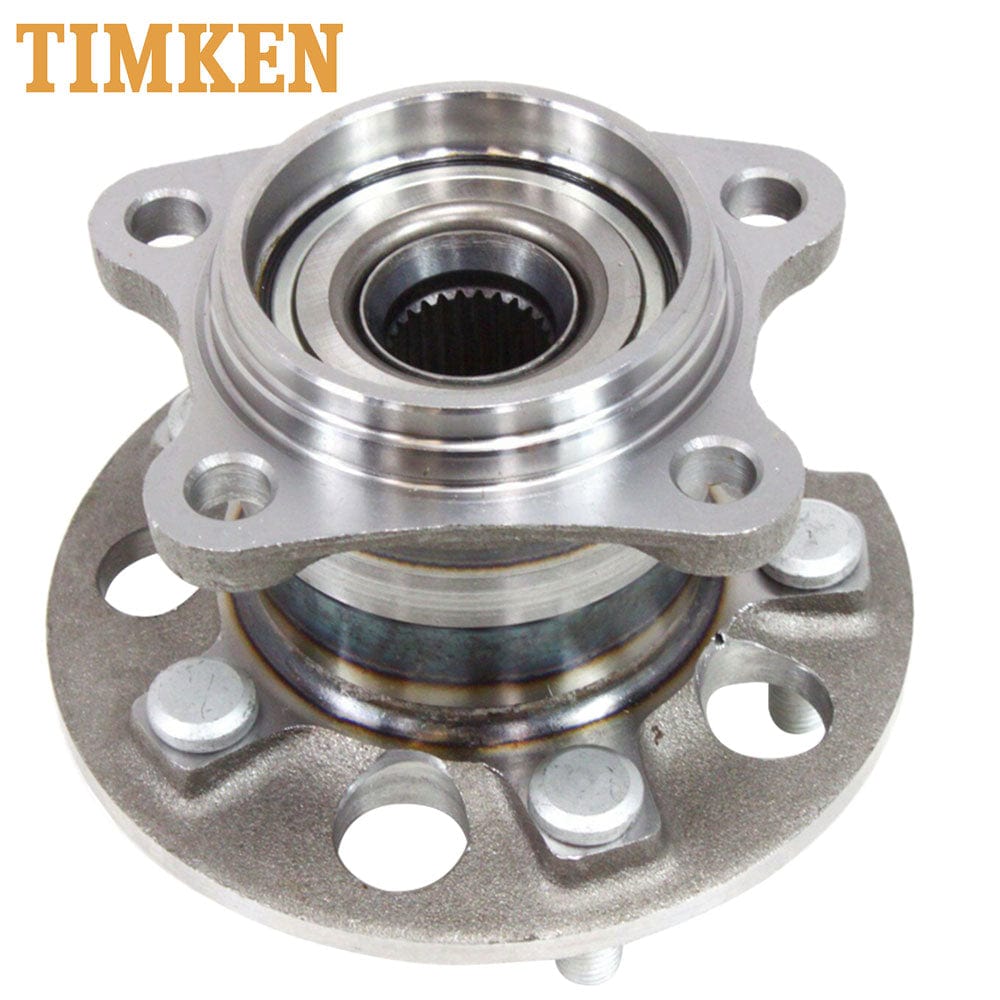

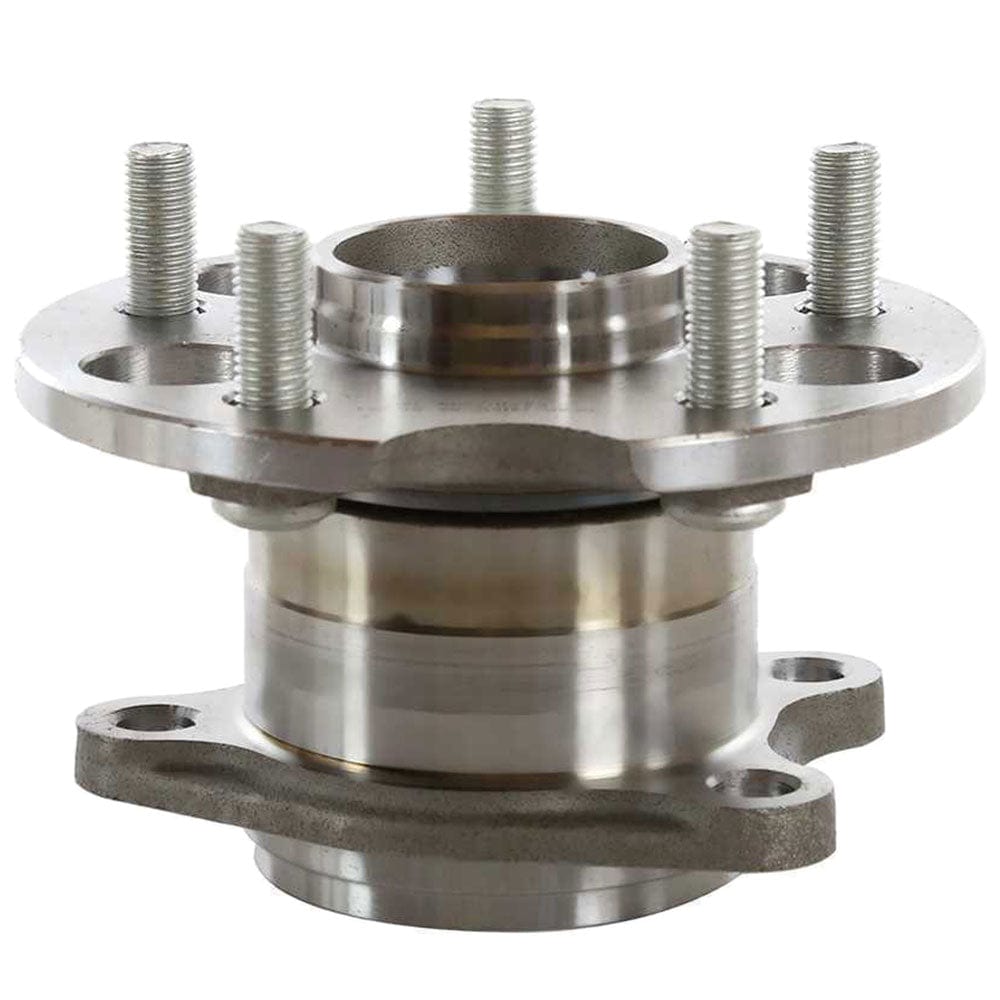

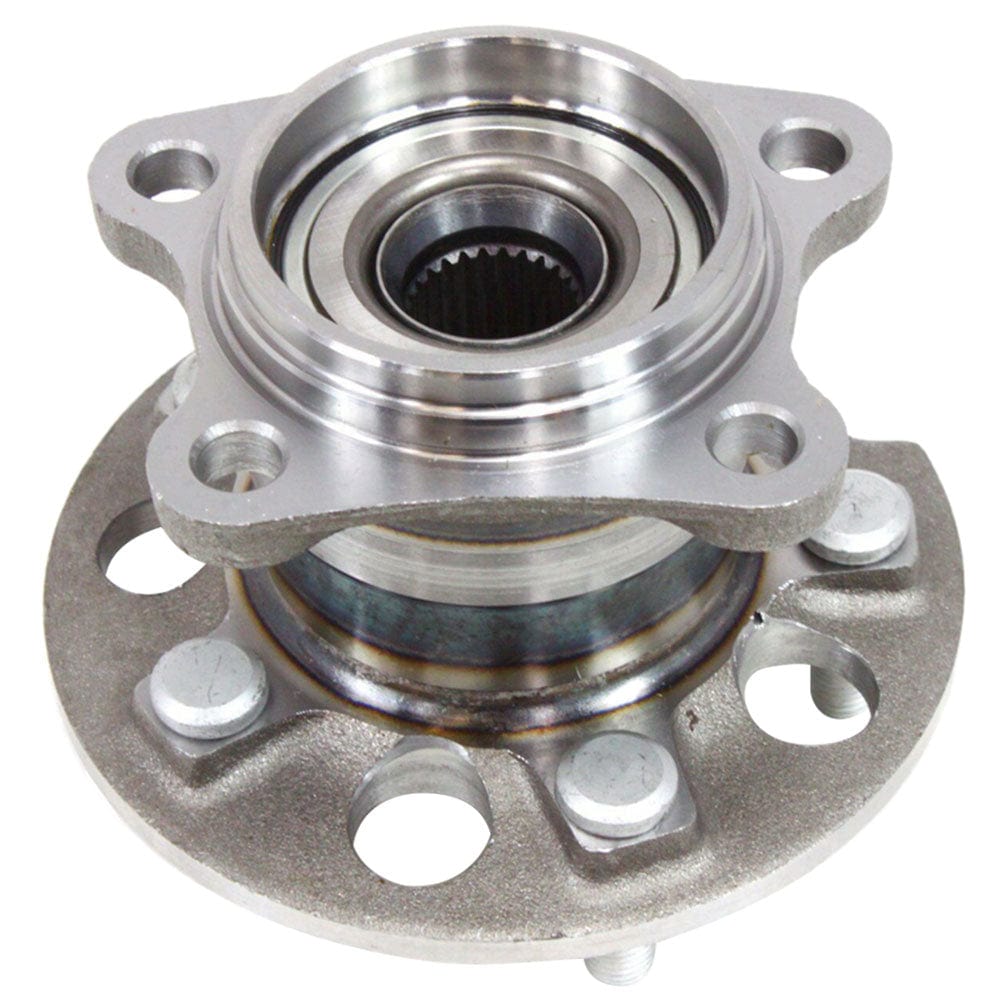

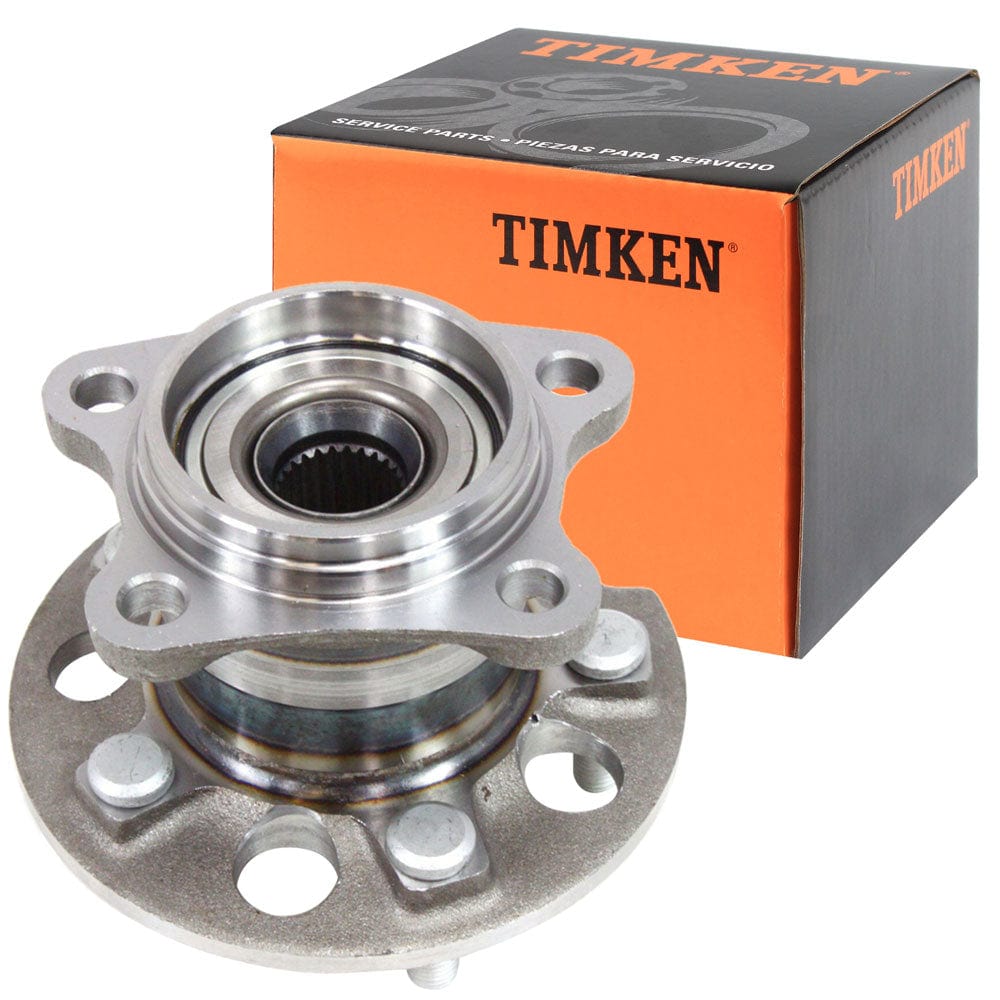

timken ha590338 rear wheel bearing hub assembly
specifications:
| ABS/Non-ABS (Y/N) | N |
| Bearing Type | BALL |
| Bolt Circle Diameter B (IN) | 4.500 |
| Bolt Circle Diameter H (IN) | 4.330 |
| Bolt Quantity | 12.5(4) |
| Bolt Size (IN) | 0.492 |
| Brake Pilot Dia (IN) | 2.441 |
| Driven or Non Driven? | Driven |
| Flange (#) | 2.000 |
| Flange Diameter (IN) | 5.984 |
| Flange Offset (IN) | 2.835 |
| Flange Shape | Modified |
| Generation Type | 3 |
| Hub Pilot Dia G (IN) | 3.125 |
| Roll Form (Y) | N |
| Spline Quantity | 26.000 |
| Wheel Pilot Dia (MM) | 60.000 |
| Wheel Studs (Y/N) | Y |
| Wheel Stud Qty | 5.000 |
| Wheel Stud Size (IN) | M12X1.5 |
fitment for timken - ha590338
Lexus Rx330 2004 - 2006 Awd
- Lexus Rx330 2004
- Lexus Rx330 2005
- Lexus Rx330 2006
Lexus Rx350 2007 - 2009 Awd
- Lexus Rx350 2007
- Lexus Rx350 2008
- Lexus Rx350 2009
Lexus Rx400H 2006 - 2008 Awd
- Lexus Rx400H 2006
- Lexus Rx400H 2007
- Lexus Rx400H 2008
Toyota Highlander 2013-2014 Awd
Toyota Venza 2009 - 2016 Awd
- Toyota Venza 2009
- Toyota Venza 2010
- Toyota Venza 2011
- Toyota Venza 2012
- Toyota Venza 2013
- Toyota Venza 2014
- Toyota Venza 2015
- Toyota Venza 2016
