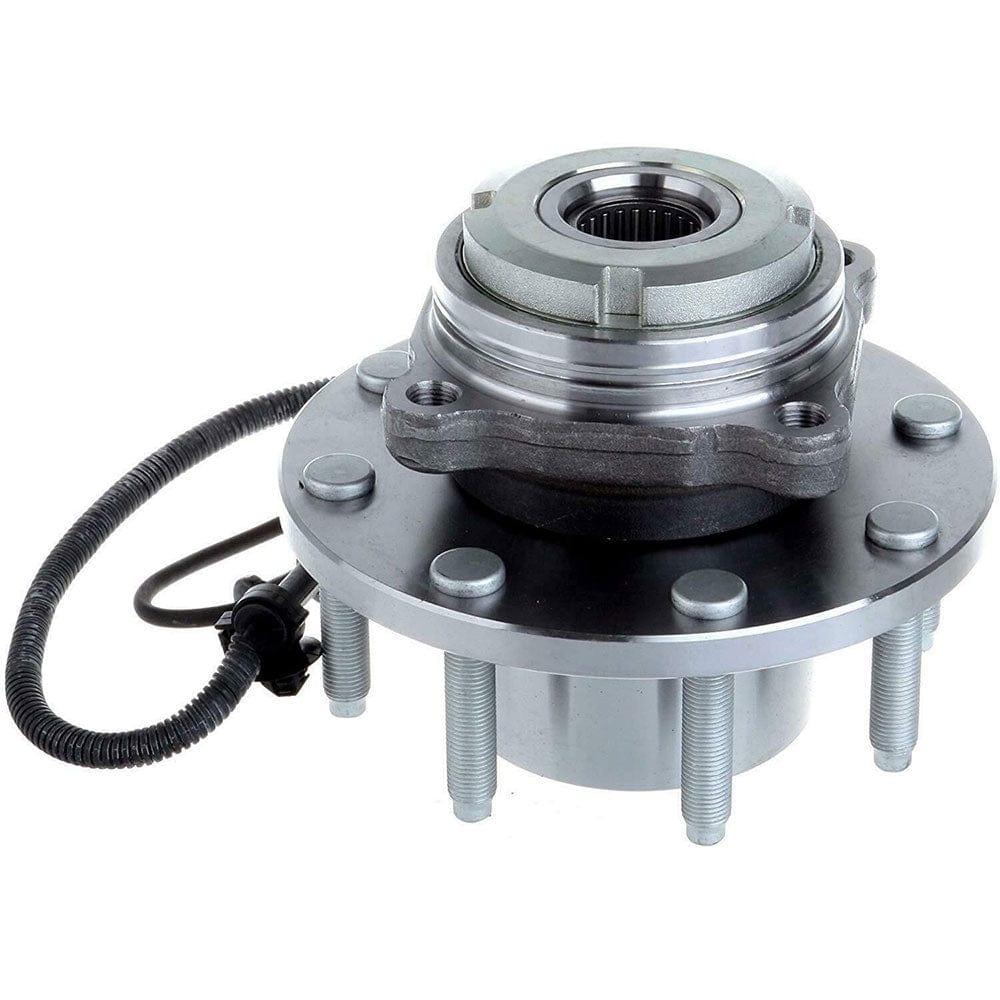

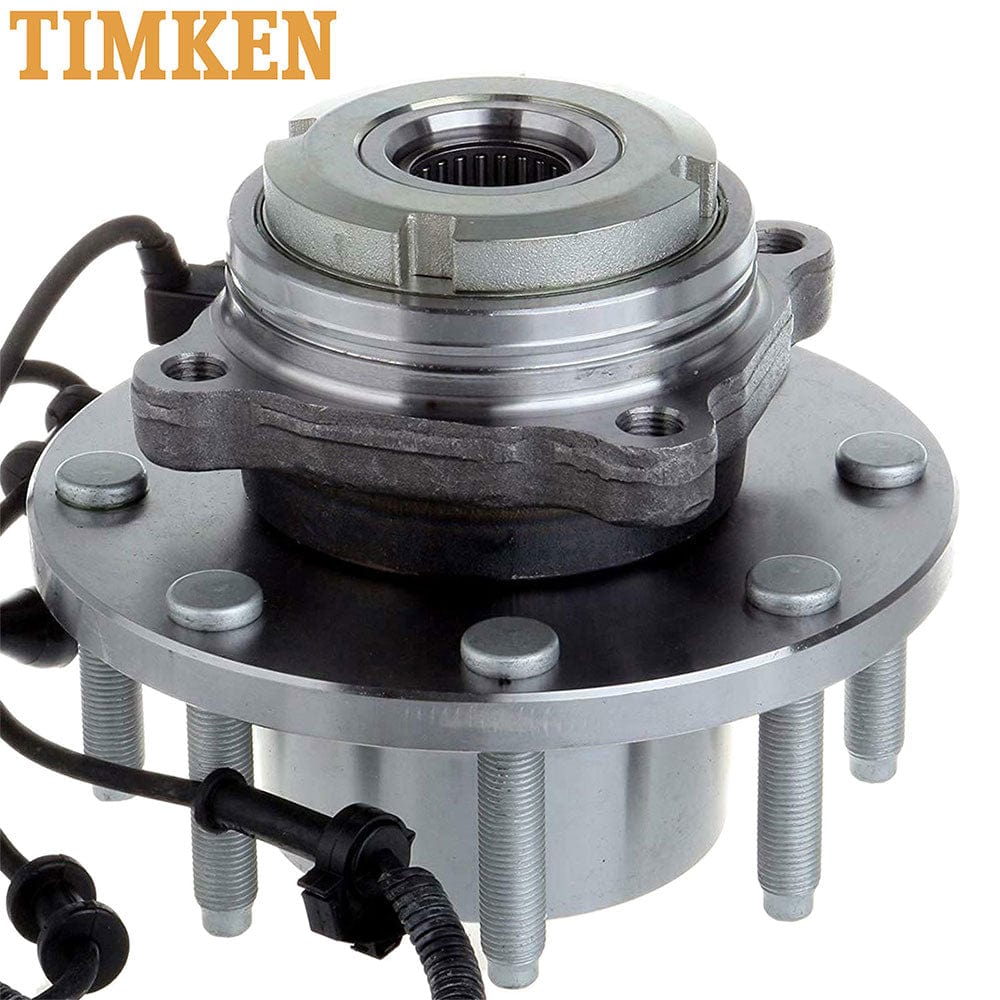

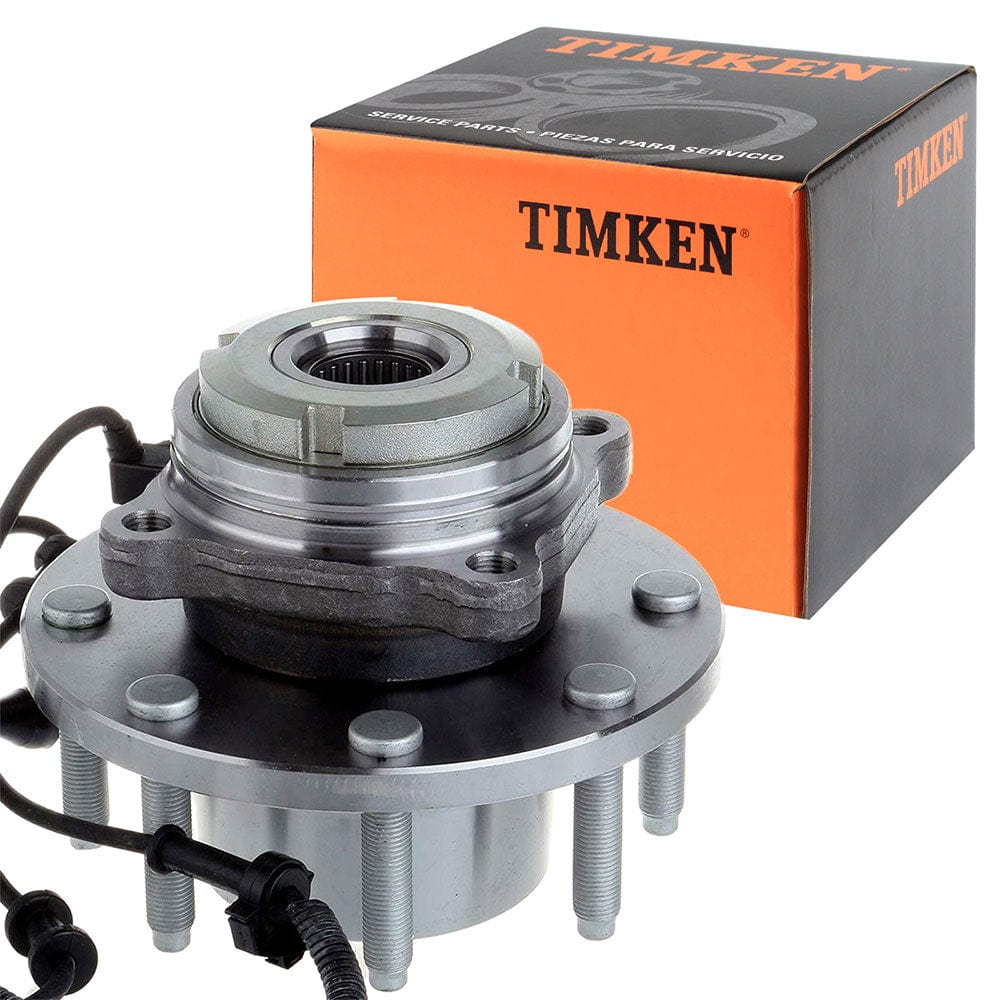

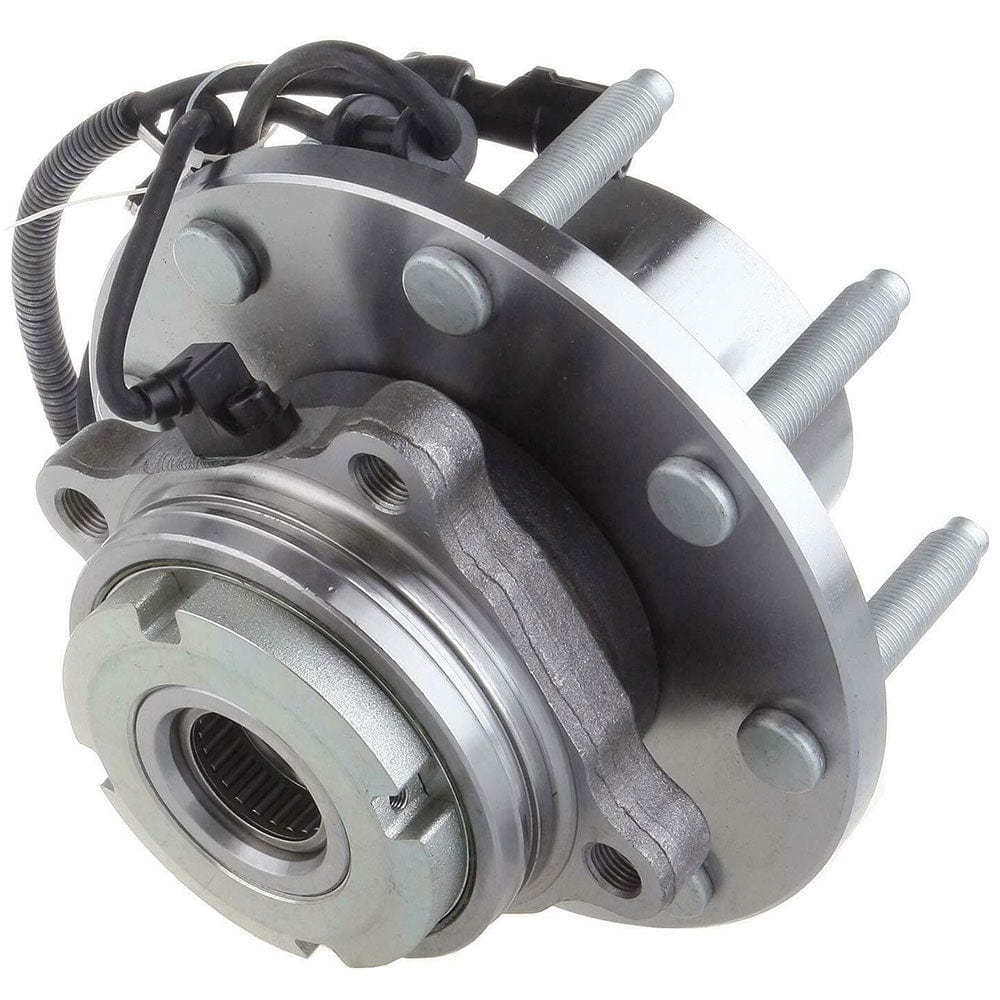

Timken SP580205 wheel bearing hub assembly
Specifications:
| ABS/Non-ABS (Y/N) | Y |
| ABS Type | Sensor |
| Bearing Type | Tapered |
| Bolt Circle Diameter B (IN) | 6.693 |
| Bolt Circle Diameter H (IN) | 5.512 |
| Bolt Quantity | 4.000 |
| Bolt Size (IN) | M14x1.5 |
| Brake Pilot Dia (IN) | 5.079 |
| Driven or Non Driven? | Driven |
| Flange (#) | 2.000 |
| Flange Diameter (IN) | 7.992 |
| Flange Offset (IN) | 2.146 |
| Flange Shape | Square |
| Generation Type | 2 |
| Hub Pilot Dia G (IN) | 4.484 |
| Roll Form (Y) | N |
| Spline Quantity | 55.000 |
| Wheel Pilot Dia (MM) | 124.970 |
| Wheel Stud Qty | 8.000 |
| Wheel Stud Size (IN) | M14x1.5 |
Fitment for Timken - SP580205
FORD F-350 SUPER DUTY 2003 2004 SRW; Fine Threads - 4x4 w/ABS Only
FORD F-250 SUPER DUTY 2003 2004 SRW; Fine Threads;4x4 w/ABS Only
FORD EXCURSION 2003 2005 SRW; Fine Threads - 4x4 w/ABS Only
