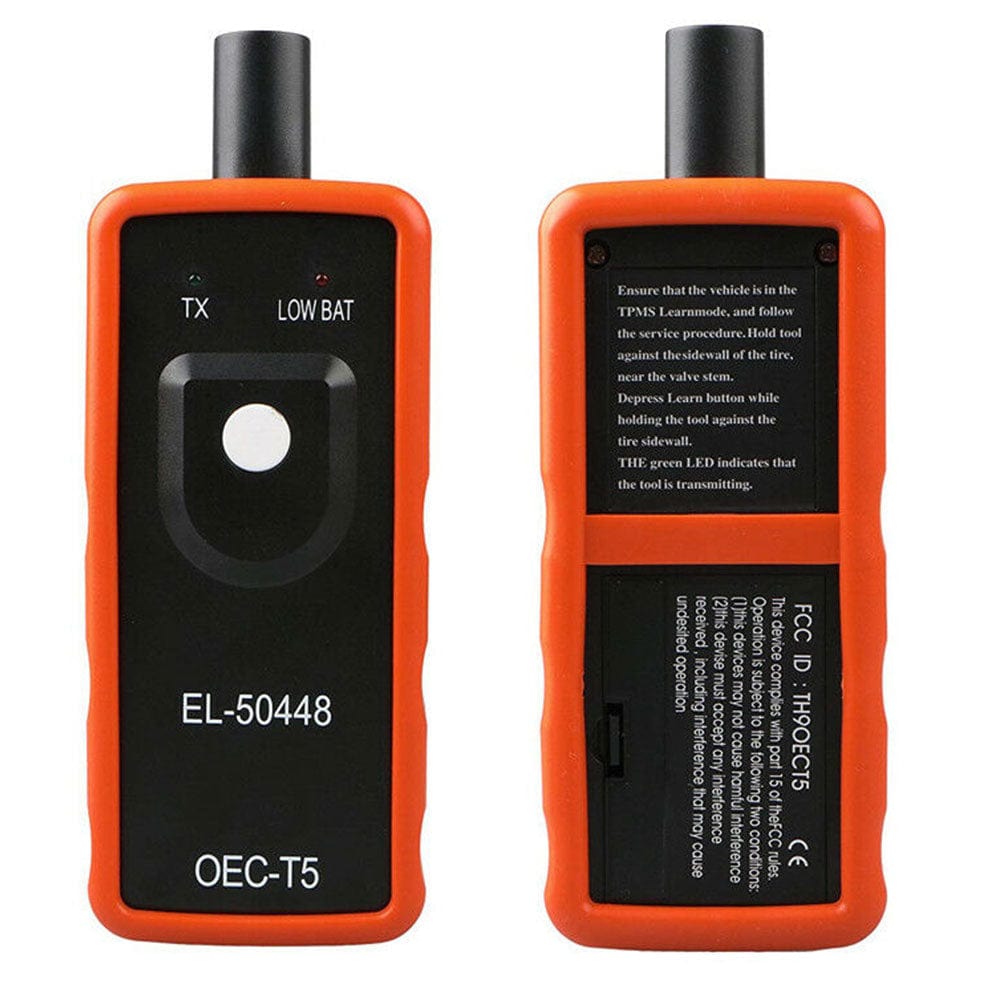

GM TPMS Reset Tool EL-50448 Car Auto Tire Pressure Monitor Sensor OEC-T5 For GM USA
Regular price
$15.00
Most Of G.M Vehicles Equipped With a 315 or 433 MHz (TPMS) Tire Pressure Monitoring System, a "Sensor Re-Learn Procedure" must be performed after tire rotations, Remote Control Door Lock Receiver Module replacement or Tire Pressure Sensor replacement.
This re-learn procedure can be performed by using EL-50448 special tire pressure tool.EL-50448 works on 2014 G.M models too.
Type: TPMS Relearn Tool For GM
Material: High Plastic & Metal
Hardware Version: OEC-T5
Software Version: EL-50448
Power: 9W
Voltage:12V
OBD Interface: OBDII
Supported System: TPMS

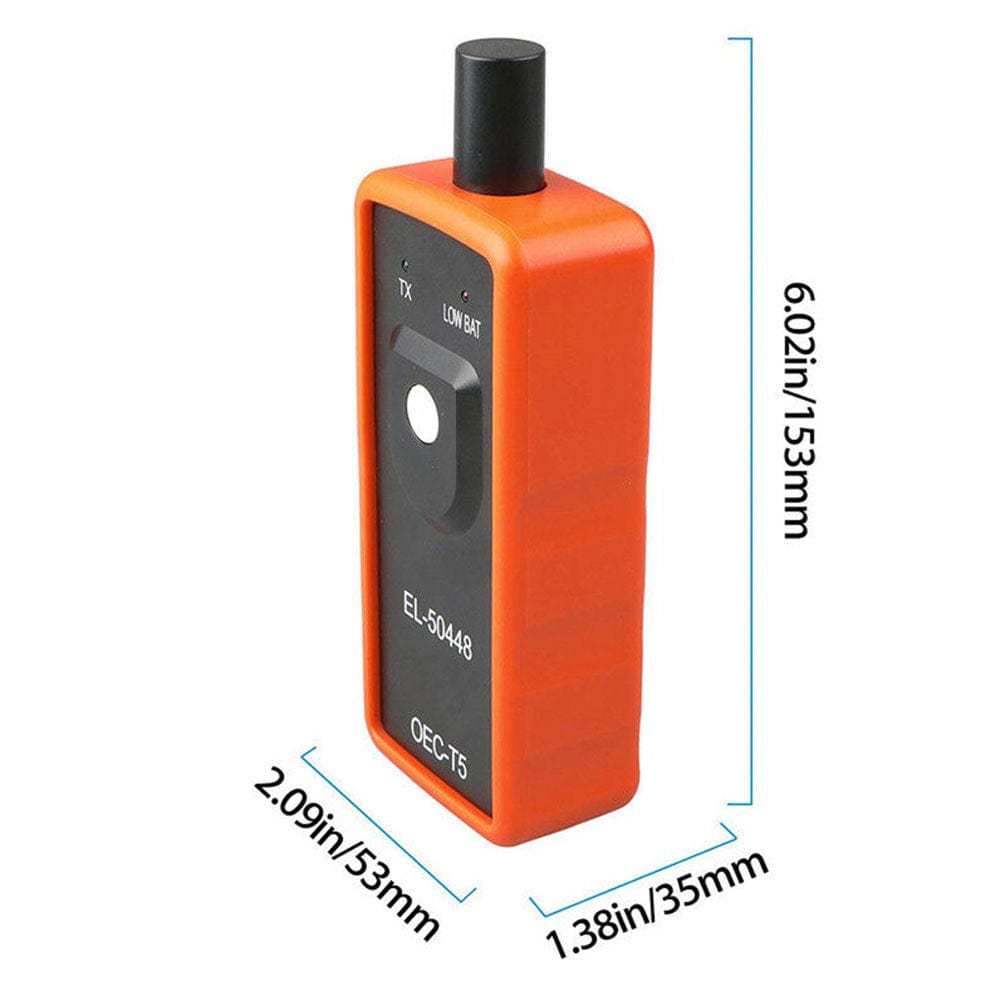

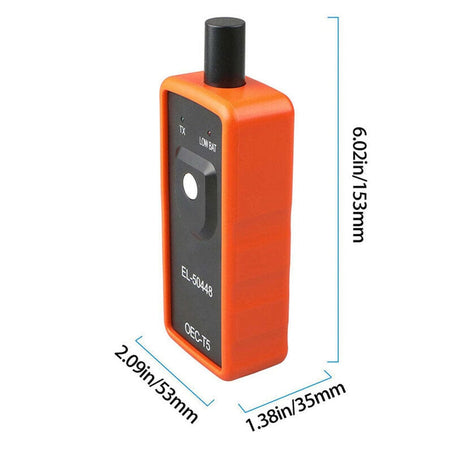

Size:6.02*2.09*1.38in(15.3*5.3*3.5cm)
Weight:145g(5.1oz)

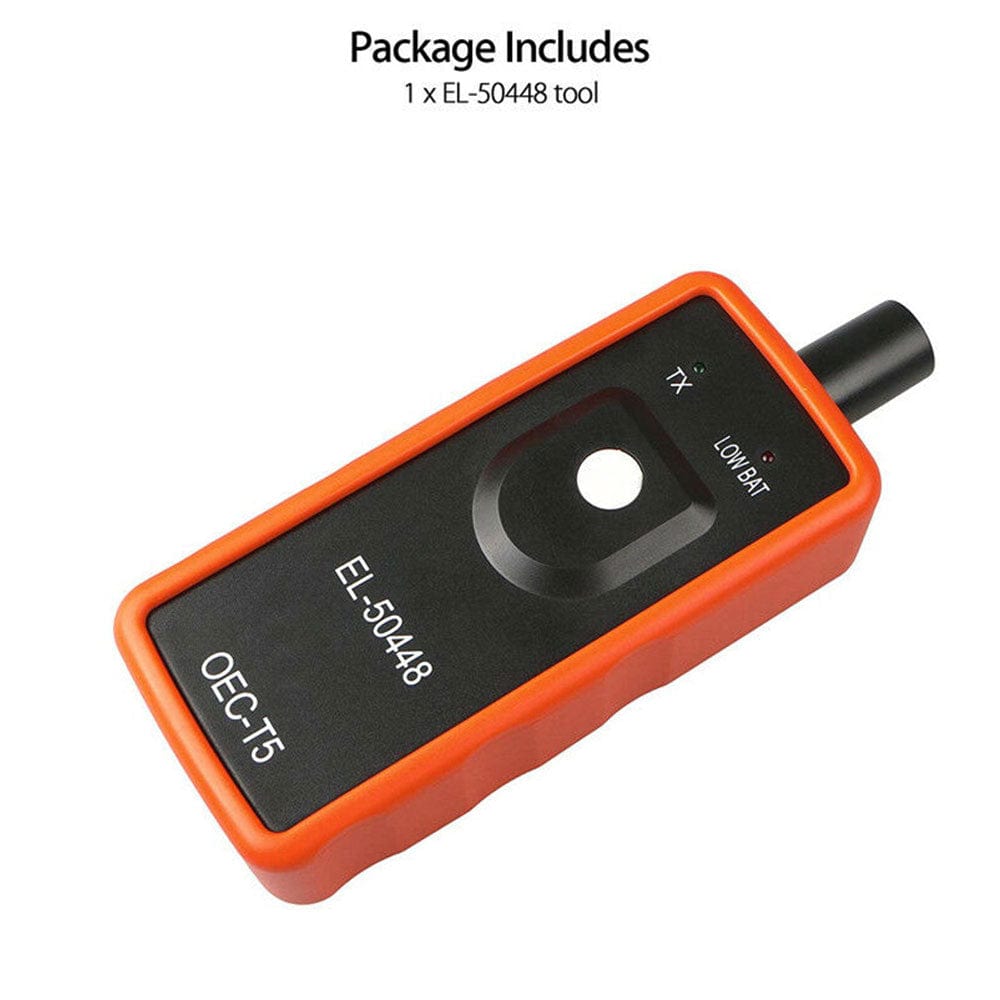

Package Included
1 x EL-50448 Tool
How to Use EL 50448 TPMS Activation Tool?
Step 1 - Enter Leaning Mode
Set The Gearshift Lever to "P"
Put The Ignition Switch to ¡°ON¡±
Enter The Interface Of Tire Pressure Display By DIC
DIC Shows "Press Set / Ctrl to Re-learn"
Press ¡°Set / Ctrl¡±
The turn Signal is Lighted For 3 Seconds And The Horn Beep Sound Twice To Enter The Learning Mode.

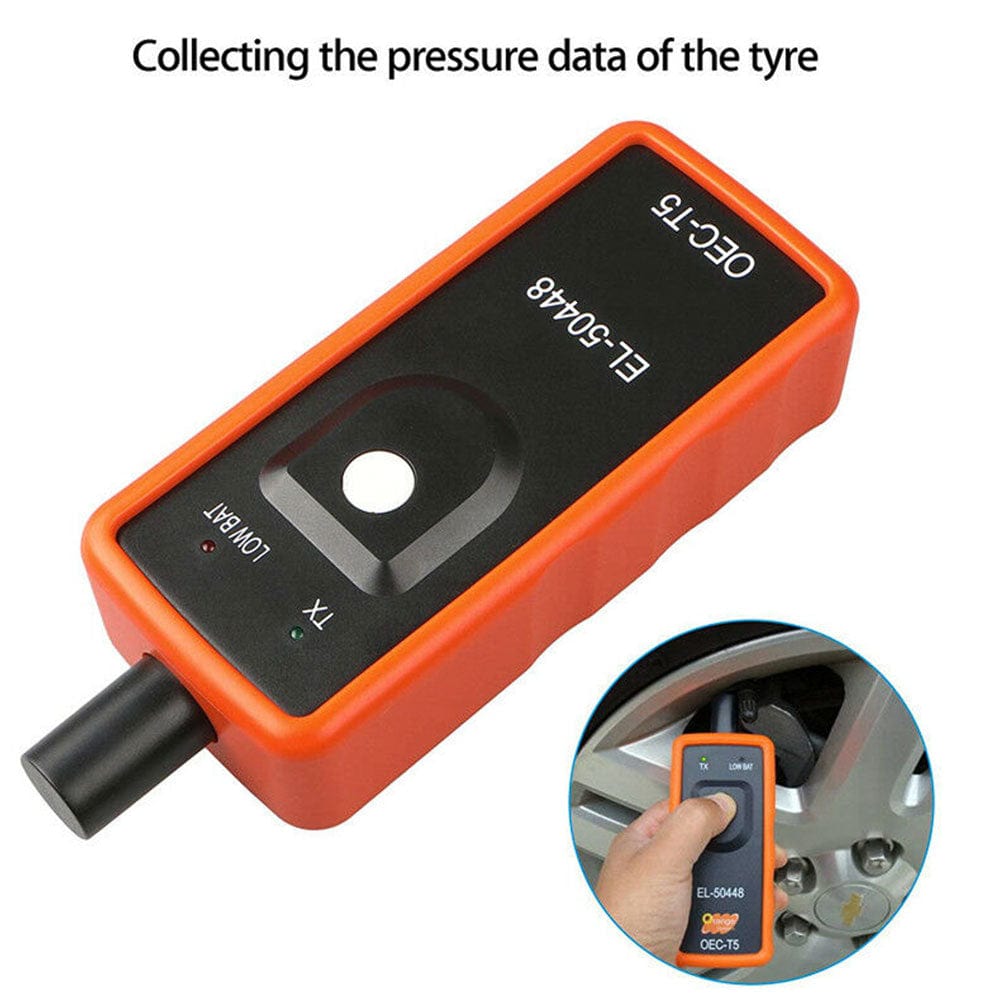

Step 2 - Read Tire Pressure Sensor Information
Start From The Front-Left Wheel,

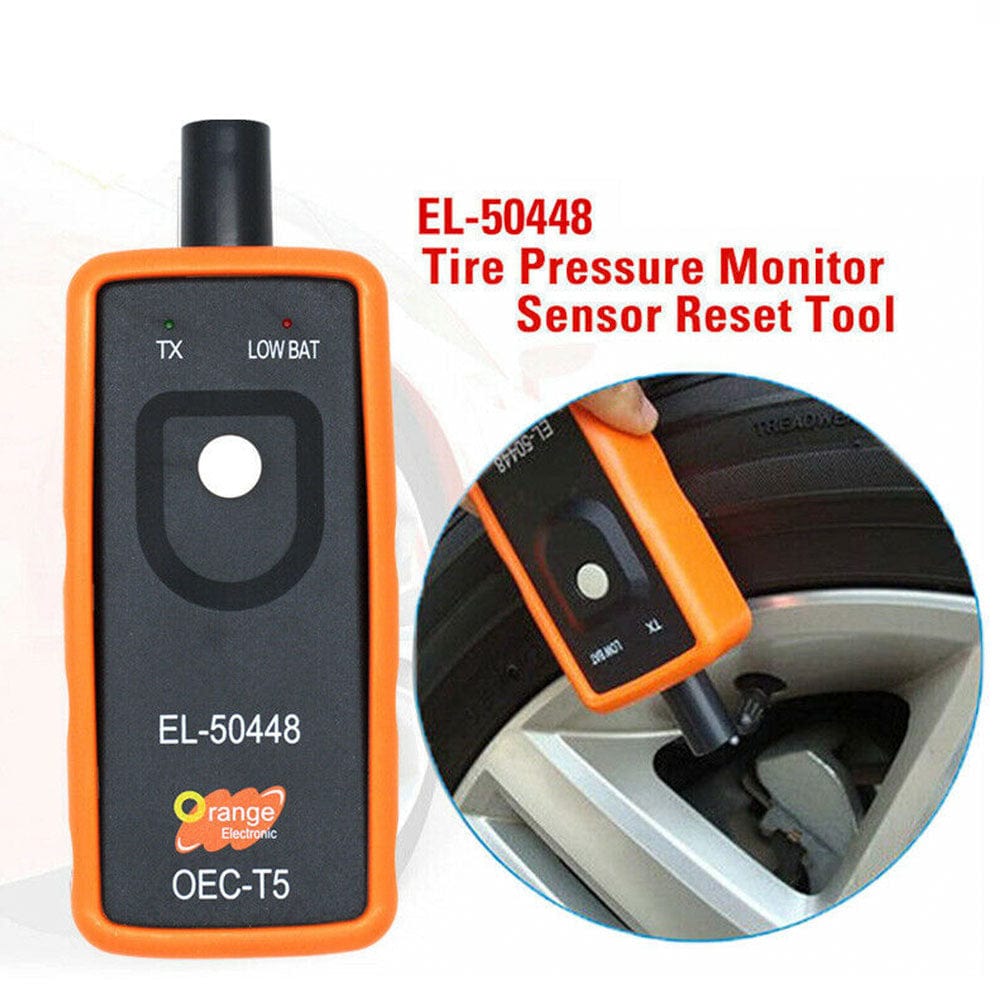

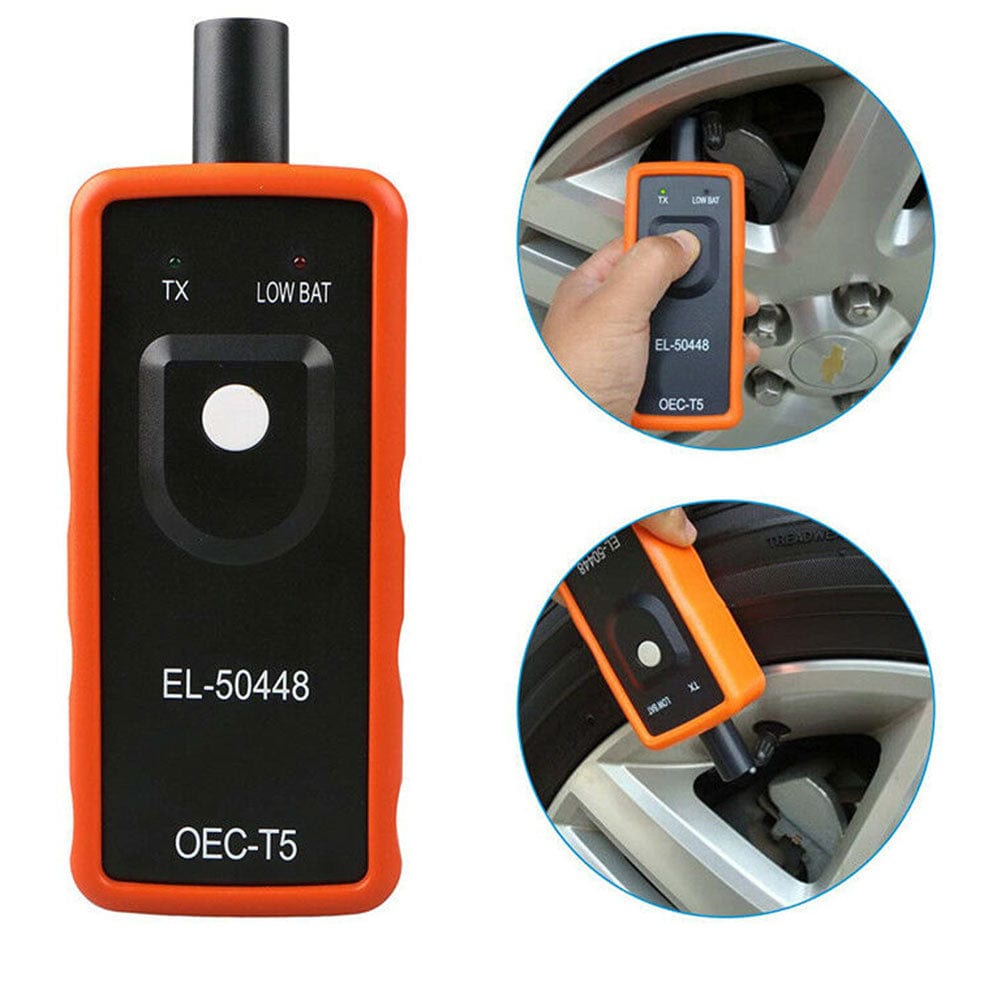

Make The J-46079 or Diagnostic Tool EL-50448 Antenna Up Against The Valve Core Position & Close to The Rim Of The Tire Sidewall
El-50448 Tire Pressure Tool Starts by The Start Switch
Successful to Read The Tire Pressure Sensor Information When The Horn Bleeps Once
Step 3 - Same Method To Read Other Tire Pressure Information
Follow The Instuction Above To Read Tire Pussure Of The Front-Right, Rear-Right, Rear-left wheels.
Turn Signals is Lighted For 3 Seconds And The Horn Bleeps Twice When The Learning is Complete.
For Certain Vehicles Equipped With a Tire Pressure Monitoring (TPM) System, a "Sensor Re-Learn Procedure" Must be Performed After Tire Rotations, Remote Control Door Lock Receiver Module Replacement or Tire Pressure Sensor Replacement. This Re-learn Procedure Can be Performed by Using Special Tool 50448
Please Kindly Note:
The Package Does Not Include The Charger And Battery.
This re-learn procedure can be performed by using EL-50448 special tire pressure tool.EL-50448 works on 2014 G.M models too.
Type: TPMS Relearn Tool For GM
Material: High Plastic & Metal
Hardware Version: OEC-T5
Software Version: EL-50448
Power: 9W
Voltage:12V
OBD Interface: OBDII
Supported System: TPMS
Size:6.02*2.09*1.38in(15.3*5.3*3.5cm)
Weight:145g(5.1oz)
Package Included
1 x EL-50448 Tool
How to Use EL 50448 TPMS Activation Tool?
Step 1 - Enter Leaning Mode
Set The Gearshift Lever to "P"
Put The Ignition Switch to ¡°ON¡±
Enter The Interface Of Tire Pressure Display By DIC
DIC Shows "Press Set / Ctrl to Re-learn"
Press ¡°Set / Ctrl¡±
The turn Signal is Lighted For 3 Seconds And The Horn Beep Sound Twice To Enter The Learning Mode.
Step 2 - Read Tire Pressure Sensor Information
Start From The Front-Left Wheel,
Make The J-46079 or Diagnostic Tool EL-50448 Antenna Up Against The Valve Core Position & Close to The Rim Of The Tire Sidewall
El-50448 Tire Pressure Tool Starts by The Start Switch
Successful to Read The Tire Pressure Sensor Information When The Horn Bleeps Once
Step 3 - Same Method To Read Other Tire Pressure Information
Follow The Instuction Above To Read Tire Pussure Of The Front-Right, Rear-Right, Rear-left wheels.
Turn Signals is Lighted For 3 Seconds And The Horn Bleeps Twice When The Learning is Complete.
For Certain Vehicles Equipped With a Tire Pressure Monitoring (TPM) System, a "Sensor Re-Learn Procedure" Must be Performed After Tire Rotations, Remote Control Door Lock Receiver Module Replacement or Tire Pressure Sensor Replacement. This Re-learn Procedure Can be Performed by Using Special Tool 50448
Please Kindly Note:
The Package Does Not Include The Charger And Battery.
