Trailer Axle Kits with 4 on 4" Bolt Idler Hub & 1" Round BT8 Spindle

"WHEEL Spindle & 4-4"" Bolt Circle Trailer Hub. 4 studs 4"" Bolt circle using L44643 inner and outer bearing hub. (Spindle 1in.). Includes Hub, inner bearing, outer bearing, seal, grease cap & lug nuts. BT8 Spindle, Spindle base size=1-1/2"" Spindle length=3 3/8"" Overall length =8 1/4"". Rated at 1000 lbs. per spindle, two will hold 2,000 lbs.


Each Hub has a 1,000 lb Capacity, used on 2,000lbs in Axles
Size:

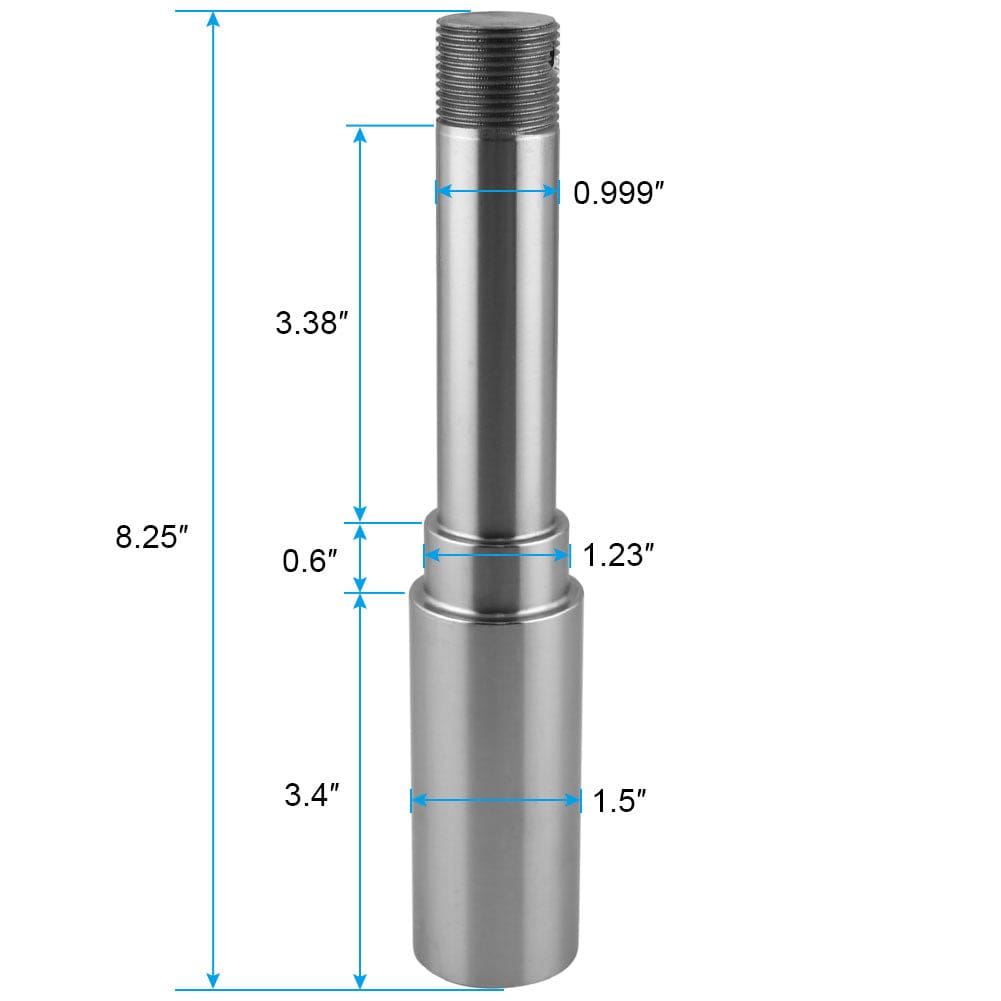

Axle Shaft Dia: 1-1/2"" Steps down to 1"" at Bearings
Axle Shaft Overall Length: 8-1/4""
Hub Stud Length: 1-3/16""
Stud Size: 7/16""
Hub Dia: 5-1/2""

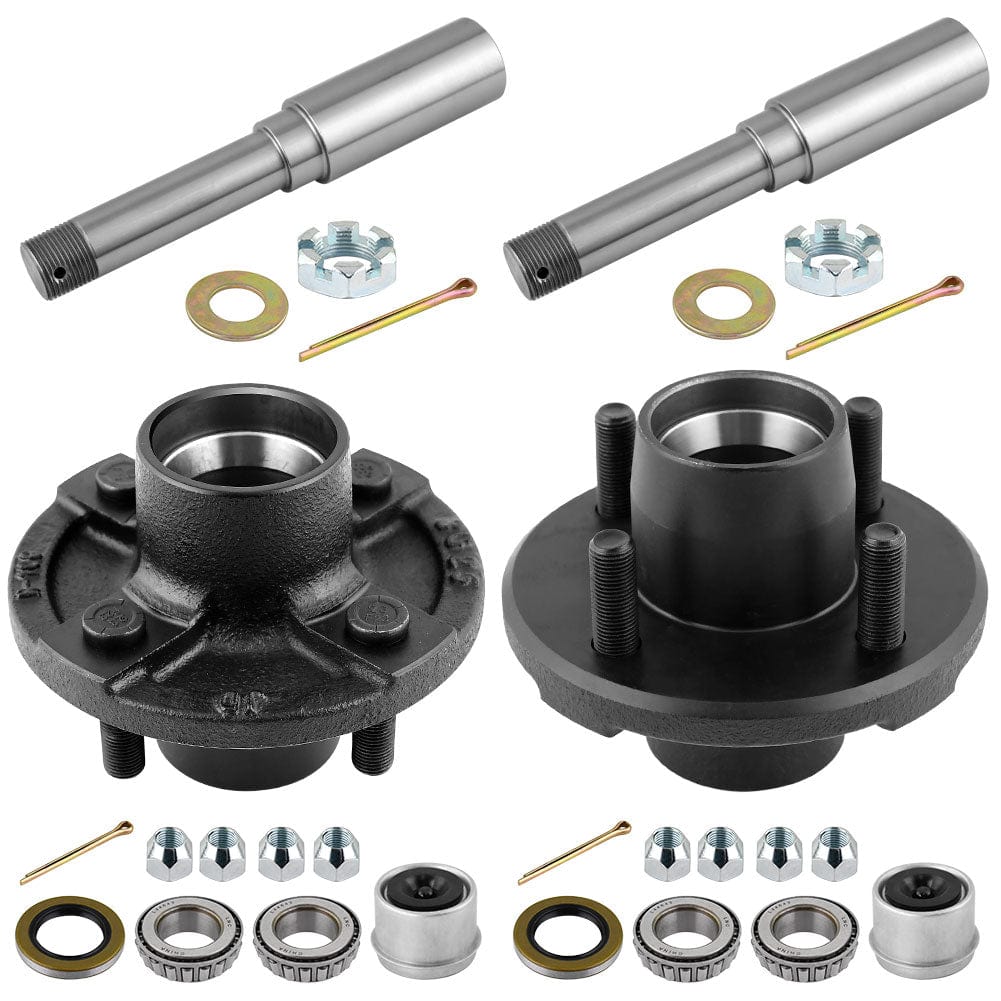

Kit Contents: 2-Idler Hub Kits w/Hardware

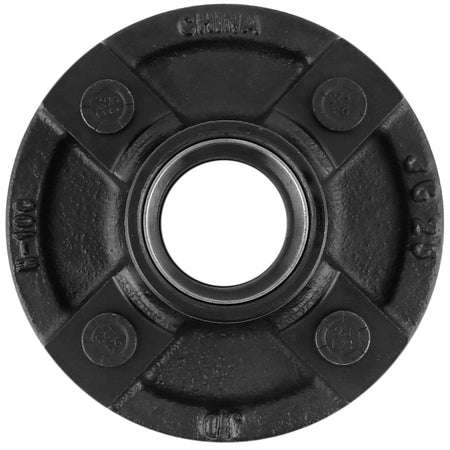

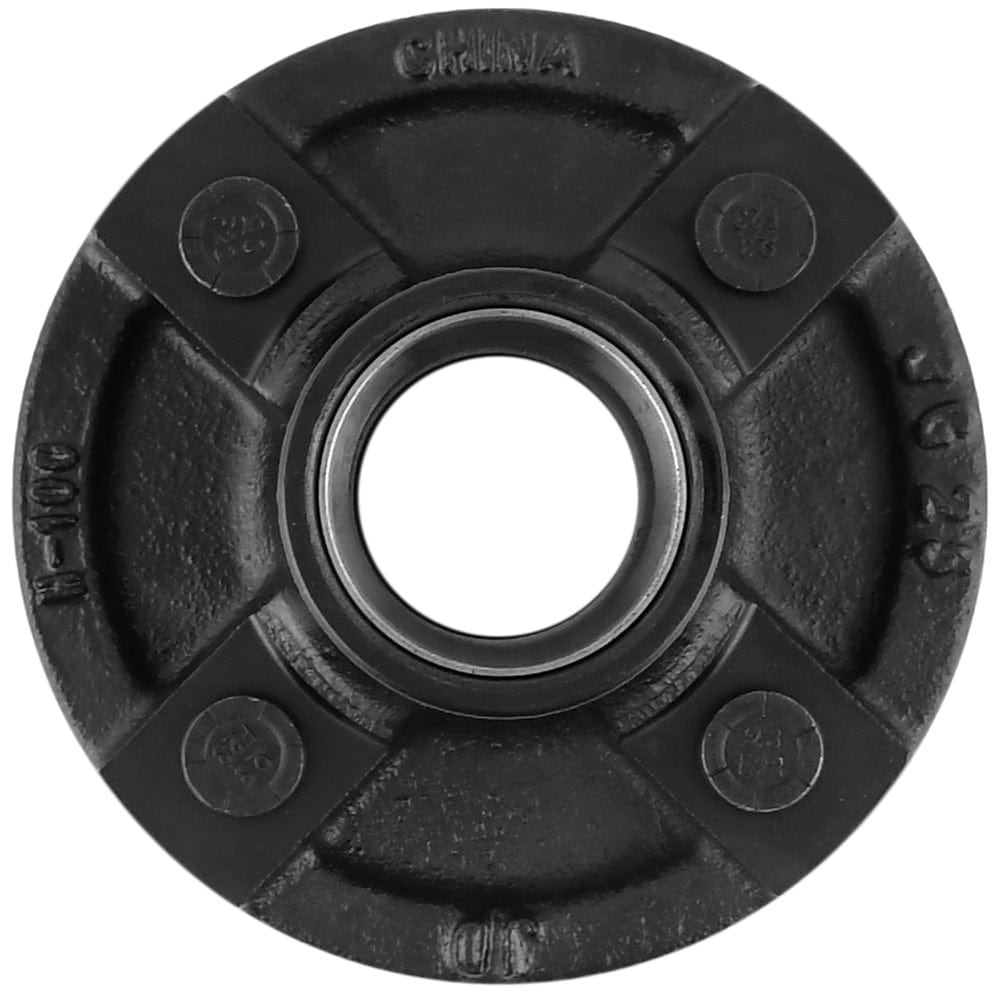

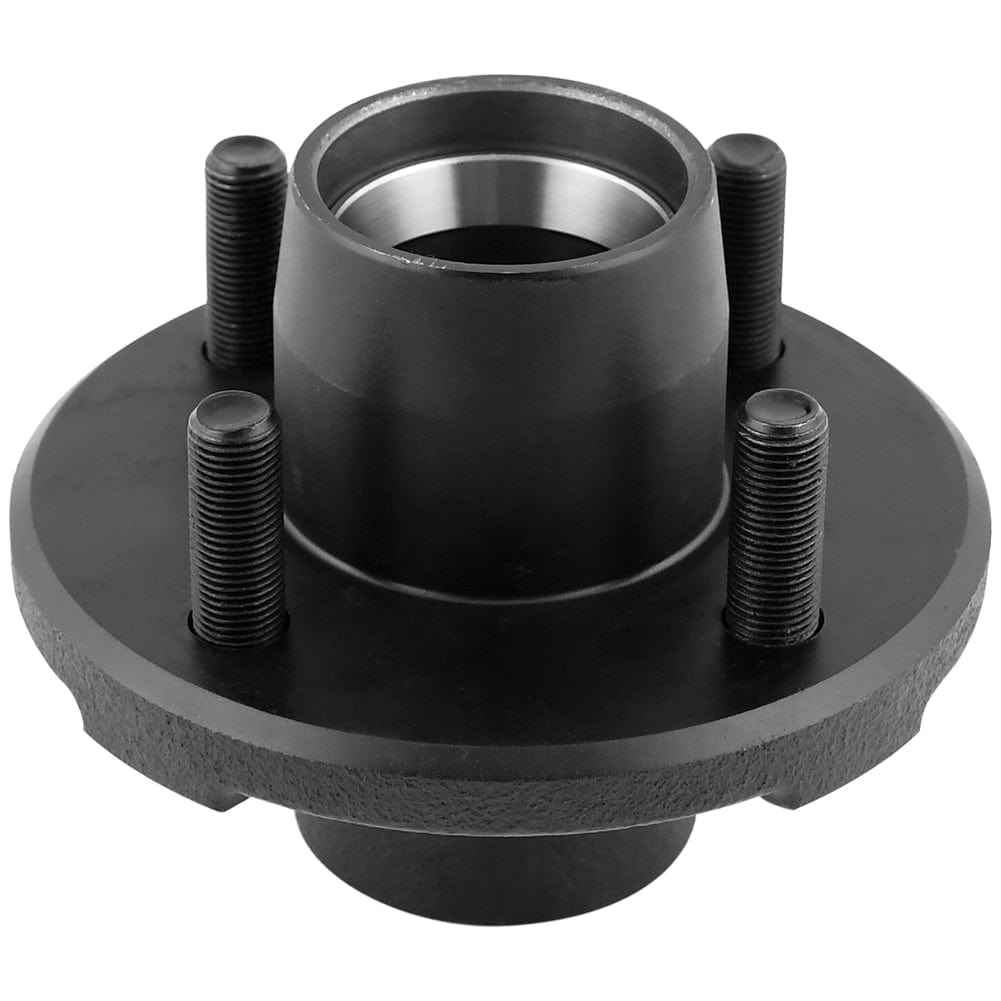

2 x 4-4"" Trailer Hub

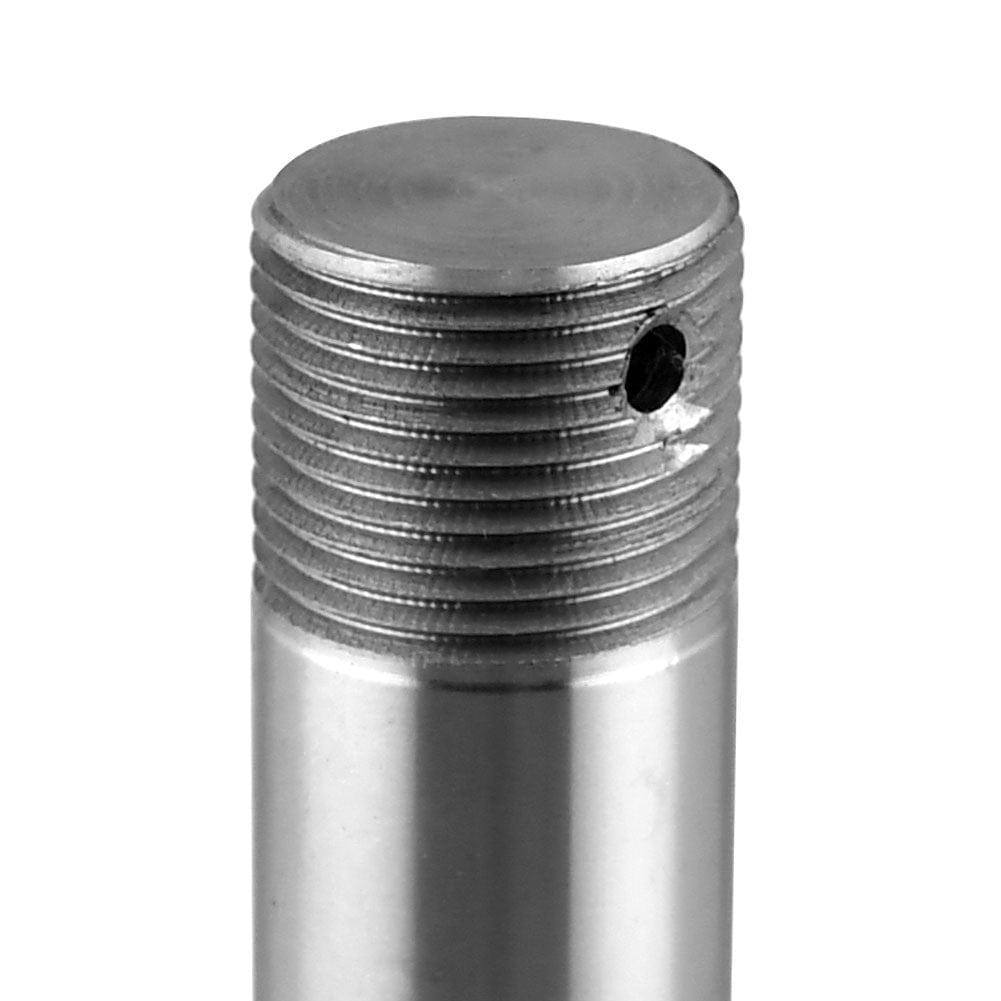

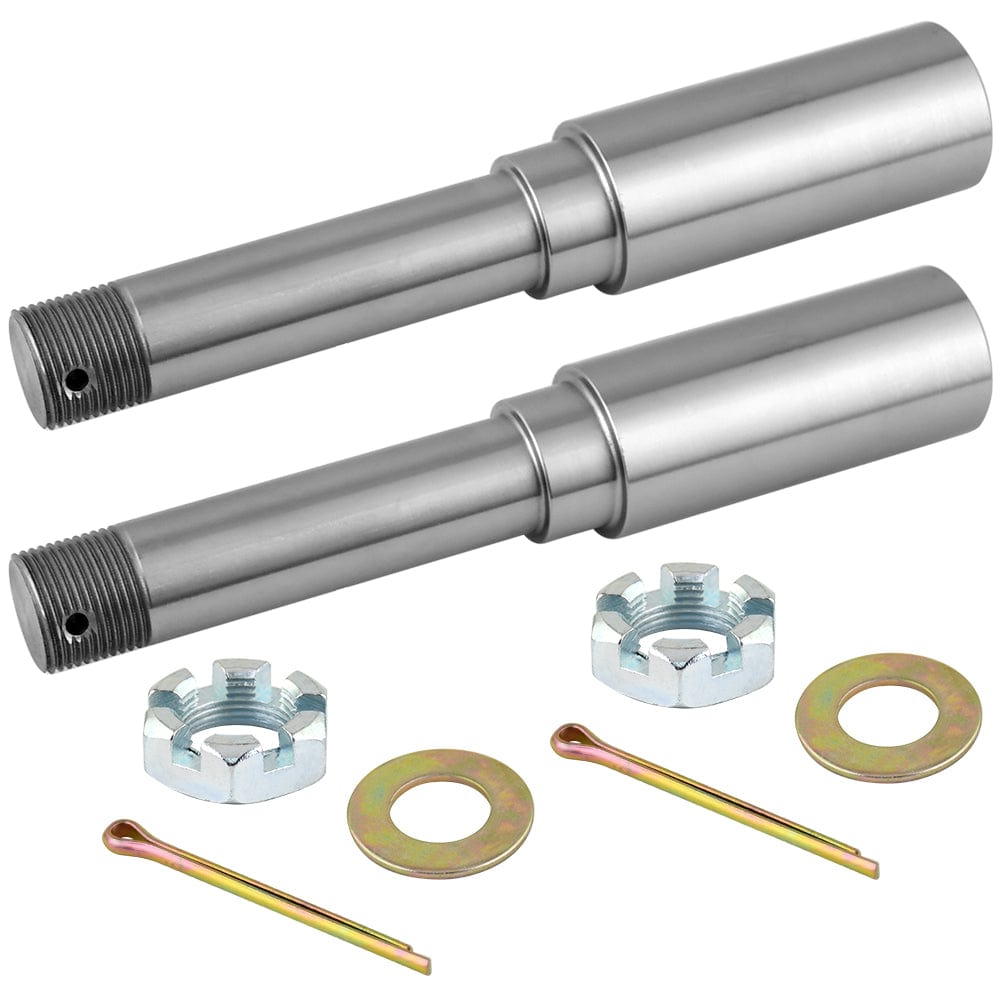

2 x 1"" Trailer Spindle
4 x L44643 Bearings

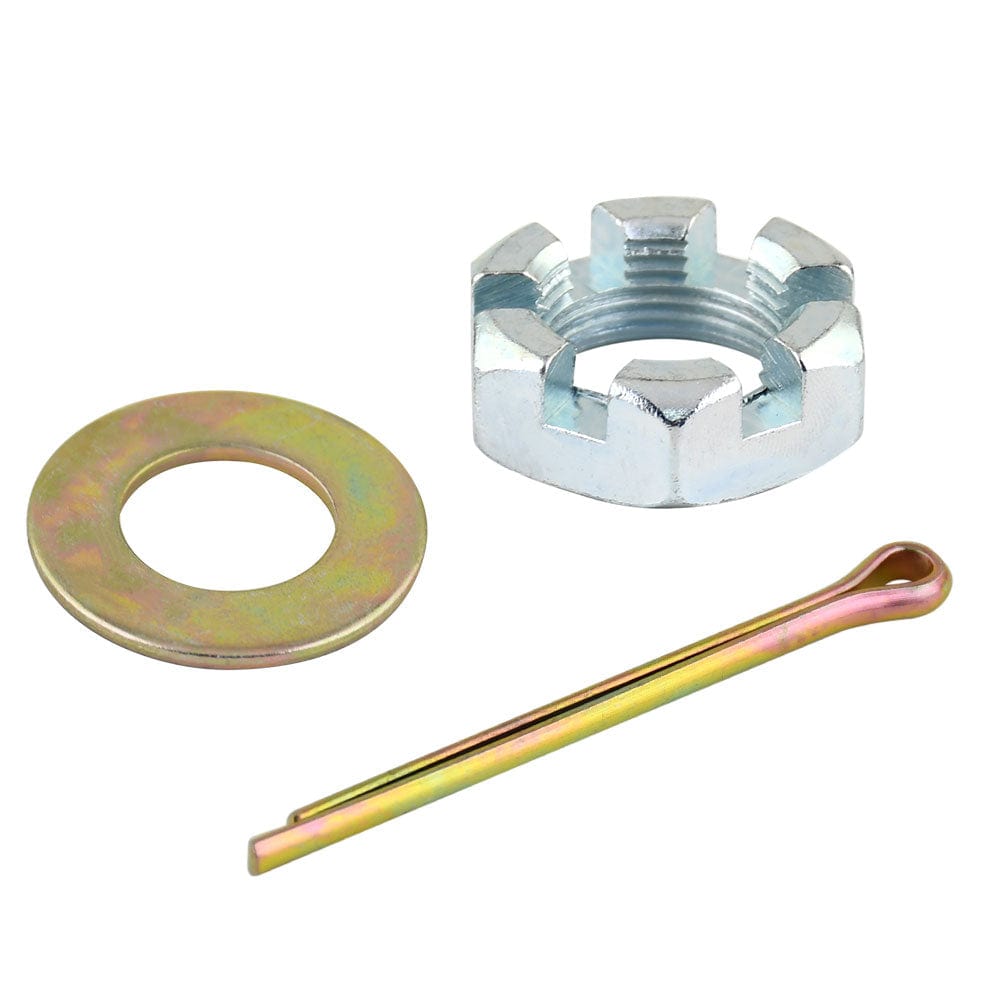

2 x 1/8"" x 1 3/4"" Cotter Pin
2 x 1"" Spindle Nut & Washer
2 x 1.987 O.D - 1.249 I.D grease seal
2 x 1.98"" Dust cap
8 x 1/2"" 60 Degree Cone Style Lug nut"
